Chimei Kibilac® PW-997S ASA

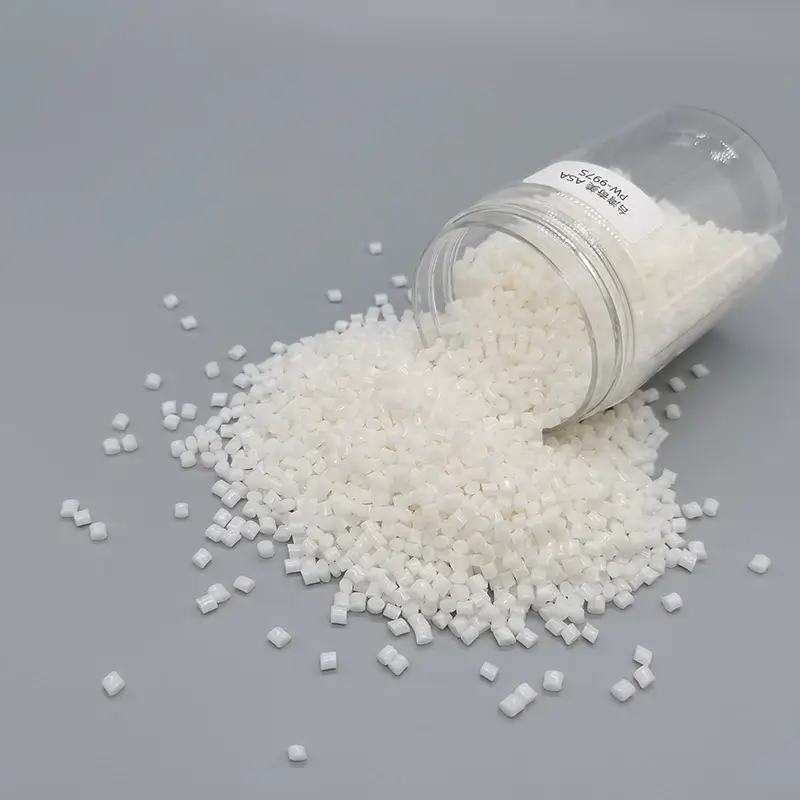

Plastic Granules
Kibilac® PW-997S Extrusion Grade Good Compatibility with PVC
Kibilac® PW-997S ASA is an extrusion-grade resin. It works well for making sheets, car parts, and outdoor items. This plastic is tough and can handle sun and water. It’s easy to work with and mixes nicely with PVC.
Download PDF
ISO TDS
ASTM TDS
MSDS
UL Product iQ
REACH SVHC
Process Guide
Typical property data
Physical Properties
- Melt Flow Index: 4 ml/10 min (ISO 1133, 220°C × 10 kg)
- Mass Density: 1.07 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength (Yield): 47 MPa (ISO 527, 50 mm/min)
- Tensile Strength (Break): 34 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 25% (ISO 527, 50 mm/min)
- Flexural Strength: 65 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 2.1 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength (23°C, Notched): 20 KJ/m² (ISO 180/1A)
- Izod Impact Strength (-30°C, Notched): 9 KJ/m² (ISO 180/1A)
- Charpy Impact Strength (23°C, Notched): 20.5 KJ/m² (ISO 179)
- Charpy Impact Strength (-30°C, Notched): 10 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature (1 kg): 105°C (ISO 306, 50°C/hr)
- Vicat Softening Temperature (5 kg): 94°C (ISO 306, 50°C/hr)
- Heat Distortion Temperature (1.8 MPa, Unannealed): 78°C (ISO 75/A)
- Heat Distortion Temperature (1.8 MPa, Annealed): 96°C (ISO 75/A)
- Coefficient of Linear Thermal Expansion: 9.3×10−59.3 \times 10^{-5} (ISO 11359)
Flammability
- UL-94 Flammability Rating: HB (1.5 mm thickness)
Mold Shrinkage
- 0.4%–0.7% (ISO 294-4)
Use & Applications
- Extrusion sheet
- Automotive parts
- Building parts
- Outdoor application
Features & Benefits
Durable Material Performance
Kibilac PW-997S offers excellent strength with 47 MPa tensile strength and 65 MPa flexural strength. It stays tough in both warm and cold conditions.
Perfect for Outdoor Applications
This ASA resin has special protection against UV rays and water. It handles outdoor conditions well and keeps its properties in different weather.
Easy Processing and Versatility
The resin flows smoothly during extrusion with a 4 ml/10min melt flow rate. It works especially well with PVC and comes in handy 25kg bags.
