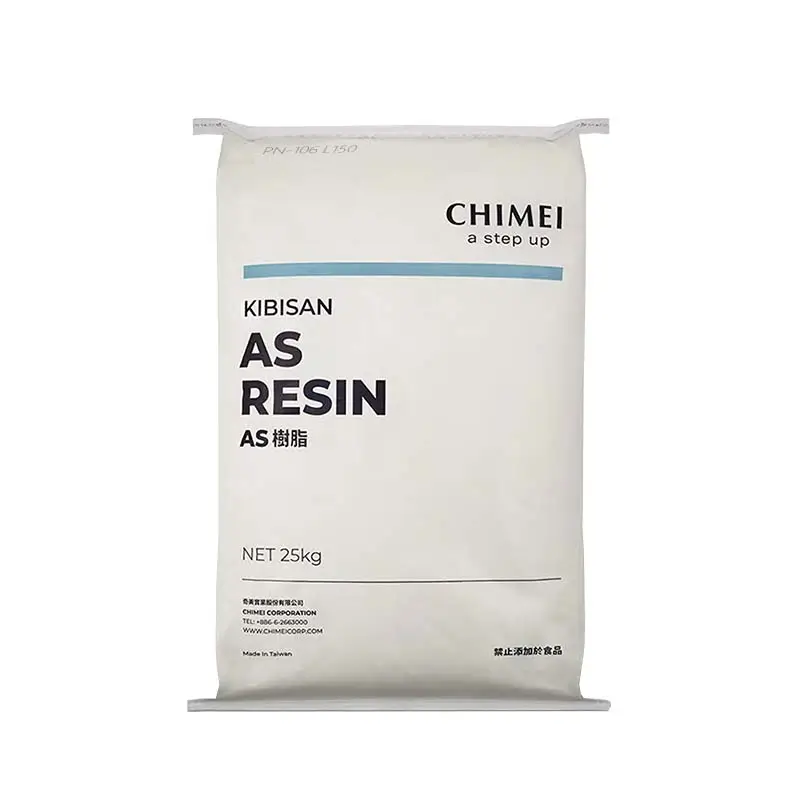

Chimei Kibisan® PN-106 L150 SAN

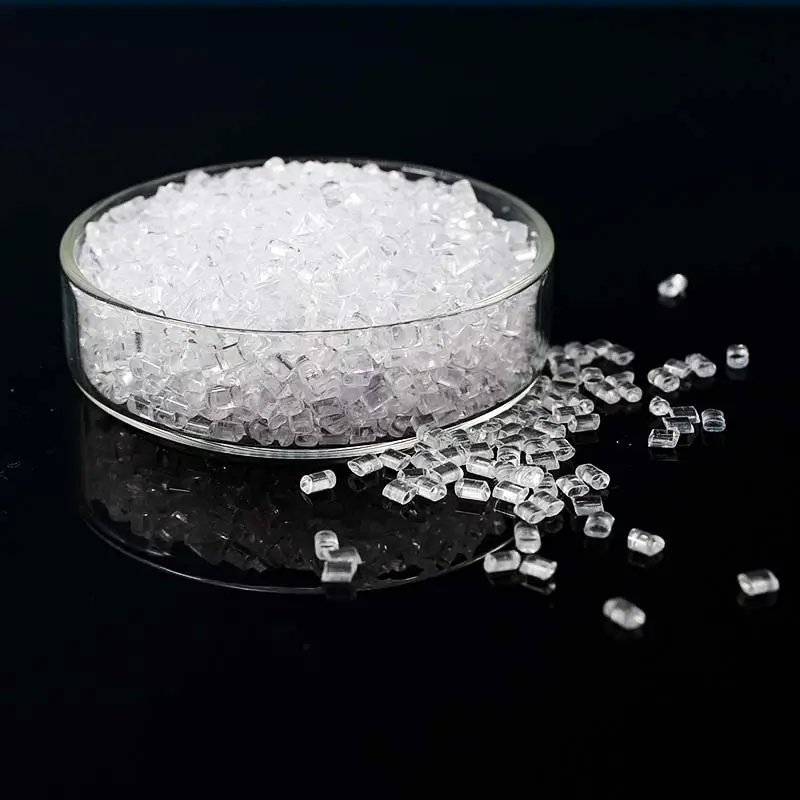

Plastic Granules
Kibisan® PN-106 L150 General Purpose Grade
The KIBISAN PN-106 L150 is a high-transparency, chemical-resistant SAN resin engineered for durability and precision. It can balance clarity, strength, and resistance to harsh environments. Ideal for industrial applications like medical devices, food packaging, and automotive components.
Typical property data
Physical Properties
Mass Density: 1.06 g/cm³ (ISO 1183, 23 °C)
Mechanical Properties
- Tensile Strength:
- Yield: 65 MPa (ISO 527, 50 mm/min)
- Break: 65 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 3% (ISO 527, 50 mm/min)
- Flexural Strength: 89 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 2.6 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength:
- 23 °C, Notched: 2 kJ/m² (ISO 180/1A)
- Charpy Impact Strength:
- 23 °C, Notched: 2 kJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 50 °C/hr, 1 kg: 104 °C (ISO 306)
- 50 °C/hr, 5 kg: 101 °C (ISO 306)
- Heat Distortion Temperature (HDT):
- 1.8 MPa, Unannealed: 88 °C (ISO 75/A)
- 1.8 MPa, Annealed: 99 °C (ISO 75/A)
- Coefficient of Linear Thermal Expansion: 3.6~3.8 × 10⁻⁵ (ISO 11359)
Flammability
- UL Rating: HB at 1.5 mm (UL 94)
Mold Shrinkage
Shrinkage Range: 0.2~0.7% (ISO 294-4)
Features & Benefits
Exceptional Chemical Resistance
Exceptional Chemical Resistance
High Clarity & Rigidity
It delivers glass-like transparency (mass density: 1.06 g/cm³) for applications like food containers or cosmetic packaging where aesthetics matter.
Heat & Stress Resilience
It withstands temperatures up to 104°C (Vicat softening) and tensile strength of 65 MPa, ensuring durability in automotive parts or industrial housings.
Use & Applications
- Medical Devices: Syringe barrels, IV connectors (resists sterilization chemicals).
- Food Packaging: Transparent containers, lids (safe for direct food contact).
- Automotive: Dashboard components, light covers (durable under heat and vibration).
- Consumer Goods: Cosmetic casings, household tools (scratch-resistant and visually appealing).
