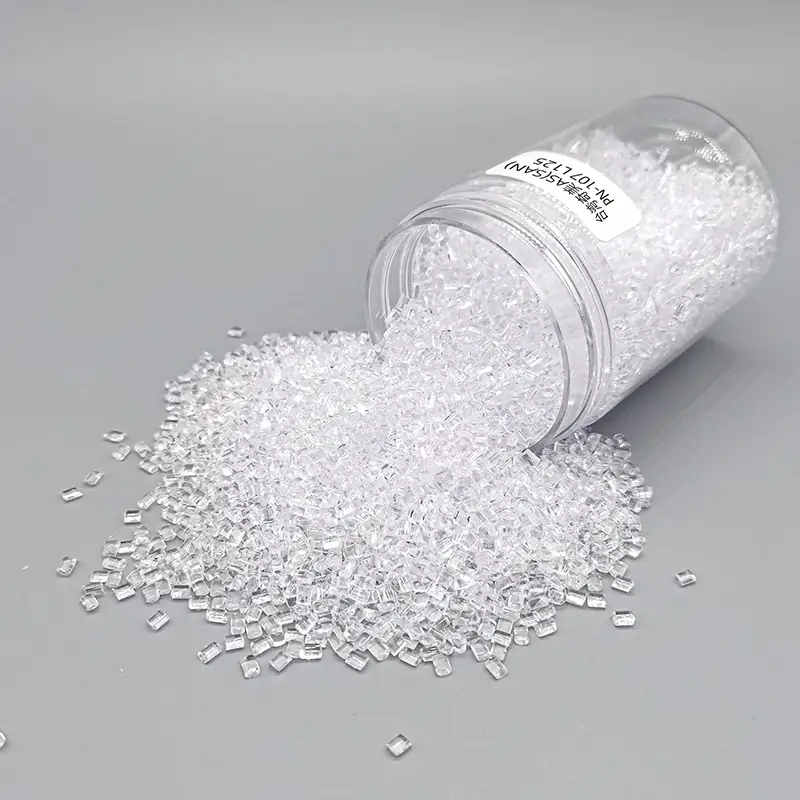

Chimei Kibisan® PN-107 L125 SAN
Plastic Granules
Kibisan® PN-107 L125 General Purpose Grade
Kibisan PN-107 L125 SAN Resin is a high-flow, crystal-clear plastic. Its smooth flow speeds up production, saving time and costs, while the glass-like transparency lets products shine on shelves. Lightweight yet tough, it resists cracks, heat (up to 90°C), and yellowing. Perfect for food containers, sealed cans, and cosmetic boxes.
Associated Documents
ISO TDS
ASTM TDS
MSDS
UL Product iQ
REACH SVHC
Process Guide
Typical property data
Physical Properties
- Melt Flow Index: 58 ml/10 min (ISO 1133, 220℃ × 10 kg)
- Mass Density: 1.06 g/cm³ (ISO 1183, 23℃)
Mechanical Properties
- Tensile Strength (Yield): 65 MPa (ISO 527, 50 mm/min)
- Tensile Strength (Break): 65 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 3% (ISO 527, 50 mm/min)
- Flexural Strength: 89 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 2.6 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength (Notched, 23℃): 2 KJ/m² (ISO 180/1A)
- Charpy Impact Strength (Notched, 23℃): 2 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 104℃ (ISO 306, 50℃/hr, 1 kg)
- 101℃ (ISO 306, 50℃/hr, 5 kg)
- Heat Distortion Temperature:
- 88℃ (ISO 75/A, 1.8 MPa, unannealed)
- 99℃ (ISO 75/A, 1.8 MPa, annealed)
- Coefficient of Linear Thermal Expansion: 3.6∼3.8×10−53.6 \sim 3.8 \times 10^{-5} (ISO 11359)
Flammability
UL-94 Rating: HB (1.5 mm thickness)
Mold Shrinkage
Shrinkage: 0.2% ~ 0.7% (ISO 294-4)
Features & Benefits
High Flowability for Faster Molding
Kibisan PN-107 L125 (Chimei SAN PN 107 L125) flows smoothly into molds, cutting production time and waste.
Clear Transparency for Premium Looks
This resin offers glass-like clarity and resists yellowing over time, keeping products fresh and visually appealing.
Durable & Heat-Resistant Design
Built tough, it handles heat (up to 90°C) and impacts. Perfect for sealed cans and items needing everyday durability without added weight.
Use & Applications
- Food containers
- Sealed cans
- Cosmetic boxes
