Chimei Polylac® PA-757 AB

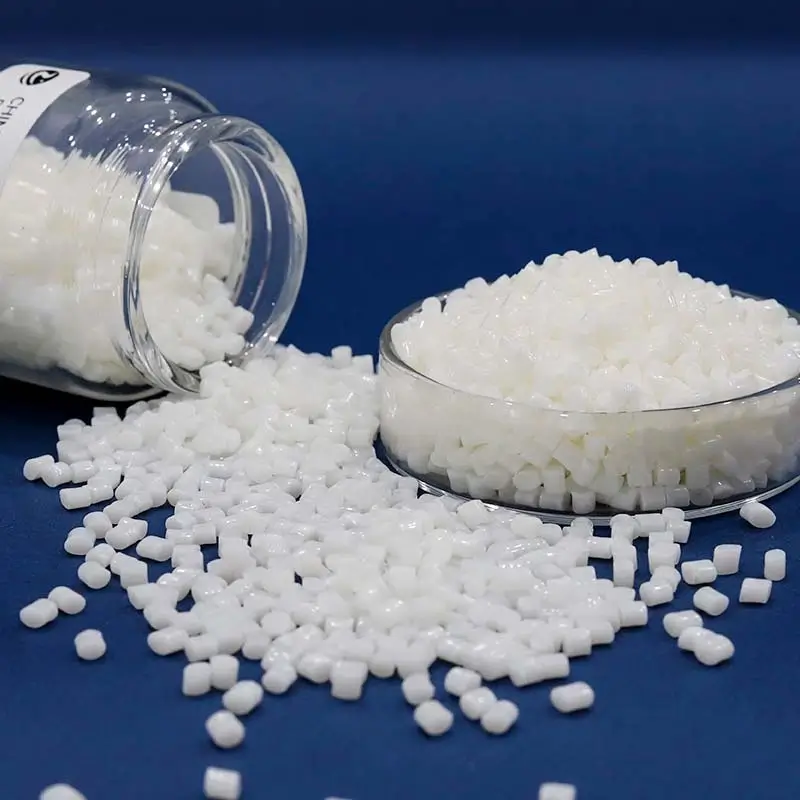

Plastic Granules
Polylac® PA-757 AB High Flow Medium Impact ABS Resin
Polylac PA-757 AB is a high-gloss ABS resin with built-in antimicrobial protection, ideal for hygiene-focused products like kitchenware, medical devices, and home appliances. It offers medium impact strength, heat resistance up to 104°C, and easy molding with low shrinkage. Certified UL 94 HB for flammability and PLC 2 for electrical safety.
Associated Documents
ISO TDS
MSDS
UL Product iQ
REACH SVHC
Process Guide
Typical property data
Physical Properties
- Melt Flow Index: 19 ml/10 min (ISO 1133; 220℃ × 10KG)
- Mass Density: 1.05 g/cm³ (ISO 1183; 23℃)
Mechanical Properties
- Tensile Strength (Yield): 45 MPa (ISO 527; 50 mm/min)
- Tensile Strength (Break): 34 MPa (ISO 527; 50 mm/min)
- Tensile Elongation: 40% (ISO 527; 50 mm/min)
- Flexural Strength: 76 MPa (ISO 178; 2 mm/min)
- Flexural Modulus: 2.2 GPa (ISO 178; 2 mm/min)
- Izod Impact Strength:
- 23℃, Notched: 17 KJ/m² (ISO 180/1A)
- -30℃, Notched: 8 KJ/m² (ISO 180/1A)
- Charpy Impact Strength:
- 23℃, Notched: 17 KJ/m² (ISO 179)
- -30℃, Notched: 8 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 50℃/hr; 1KG: 104℃ (ISO 306)
- 50℃/hr; 5KG: 100℃ (ISO 306)
- Heat Distortion Temperature:
- 1.8 MPa, Unannealed: 83℃ (ISO 75/A)
- 1.8 MPa, Annealed: 98℃ (ISO 75/A)
- Coefficient of Linear Thermal Expansion: 8.6×10−58.6 \times 10^{-5} (ISO 11359)
Flammability
UL-94 Rating: HB (1.5 mm)
Mold Shrinkage
Range: 0.4–0.7% (ISO 294-4)
Features & Benefits
Built-In Antimicrobial Protection
Chimei PA-757 AB fights bacteria growth, passing ISO 22196 and GB/T 31402-2015 standards. Ideal for medical tools, food containers, and surfaces needing hygiene—no extra coatings required.
Balanced Strength & Heat Resistance
Offers medium impact (17 KJ/m² at 23°C) and withstands heat up to 104°C. Perfect for appliances, outdoor gear, and parts exposed to temperature swings.
Easy Molding, Safe Performance
Low mold shrinkage (0.4–0.7%) ensures precise shaping. UL 94 HB flammability and CTI PLC 2 ratings guarantee safety for electronics and household goods.
Use & Applications
- Daily necessities
- Home appliances
- Building materials
- Medical related equipment
- Food contact items
