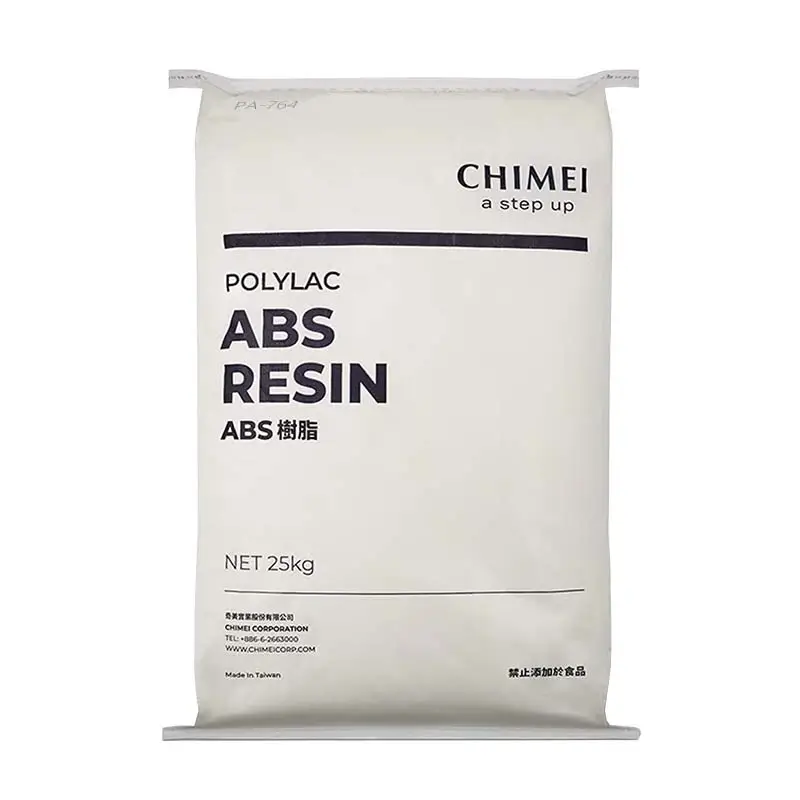

Chimei Polylac® PA-764 ABS

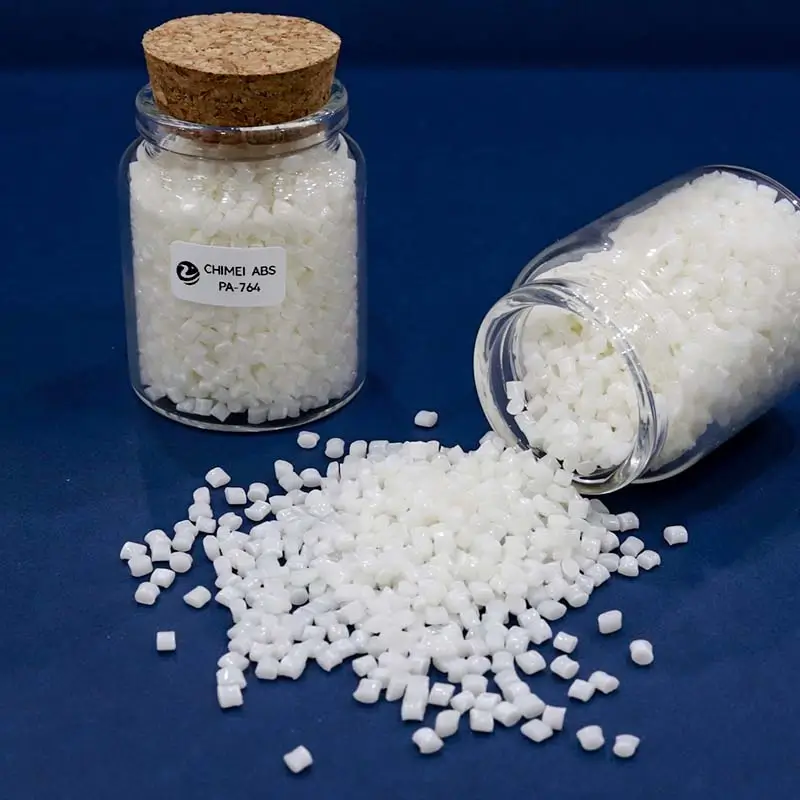

Plastic Granules
Polylac® PA-764 Flame Weather Resistant Grade
Polylac PA-764 is a flame-retardant, weather-resistant plastic. It meets strict fire safety standards, perfect for electronics, car batteries, or power panels. With heat resistance up to 101°C and high impact strength (13 KJ/m²), it stays tough in heat or outdoor conditions.
Download PDF
ISO TDS
ASTM TDS
MSDS
RoHS
SVHC
UL Product iQ
Processing Data
Typical property data
Physical Properties
- Melt Flow Index: 28 ml/10 min (ISO 1133, 220°C × 10 kg)
- Mass Density: 1.19 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength:
- Yield: 36 MPa (ISO 527, 50 mm/min)
- Break: 27 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 15% (ISO 527, 50 mm/min)
- Flexural Strength: 55 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 1.7 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength (Notched):
- At 23°C: 13 kJ/m² (ISO 180/1A)
- At -30°C: 7 kJ/m² (ISO 180/1A)
- Charpy Impact Strength (Notched):
- At 23°C: 13 kJ/m² (ISO 179)
- At -30°C: 7 kJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 50°C/hr, 1 kg: 101°C (ISO 306)
- 50°C/hr, 5 kg: 90°C (ISO 306)
- Heat Distortion Temperature:
- Unannealed (1.8 MPa): 82°C (ISO 75/A)
- Annealed (1.8 MPa): 92°C (ISO 75/A)
- Coefficient of Linear Thermal Expansion: 8.46×10−58.46 \times 10^{-5} (ISO 11359)
Flammability
- UL-94 Rating: 1.5 mm: V-0, 5VB; 2.5 mm: 5VA
Mold Shrinkage
- Range: 0.3–0.6% (ISO 294-4)
Process Guide
- Pre-Drying: 80–85°C for 2–4 hours (based on humidity, reground resin ratio, and storage conditions)
- Barrel Temperature Settings:
- Maximum: 220°C
- Minimum: 190°C
- Mold Temperature: 40–70°C (depending on thickness, dimensions, and gate/runner system)
- Injection Pressure: 50–80%
- Holding Pressure: 20–50%
- Back Pressure: 5–10 kg/cm²
- Injection Speed: Slow to moderate
- Cushion Zone: ~1/8 inch after injection for dimensional consistency
Features & Benefits
Superior Flame Retardant Protection
Polylac PA-764 meets strict 1.5mm V-0, 5VB, and 2.5mm 5VA fire safety standards. It stops flames quickly, ideal for electronics, power outlets, and car battery housings needing reliable safety.
High Heat & Impact Resistance
Withstands heat up to 101°C and offers 13 KJ/m² impact strength. Perfect for outdoor gear, coffee machines, or car parts that face tough conditions without cracking.
Easy Molding, Precise Results
Smooth flow (28 ml/10 min) and low shrinkage (0.3–0.6%) ensure easy shaping of thin, complex parts like TV frames or printer casings.
Use & Applications
Displays, machine boxes, modems, power panels, power outlets, car batteries, cash register shells, printer casings, remote control, light boxes, fax machines, projectors, large-scale multifunctional peripherals, coffee machine, front and rear TV frames, DVD players, car audio consoles
PA-764 Related Flame Retardant Grades
| Type | Grade No. | Manufacturer | Brand | Grade/Features | Use/Applications |
|---|---|---|---|---|---|
| Flame Retardant ABS | PA-764B | Chimei | POLYLAC® | FR + weather resistant; 2.5mm V-0 / 5VB, 3.0mm 5VA; MFI 26; Vicat 102°C; HDT 93°C; Izod 14; elongation 15% | TV frames; printer casings; power outlets; outdoor appliance housings; car audio consoles |
| Flame Retardant ABS | PA-764G | Chimei | POLYLAC® | Thin-wall FR; 0.75mm V-2, 1.0mm V-0, 2.5mm 5VA; MFI 34; Vicat 101°C; density 1.22 | Printer casings; modems; projectors; car audio consoles; power outlets |
| Flame Retardant ABS | PA-763 | Chimei | POLYLAC® | High-impact FR; 1.5mm V-0, 2.5mm 5VA; MFI 25; Vicat 103°C; Izod 22; cold-tough | Machine boxes; printer casings; power outlets; outdoor displays; coffee machines |
