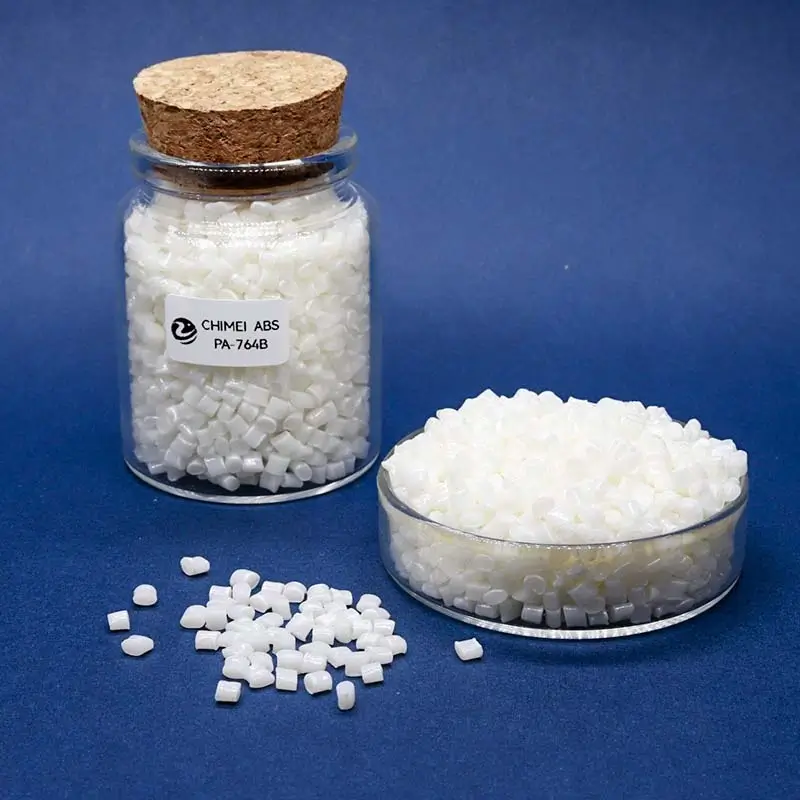

Chimei Polylac® PA-764B ABS
Plastic Granules
Polylac® PA-764B Flame Retardant Grade
CHIMEI POLYLAC® PA-764B is a flame-retardant ABS resin. With UL 94 certifications (2.5mm V-0, 5VB; 3.0mm 5VA), it excels in heat resistance (HDT up to 93°C) and impact strength, ideal for electrical enclosures, automotive components, and appliances. Weather-resistant and UL-compliant, it balances performance with regulatory compliance.
Download PDF
ISO TDS
ASTM TDS
MSDS
UL Product iQ
Processing Data
Typical property data
Physical Properties
- Melt Flow Index: 26 ml/10 min (ISO 1133, 220°C × 10 kg)
- Mass Density: 1.16 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength:
- Yield: 37 MPa (ISO 527, 50 mm/min)
- Break: 29 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 15% (ISO 527, 50 mm/min)
- Flexural Strength: 57 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 1.8 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength:
- 23°C: 14 kJ/m² (ISO 180/1A, Notched)
- -30°C: 7 kJ/m² (ISO 180/1A, Notched)
- Charpy Impact Strength:
- 23°C: 14 kJ/m² (ISO 179, Notched)
- -30°C: 7 kJ/m² (ISO 179, Notched)
Thermal Properties
- Vicat Softening Temperature:
- 50°C/hr, 1 kg: 102°C (ISO 306)
- 50°C/hr, 5 kg: 90°C (ISO 306)
- Heat Distortion Temperature:
- Unannealed: 83°C (ISO 75/A, 1.8 MPa)
- Annealed: 93°C (ISO 75/A, 1.8 MPa)
- Coefficient of Linear Thermal Expansion: 8.63×10−58.63 \times 10^{-5} (ISO 11359)
Flammability
- Flame Rating:
- 2.5 mm: V-0 (UL-94)
- 2.5 mm: 5VB (UL-94)
- 3.0 mm: 5VA (UL-94)
Mold Shrinkage
- Shrinkage Range: 0.3% ~ 0.6% (ISO 294-4)
Process Guide
- Pre-Drying: 80 ~ 85°C for 2 ~ 4 hours
- Barrel Temperature Profile:
- Max: 220°C (Nozzle), 220°C (Middle), 210°C (Feed)
- Min: 190°C (Nozzle), 190°C (Middle), 180°C (Feed)
- Mold Temperature: 40 ~ 70°C
- Injection Pressure: 50 ~ 80%
- Holding Pressure: 20 ~ 50%
- Back Pressure: 5 ~ 10 kg/cm²
- Injection Speed: Slow to moderate fill speeds recommended
- Cushion Zone: Approximately 1/8 inch after injection
Use & Applications
- Electronics: Modems, power outlets, remote controls, DVD players.
- Industrial Equipment: Machine boxes, cash register shells, projectors.
- Automotive: Car battery housings, audio consoles.
- Appliances: Coffee machines, front/rear TV frames, light boxes.
- Office Tech: Printer casings, fax machines, multifunctional peripherals.
Features & Benefits
Superior Flame Retardancy
POLYLAC PA-764B meets stringent UL 94 V-0, 5VB, and 5VA standards, ensuring fire safety in thin-walled applications like power panels or electronics housings.
Robust Mechanical Durability
With tensile strength up to 37 MPa and impact resistance (14 KJ/m² at 23°C), it withstands drops, vibrations, and daily wear. Perfect for printer casings, car audio consoles, or industrial equipment.
Reliable Heat Resistance
Vicat softening temperature of 102°C and HDT up to 93°C ensure stability in high-heat environments, such as coffee machines or automotive battery housings. Minimizes warping and deformation.
PA-764B Related Flame Retardant Grades
| Type | Grade No. | Manufacturer | Brand | Grade/Features | Use/Applications |
|---|---|---|---|---|---|
| Flame Retardant ABS | PA-764 | Chimei | POLYLAC® | FR + weather resistant; 1.5mm V-0 / 5VB, 2.5mm 5VA; MFI 28; Vicat 101°C; Izod 13 | Car batteries; power panels; TV frames; printer casings; coffee machines |
| Flame Retardant ABS | PA-764G | Chimei | POLYLAC® | Thin-wall FR; 0.75mm V-2, 1.0mm V-0, 2.5mm 5VA; MFI 34; Vicat 101°C; density 1.22 | Printer casings; modems; projectors; car audio consoles; power outlets |
| Flame Retardant ABS | PA-765B | Chimei | POLYLAC® | Medium-impact FR; 1.5mm V-2, 2.5mm V-0 / 5VB, 3.0mm 5VA; MFI 44; Vicat 94°C; Izod 24 | TV frames; printer casings; power panels; car audio consoles; modems |
