Chimei Polylac® PA-765 ABS

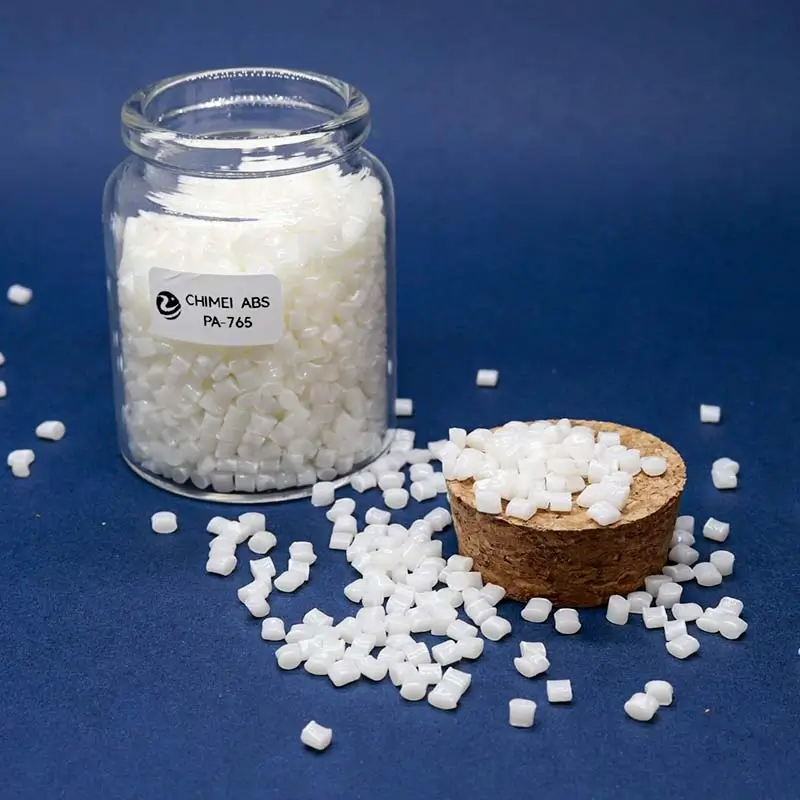

Plastic Granules
Polylac® PA-765 Flame Retardant High Flow
Chimei Polylac PA-765 ABS Resin is a high-flow, flame-retardant material perfect for thin, precise parts. It meets strict safety standards, ideal for electronics, power panels, car batteries, and appliances.
Download PDF
ISO TDS
ASTM TDS
MSDS
RoHS
SVHC
UL Product iQ
Processing Data
Typical property data
Physical Properties
- Melt Flow Index: 58 ml/10 min (ISO 1133, 220°C × 10 kg)
- Mass Density: 1.19 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength (Yield): 38 MPa (ISO 527, 50 mm/min)
- Tensile Strength (Break): 29 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 10% (ISO 527, 50 mm/min)
- Flexural Strength: 55 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 1.8 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength (Notched, 23°C): 21 KJ/m² (ISO 180/1A)
- Izod Impact Strength (Notched, -30°C): 9 KJ/m² (ISO 180/1A)
- Charpy Impact Strength (Notched, 23°C): 22 KJ/m² (ISO 179)
- Charpy Impact Strength (Notched, -30°C): 10 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 91°C (ISO 306, 50°C/hr; 1 kg)
- 78°C (ISO 306, 50°C/hr; 5 kg)
- Heat Distortion Temperature:
- 74°C (ISO 75/A, 1.8 MPa, unannealed)
- 83°C (ISO 75/A, 1.8 MPa, annealed)
- Coefficient of Linear Thermal Expansion: 8.39×10−58.39 \times 10^{-5} (ISO 11359)
Flammability
- Ratings (UL-94):
- 1.0 mm: V-1
- 1.5 mm: V-0, 5VB
- 2.5 mm: 5VA
Mold Shrinkage
- Shrinkage: 0.3%–0.6% (ISO 294-4)
Process Guide
- Pre-drying: 80–85°C for 2–4 hours (based on humidity, regrind ratio, and storage conditions)
- Barrel Temperature Settings:
- Max: 220°C (Front), 220°C (Middle), 210°C (Rear)
- Min: 190°C (Front), 190°C (Middle), 180°C (Rear)
- Mold Temperature: 40–70°C (based on thickness, dimensions, and gate/runner system)
- Injection Pressure: 50%–80%
- Holding Pressure: 20%–50%
- Back Pressure: 5–10 kg/cm²
- Injection Speed: Slow to moderate
- Cushion Zone: Approx. 1/8 inch after injection
Use & Applications
Displays, machine boxes, modems, power panels, power outlets, car batteries, cash register shells, printer casings, remote control, light boxes, fax machines, projectors, large-scale multifunctional peripherals, coffee machine, front and rear TV frames, DVD players, car audio consoles
Features & Benefits
High Flowability for Faster Molding
PA-765 ABS flows smoothly (58 ml/10min melt index), filling thin or complex molds quickly. This cuts production time, reduces defects, and saves material costs.
Top Fire Safety Ratings
Meets UL94 V-0 (1.5mm), 5VB, and 5VA (2.5mm) standards. Ideal for electronics, power outlets, and appliances needing reliable flame resistance without extra additives.
Tough in Heat and Impact
Withstands 91°C heat (Vicat) and 21 kJ/m² impact strength. Perfect for car interiors, coffee machines, and printer casings that face daily wear and temperature swings.
PA-765 Related Flame Retardant Grades
| Type | Grade No. | Manufacturer | Brand | Grade/Features | Use/Applications |
|---|---|---|---|---|---|
| Flame Retardant ABS | PA-765A | Chimei | POLYLAC® | High-flow FR; 1.5mm V-1, 2.1mm V-0 / 5VB, 2.5mm 5VA; MFI 48; Vicat 93°C; Izod 22 | Printer casings; TV frames; remote controls; coffee machines; car batteries |
| Flame Retardant ABS | PA-765B | Chimei | POLYLAC® | Medium-impact FR; 1.5mm V-2, 2.5mm V-0 / 5VB, 3.0mm 5VA; MFI 44; Vicat 94°C; Izod 24 | TV frames; printer casings; power panels; car audio consoles; modems |
| Flame Retardant ABS | PA-763H | Chimei | POLYLAC® | High-flow FR + light stability; 1.5mm V-0 / 5VB, 2.5mm 5VA; MFI 47; Vicat 102°C | Printer casings; power outlets; car audio consoles; TV frames; outdoor light boxes |
