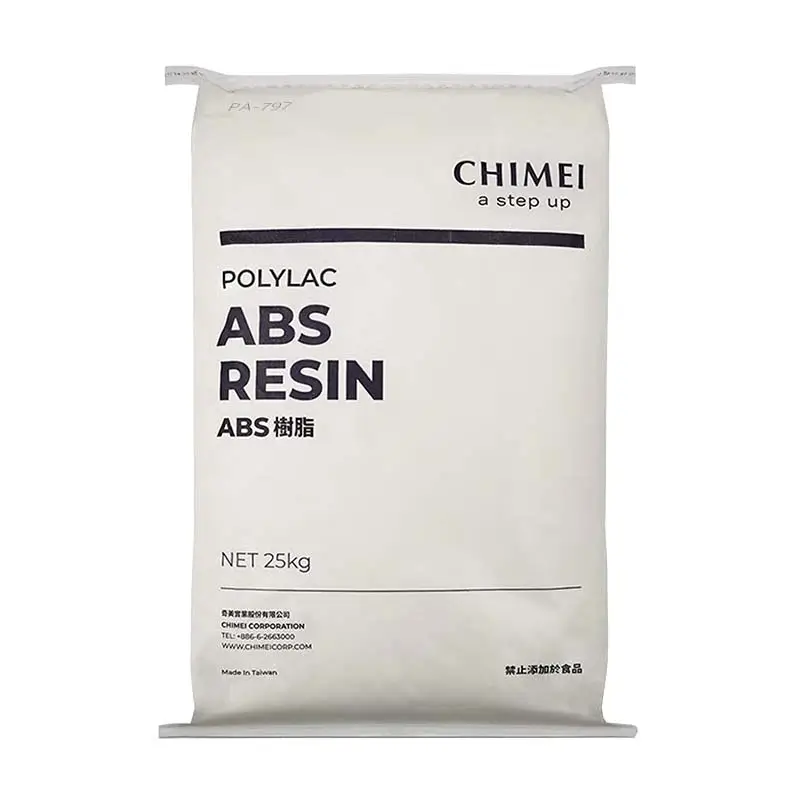

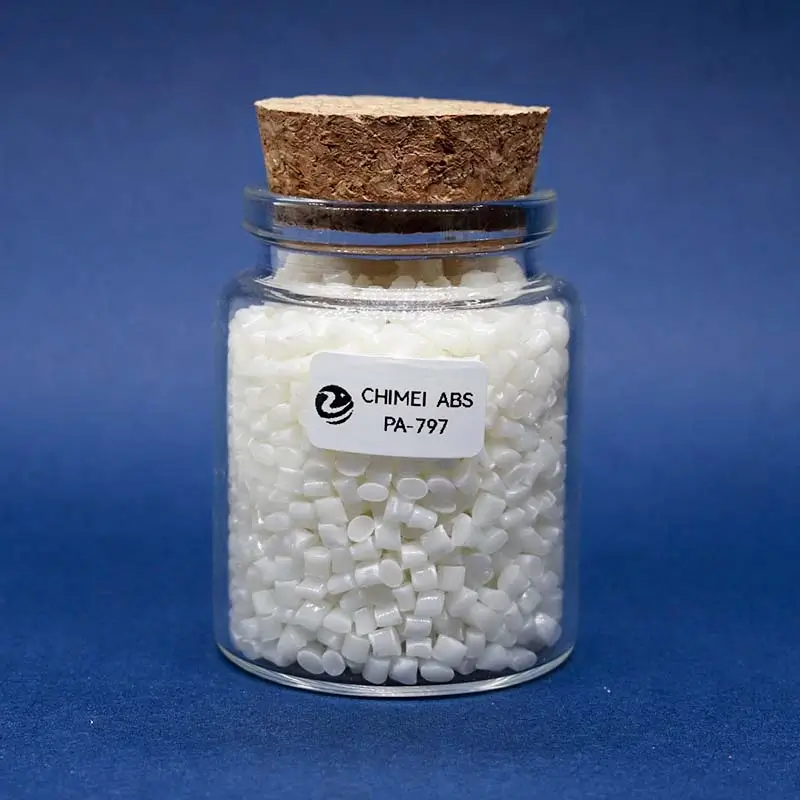

Chimei Polylac® PA-797 ABS
Plastic Granules
Polylac® PA-797 Chemical Resistance Grade High Impact
Chimei POLYLAC PA-797 is a high-performance CHIMEI POLYLAC® ABS resin engineered for chemical endurance and high impact resistance. Ideal for demanding applications, this material combines durability with versatility, making it a reliable choice for kitchen appliances, industrial components, and household products that face harsh environments.
Associated Documents
ISO TDS
ASTM TDS
MSDS
UL Product iQ
Processing Data
Typical property data
Physical Properties
- Melt Flow Index (MFI): 9.2 ml/10 min (ISO 1133, 220℃ × 10 kg)
- Mass Density: 1.05 g/cm³ (ISO 1183, 23℃)
Mechanical Properties
- Tensile Strength (Yield): 43 MPa (ISO 527, 50 mm/min)
- Tensile Strength (Break): 33 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 30% (ISO 527, 50 mm/min)
- Flexural Strength: 51 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 1.1 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength (23℃, Notched): 35 KJ/m² (ISO 180/1A)
- Charpy Impact Strength (23℃, Notched): 35.5 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature: 105℃ (ISO 306, 50℃/hr, 1 kg) / 95℃ (ISO 306, 50℃/hr, 5 kg)
- Heat Distortion Temperature: 80℃ (ISO 75/A, 1.8 MPa, unannealed) / 99℃ (ISO 75/A, 1.8 MPa, annealed)
- Coefficient of Linear Thermal Expansion: 8.8×10−58.8 \times 10^{-5} (ISO 11359)
Flammability
Flammability Rating: HB (UL-94, 1.5 mm)
Mold Shrinkage
Shrinkage: 0.4–0.7% (ISO 294-4)
Process Guide
- Pre-drying Conditions: 80–85℃ for 2–4 hours (depending on humidity, reground resin ratio, and storage conditions)
- Barrel Temperature Profile:
- Max: 230℃
- Min: 180℃
- Mold Temperature: 30–70℃ (depends on thickness, dimensions, and gate/runner system)
Features & Benefits
Superior Chemical Resistance
POLYLAC PA-797 excels in environments exposed to oils, detergents, and cleaning agents. Its chemical endurance ABS formulation prevents degradation, ensuring long-lasting performance for dishwasher components or kitchenware.
Unmatched Impact Strength
With 35 KJ/m² Izod Impact Strength (23°C), this Chimei PA-797 resin withstands drops, shocks, and rough handling. Perfect for appliance housings or tool handles that demand toughness.
Reliable Thermal Stability
It maintains structural integrity up to 105°C Vicat Softening Temperature, ideal for parts near heat sources like microwave panels or coffee maker housings.
Use & Applications
- Blender and Mixer Housings – Withstands impacts and resists grease/oil splatter.
- Refrigerator Interior Parts – Endures repeated exposure to cleaning chemicals.
- Small Appliance Panels – Retains shape under heat (e.g., toasters, air fryers).
- Dishwasher Components – Resists steam and detergent corrosion.
