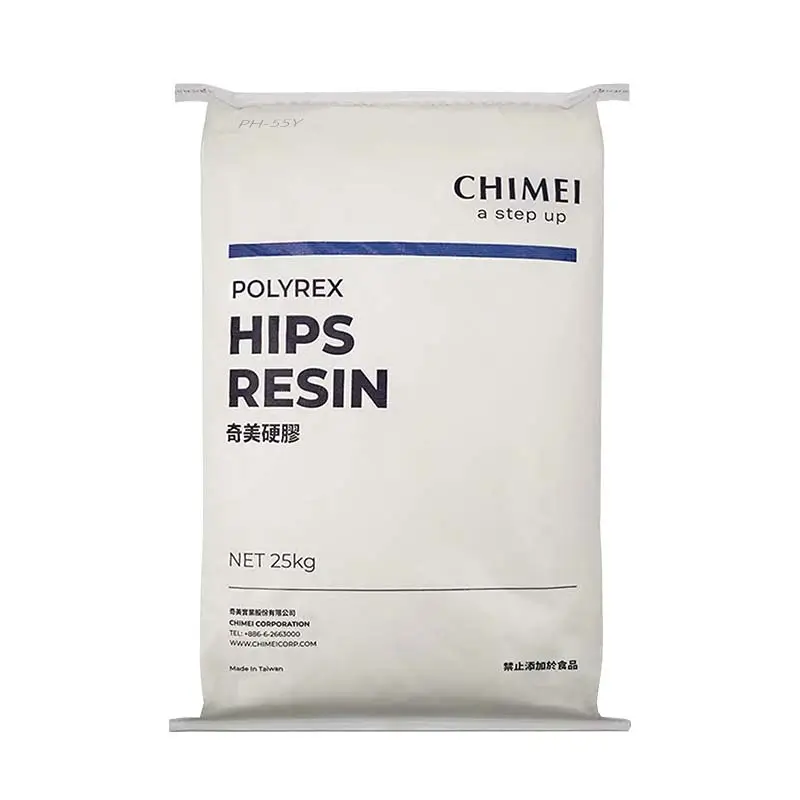

ChiMei Polyrex® PH-55Y HIPS

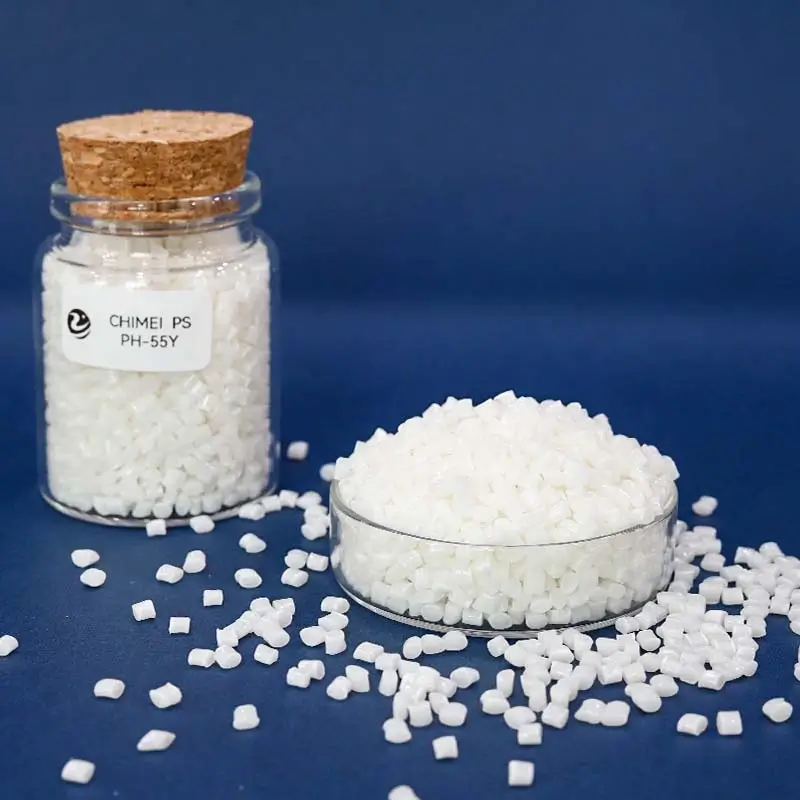

Plastic Granules
POLYREX® PH-55Y PS Extrusion Grade
Chimei POLYREX PH-55Y is a high-impact polystyrene (HIPS) resin engineered for durability and compliance. Perfect for food containers, toys, and consumer goods, this polyrex® ps grade combines toughness with ease of processing, making it a top choice for manufacturers prioritizing safety and efficiency.
Associated Documents
ISO TDS
ASTM TDS
UL Product iQ
Processing Data
Typical property data
Physical Properties
- Melt Flow Index: 9 ml/10 min (ISO 1133, 200℃ × 5KG)
- Mass Density: 1.05 g/cm³ (ISO 1183, 23℃)
Mechanical Properties
- Tensile Strength:
- 27 MPa (Yield, ISO 527, 50 mm/min)
- 25 MPa (Break, ISO 527, 50 mm/min)
- Tensile Elongation: 45% (ISO 527, 50 mm/min)
- Flexural Strength: 38 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 1.3 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength:
- 7 KJ/m² (ISO 180/1A, Notched, 23℃)
- 3 KJ/m² (ISO 180/1A, Notched, -30℃)
- Charpy Impact Strength:
- 6 KJ/m² (ISO 179, Notched, 23℃)
- 3.6 KJ/m² (ISO 179, Notched, -30℃)
Thermal Properties
- Vicat Softening Temperature:
- 94℃ (ISO 306, 50℃/hr, 1KG)
- 87℃ (ISO 306, 50℃/hr, 5KG)
- Heat Distortion Temperature:
- 74℃ (ISO 75/A, 1.8 MPa, unannealed)
- 87℃ (ISO 75/A, 1.8 MPa, annealed)
- Coefficient of Linear Thermal Expansion: 4~6 × 10⁻⁵ (ISO 11359)
Flammability
UL-94 Rating: 1.5mm HB
Mold Shrinkage
Range: 0.4–0.7% (ISO 294-4)
Process Guide
- Pre-drying Conditions: 80°C for 2–3 hours (depending on humidity, reground resin ratio, and storage conditions).
- Barrel Temperature Profile:
- Max: 220°C (Nozzle), 205°C (Middle), 180°C (Feed Zone)
- Min: 180°C (Nozzle), 195°C (Middle), 160°C (Feed Zone)
- Mold Temperature: 40–70°C (depending on thickness, dimensions, gate, and runner system).
Features & Benefits
Superior Flow for Complex Molds
With a melt flow index of 16 ml/10 min (230°C, 3.8kg), ACRYREX CM-211 PMMA fills intricate molds effortlessly, reducing cycle times and minimizing defects in thin-walled or detailed components like appliance housings.
Robust Strength for Durable Parts
Boasting 65 MPa tensile strength and 95 MPa flexural strength, this PMMA acryrex CM-211 resists cracking and deformation, ensuring long-lasting performance in high-stress applications such as transparent covers or kitchen utensils.
Heat Resistance for Stable Performance
A Vicat softening temperature of 103°C (1kg) allows PMMA CM-211 to withstand repeated exposure to heat, making it ideal for dishwasher-safe items or components near heat sources in appliances.
Use & Applications
- Food Containers & Lids: Replace brittle plastics with food HIPS resin for leak-proof, microwavable trays that meet strict FDA standards.
- Toys & Electronics: Use POLYREX PH-55Y for shock-resistant toy casings or piano keys that endure heavy use without cracking.
- low-Molded Bottles: Achieve uniform wall thickness in beverage containers while reducing material waste.
