Chimei WONDERLITE® PC-115

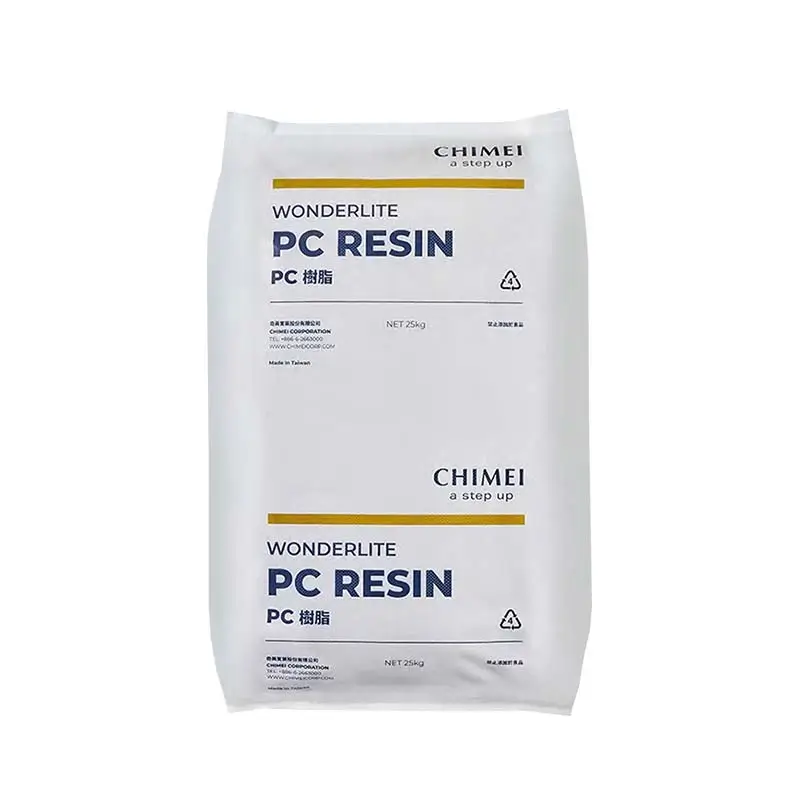

WONDERLITE® PC-115 Flame Retardant Grade Low Viscosity
Wonderlite PC-115, a low-viscosity Chimei polycarbonate resin, offers exceptional flow for precise injection molding. Ideal for industries needing durable, transparent parts, it simplifies production while ensuring strength and clarity in every application.

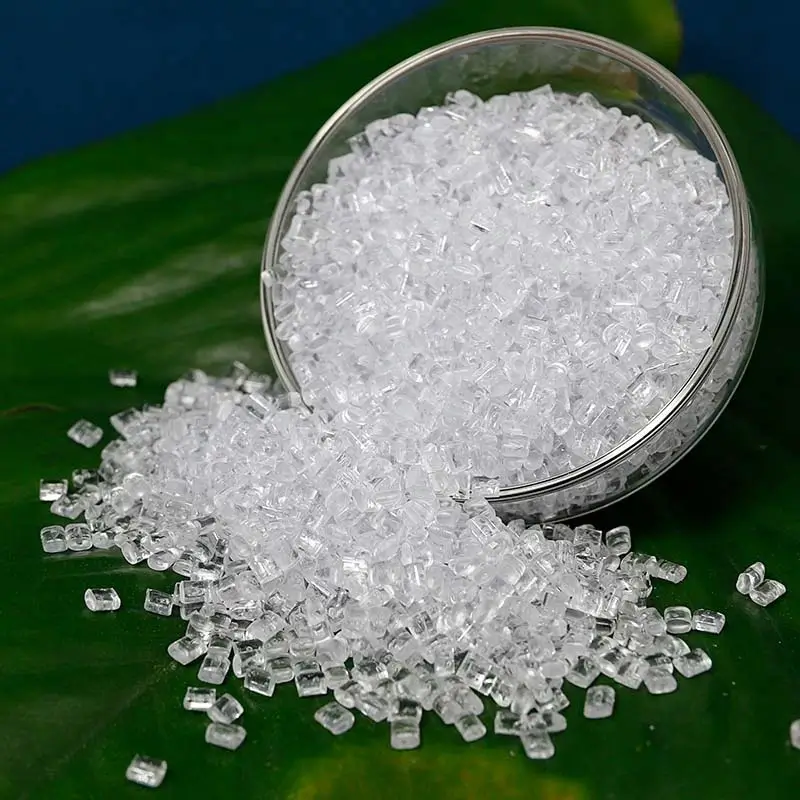

Plastic Granules
Download PDF
ISO TDS
UL Product iQ
ASTM TDS
Process Guide
Typical property data
Physical Properties
- Melt Flow Index: 15 ml/10 min (ISO 1133, 300°C × 1.2 kg)
- Mass Density: 1.2 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength:
- 64 MPa (Yield, ISO 527, 50 mm/min)
- 70 MPa (Break, ISO 527, 50 mm/min)
- Tensile Elongation: 120% (ISO 527, 50 mm/min)
- Flexural Strength: 90 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 2.4 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength:
- 70 KJ/m² (23°C, Notched, 1/8″, ISO 180/1A)
- Not specified for -30°C
- Charpy Impact Strength:
- 70 KJ/m² (23°C, Notched, ISO 179)
- Not specified for -30°C
Flammability
- Rating: V-2 (UL-94, 2.5 mm)
Thermal Properties
- Vicat Softening Temperature:
- 150°C (50°C/hr, 1 kg, ISO 306)
- 145°C (50°C/hr, 5 kg, ISO 306)
- Heat Distortion Temperature (HDT):
- 128°C (1.8 MPa, unannealed, ISO 75/A)
- 143°C (1.8 MPa, annealed, ISO 75/A)
- Coefficient of Linear Thermal Expansion: 6.0–8.0 × 10⁻⁵ (ISO 11359)
Mold Shrinkage
- Range: 0.5–0.7% (ISO 294-4)
Process Guide
- Pre-drying: 120°C × 4 hours (depending on humidity, storage conditions, and dryer performance)
- Barrel Temperature Profile:
- Nozzle: 250–300°C
- Compression Zone: 250–310°C
- Feeding Zone: 230–300°C
- Mold Temperature: 70–120°C (varies based on thickness, cooling system, and gate/runner design).
Use & Applications
- General injection molding for stationery
- External pen tubing
- Toys
- Transparent molded products
Features & Benefits
Superior Flow for Precision Molding
The PC-115 plastic material boasts low viscosity, making it a dream for injection molding. It flows effortlessly into complex molds, cutting production time and reducing defects—perfect for engineers aiming for flawless, intricate parts like pen casings or toy components.
Toughness That Lasts
Its high tensile strength (up to 70 MPa) and impact resistance (70 KJ/m²) mean your products withstand rough handling—think sturdy stationery or toys that survive a child’s playtime without cracking.
Crystal-Clear Transparency
Wonderlite PC-115 delivers stunning clarity for transparent applications. Whether it’s sleek external pen tubing or eye-catching molded displays, this resin ensures a premium finish that procurement managers love for boosting product appeal without extra effort.
FAQs
Yes. PC-115 is a genuine Chimei WONDERLITE® grade. UL Product iQ File No. E56070 lists CHI MEI CORPORATION. We provide original Chimei documents and batch COA.
Yes. RoHS report EKR24C00591M03 shows Chlorine, Bromine, Iodine and Fluorine all below reporting limits. Chimei environmental statement confirms no intentional halogen addition.
UL Product iQ File No. E56070 for PC-115(+): 0.4 mm V-2, 1.5 mm V-2, 2.5–2.8 mm V-2, 3.0 mm HB. ISO TDS lists 2.5 mm V-2. Color: ALL.
Yes. Each shipment includes batch-specific COA with MFR, density, tensile, impact, color, moisture.
Not stated in ISO TDS or UL Yellow Card. Please confirm with us if outdoor use is required.
Low viscosity general PC for stationery, external pen tubing, toys, transparent molded products.
Samples 1–5 kg available. Please provide application, color, wall thickness.
Related Flame-Retardant PC Grades
Disclaimer: The grades below are potential alternatives for comparison only. They are not direct drop-in replacements. UL ratings are color- and thickness-dependent. Typical values are not specifications. All property data is from Chimei ISO TDS unless otherwise stated. Please verify current UL Product iQ status, request TDS/SDS/COA and test samples before substitution.
| Grade / Manufacturer | UL94 (ISO TDS) | MFR / MVR | HDT | Notched Impact | Color | UV / UL 746C f1 |
|---|---|---|---|---|---|---|
| PC-6600 Chi Mei Baseline, 1.0mm V-0, opaque, non-halogen flame retardant | 1.0mm V-0; 2.0mm 5VB; 3.0mm 5VA | 10 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Opaque | Not stated |
| PC-6600 J01 Chi Mei Same grade, standard black | 1.0mm V-0; 2.0mm 5VB; 3.0mm 5VA | 10 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Black | Not stated |
| PC-616LS Chi Mei 1.0mm V-0, low smoke density | 1.0mm V-0; 2.0mm 5VB; 3.0mm 5VA | 10 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Opaque | UL 746C f1 |
| PC-6610 Chi Mei 1.5mm V-0, opaque, UV stabilized | 1.5mm V-0; 3.0mm 5VA | 10 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Opaque | UV stabilized, UL 746C f1 |
| PC-6710 Chi Mei 3.0mm V-0, transparent, UV stabilized | 3.0mm V-0 | 10 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Transparent | UV stabilized, UL 746C f1 |
| PC-681U Chi Mei 1.5mm V-0, opaque, low-temp impact, UV stabilized | 1.5mm V-0; 3.0mm 5VA | 10 ml/10min | 125 / 140°C | 60 / 45 kJ/m² | Opaque | UV stabilized, UL 746C f1 |
| PC-6600C Zhenjiang Chi Mei 1.5mm V-0, opaque, weather & low-temp resistant | 1.5mm V-0 | 9 cm³/10min | 125 / 134°C | 55 / 30 kJ/m² | Opaque | UV stabilized, UL 746C f1 |
| PC-6700 Chi Mei 2.5mm V-0, transparent, medium viscosity | 2.5mm V-0 | 10 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Transparent | Not stated |
| PC-6710NF Chi Mei 3.0mm V-0, transparent, PFAS-Free (Provisional) | 3.0mm V-0 | 10 ml/10min | 125 / 140°C | 60 / Not available in ISO TDS | Transparent | Not stated |
| PC-6715NF Chi Mei 1.5mm V-0, transparent, PFAS-Free (Provisional) | 1.5mm V-0 | 5 ml/10min | 125°C (unannealed) | 60 / Not available in ISO TDS | Transparent | Not stated |
| PC-6715VT Chi Mei 1.5mm V-0, transparent, UV stabilized, UL 746C f1 | 1.5mm V-0 | 6 ml/10min | 125 / 140°C | 60 / 15 kJ/m² | Transparent | UV stabilized, UL 746C f1 |
Substitution checklist: Before replacing any grade, verify UL94 at the same wall thickness, UL-listed color, halogen-free declaration, MFR/MVR, HDT, notched impact, UV/UL 746C f1 and processing window.
