Chimei WONDERLITE® PC-115L
WONDERLITE PC-115L SAE Grade Automotive Head Lamp Use

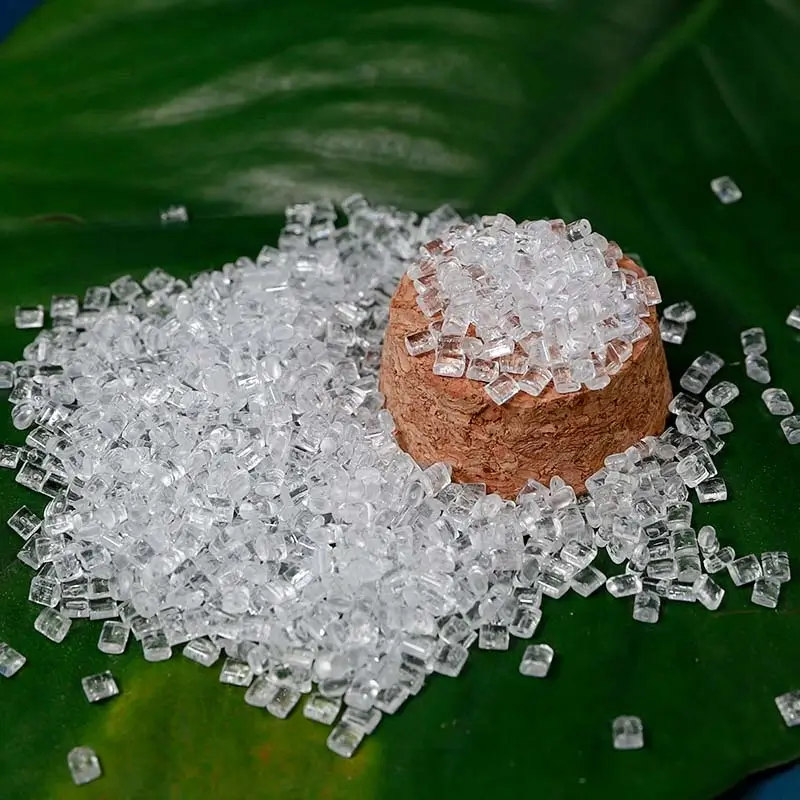

Wonderlite PC-115L is a UV-stabilized polycarbonate resin engineered for automotive lighting. Combining exceptional impact resistance (65 KJ/m²) and thermal stability (HDT up to 142°C), it complies with AMECA (SAEJ576) and ECE-R112 standards, ensuring reliability in demanding environments. Ideal for high-performance headlamps.
Typical property data
Physical Properties
- Melt Flow Index: 17.5 ml/10 min (ISO 1133, 300°C × 1.2 kg)
- Mass Density: 1.2 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength (Yield): 64 MPa (ISO 527, 50 mm/min)
- Tensile Strength (Break): 70 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 120% (ISO 527, 50 mm/min)
- Flexural Strength: 90 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 2.4 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength (23°C, Notched): 65 KJ/m² (ISO 180/1A, 1/8″)
- Charpy Impact Strength (23°C, Notched): 65 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 148°C (ISO 306, 50°C/hr; 1 kg)
- 143°C (ISO 306, 50°C/hr; 5 kg)
- Heat Distortion Temperature:
- 127°C (ISO 75/A, 1.8 MPa, unannealed)
- 142°C (ISO 75/A, 1.8 MPa, annealed)
- Coefficient of Linear Thermal Expansion: 6.0∼8.0×10−56.0 \sim 8.0 \times 10^{-5} (ISO 11359)
Flammability
UL-94 Rating: V-2 (1.5 mm)
Mold Shrinkage
Shrinkage: 0.5 ~ 0.7% (ISO 294-4)
Process Guide
- Pre-drying: 120°C × 4 hours (dependent on humidity, storage conditions, and dryer performance)
- Barrel Temperature Settings:
- Nozzle: 250 – 300°C
- Compression Zone: 250 – 310°C
- Feeding Zone: 230 – 300°C
- Mold Temperature: 70 – 120°C (varies with article thickness, cooling system design, and gate/runner system)
Features & Benefits
Unmatched Impact Resistance
With Izod/Charpy impact values of 65 KJ/m², Wonderlite PC-115L resists cracking from road debris or mechanical stress, reducing part failures in automotive applications.
Superior Thermal Stability
A Vicat softening temperature of 148°C and heat distortion resistance up to 142°C ensure dimensional integrity near engines or under prolonged heat exposure.
UV & Flame Resistance
UL94 V-2 flammability rating and UV stabilization prevent yellowing and ensure safety in harsh conditions, extending component lifespan.
Use & Applications

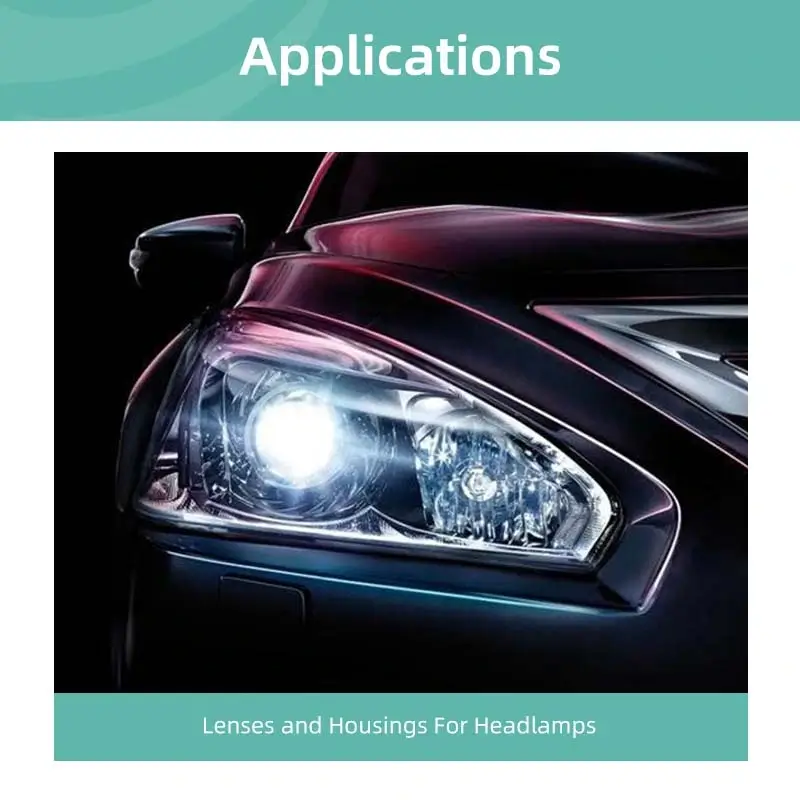

- Automotive Headlamp Lenses & Housings
