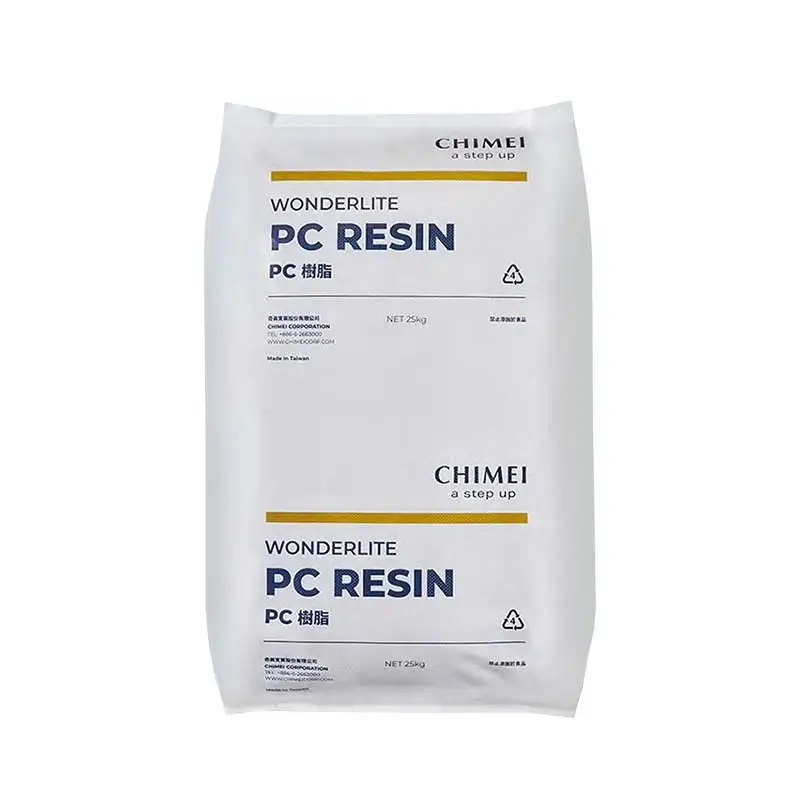

Chimei WONDERLITE® PC-122P

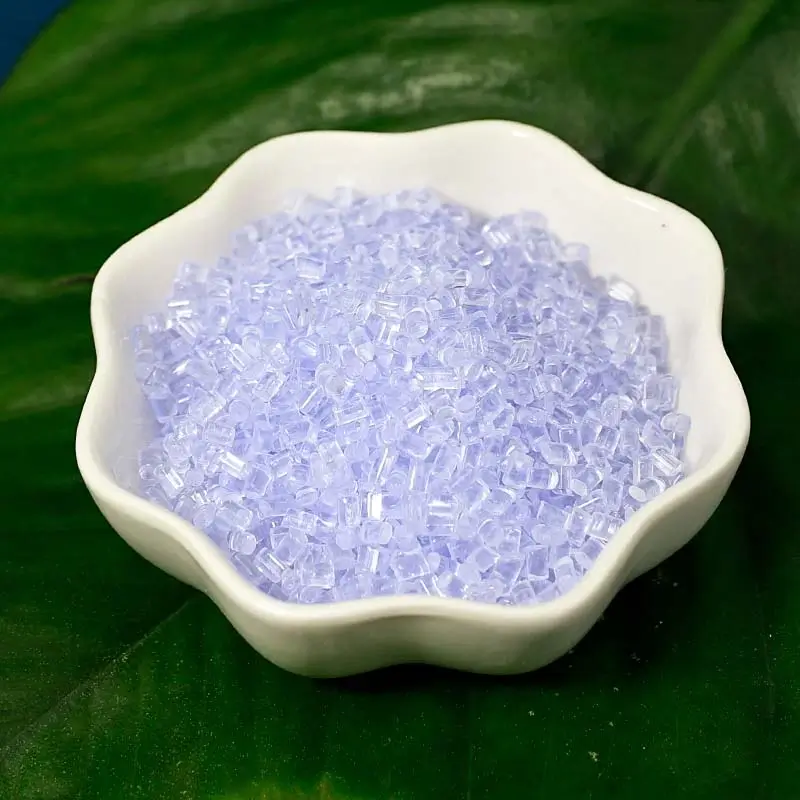

Plastic Granules
WONDERLITE PC-122P Medical Grade High Flow Material
WONDERLITE PC-122P is a medical-grade polycarbonate resin engineered for precision and reliability. Compliant with ISO10993-5/10 bio-compatibility standards, it combines high flow for effortless molding with exceptional durability, making it ideal for healthcare devices and equipment requiring rigorous sterilization.
Typical property data
Physical Properties
- Melt Flow Index: 22 ml/10 min (ISO 1133, 300°C × 1.2 kg)
- Mass Density: 1.2 g/cm³ (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength:
- Yield: 63 MPa (ISO 527, 50 mm/min)
- Break: 70 MPa (ISO 527, 50 mm/min)
- Tensile Elongation: 120% (ISO 527, 50 mm/min)
- Flexural Strength: 90 MPa (ISO 178, 2 mm/min)
- Flexural Modulus: 2.4 GPa (ISO 178, 2 mm/min)
- Izod Impact Strength:
- 23°C, Notched (1/8″): 60 KJ/m² (ISO 180/1A)
- Charpy Impact Strength:
- 23°C, Notched: 60 KJ/m² (ISO 179)
Thermal Properties
- Vicat Softening Temperature:
- 1 kg: 150°C (ISO 306)
- 5 kg: 145°C (ISO 306)
- Heat Distortion Temperature:
- Unannealed: 128°C (ISO 75/A, 1.8 MPa)
- Annealed: 143°C (ISO 75/A, 1.8 MPa)
- Coefficient of Linear Thermal Expansion: 6.0 8.0×10−56.0~8.0 \times 10^{-5} (ISO 11359)
Flammability
UL-94: V-2 at 3.0 mm thickness
Mold Shrinkage
Range: 0.5–0.7% (ISO 294-4)
Process Guide
- Pre-drying: 120°C × 4 hrs (depending on humidity, storage, and dryer performance)
- Barrel Setting Profile (°C):
- Nozzle: 240–300
- Compression Zone: 240–310
- Feeding Zone: 220–300
- Mold Temperature: 70–120°C (varies with cooling system and part thickness)
- Purging: Use heat-stable resins like polyethylene or polypropylene; avoid heat-decomposing resins.
Features & Benefits
High Flow for Complex Designs
With a melt flow index of 22 ml/10 min, PC-122P fills intricate molds effortlessly, reducing cycle times and enabling production of thin-walled or detailed medical components like IV connectors or surgical housings.
Medical-Grade Durability
Boasting 63 MPa tensile strength and 60 KJ/m² impact resistance, this resin withstands repeated sterilization (autoclaving) and mechanical stress, ensuring long-term performance in devices like surgical instruments or diagnostic tools.
Heat & Sterilization Resistance
A Vicat softening point of 150℃ and 143℃ heat deflection temperature (annealed) allow PC-122P to endure high-temperature sterilization without warping, critical for reusable medical equipment.
Use & Applications
Medical application:
- Surgical Instrument Housings
- IV Components
- Medical Imaging Devices
- Drug Delivery Systems
- Dental Equipment
