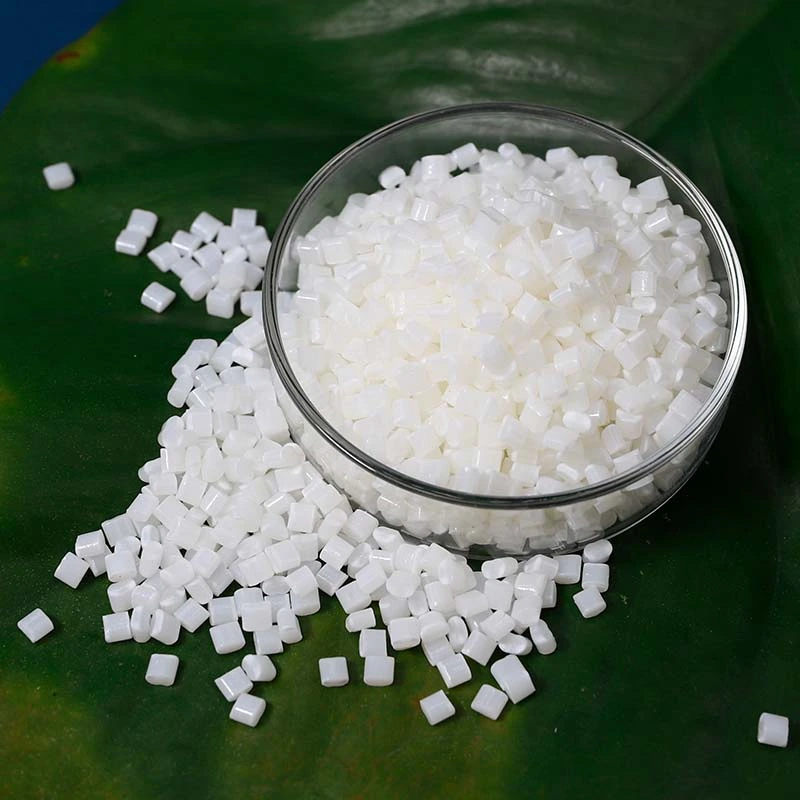

Sabic CYCOLOY™ Resin LG9000 PC/ABS
Plastic Granules
Sabic Cycoloy LG9000 (PC/ABS) Resin
Cycoloy Resins LG9000 is a premium PC/ABS blend engineered to deliver a consistent low-gloss surface right out of the mold, eliminating the need for secondary finishing and providing excellent impact strength and thermal stability for durable components.
Typical property data
Physical Properties
- Specific Gravity: 1.13 (ASTM D792)
- Water Absorption (23°C/24 hrs): 0.1% (ASTM D570)
- Water Absorption (23°C/Saturated): 0.4% (ASTM D570)
- Mold Shrinkage (flow, 3.2 mm): 0.5 – 0.7% (SABIC method)
- Mold Shrinkage (xflow, 3.2 mm): 0.5 – 0.7% (SABIC method)
- Melt Flow Rate (260°C/5.0 kgf): 17 g/10 min (ASTM D1238)
Mechanical Properties
- Tensile Stress (yield, Type I, 50 mm/min): 54 MPa (ASTM D638)
- Tensile Strain (break, Type I, 50 mm/min): 75% (ASTM D638)
- Flexural Stress (yield, 1.3 mm/min, 50 mm span): 84 MPa (ASTM D790)
- Flexural Modulus (1.3 mm/min, 50 mm span): 2300 MPa (ASTM D790)
- Hardness (Rockwell R): 118 (ASTM D785)
Impact Properties
- Izod Impact, Notched (23°C): 534 J/m (ASTM D256)
- Izod Impact, Notched (-30°C): 320 J/m (ASTM D256)
- Instrumented Dart Impact Total Energy (23°C): 40 J (ASTM D3763)
- Instrumented Dart Impact Total Energy (-30°C): 33 J (ASTM D3763)
Thermal Properties
- Vicat Softening Temperature (Rate B/50): 129°C (ASTM D1525)
- HDT (0.45 MPa, 3.2 mm, unannealed): 123°C (ASTM D648)
- HDT (1.82 MPa, 3.2 mm, unannealed): 107°C (ASTM D648)
- HDT (0.45 MPa, 6.4 mm, unannealed): 129°C (ASTM D648)
- HDT (1.82 MPa, 6.4 mm, unannealed): 110°C (ASTM D648)
- Coefficient of Thermal Expansion (flow, -20°C to 150°C): 7.2×10−57.2 \times 10^{-5} 1/°C (ASTM E831)
- Coefficient of Thermal Expansion (xflow, -20°C to 150°C): 7.2×10−57.2 \times 10^{-5} 1/°C (ASTM E831)
- Thermal Conductivity: 0.2 W/m-°C (ASTM C177)
- Relative Temperature Index (Electrical): 60°C (UL 746B)
- Relative Temperature Index (Mechanical with impact): 60°C (UL 746B)
- Relative Temperature Index (Mechanical without impact): 60°C (UL 746B)
Optical Properties
- Gloss (untextured, 60 degrees): 30 (ASTM D523)
Electrical Properties
- Arc Resistance (Tungsten, PLC Code): 6 (ASTM D495)
- Hot Wire Ignition (PLC Code): 2 (UL 746A)
- High Ampere Arc Ignition (surface, PLC Code): 0 (UL 746A)
- Comparative Tracking Index (PLC Code): 2 (UL 746A)
Flame Characteristics
- UL Recognized Flame Class Rating (94HB, 1.49 mm): UL 94
Injection Molding
- Drying Temperature: 105 – 110°C
- Drying Time: 3 – 4 hours
- Maximum Moisture Content: 0.04%
- Melt Temperature: 275 – 300°C
- Nozzle Temperature: 275 – 300°C
- Front Zone Temperature: 260 – 300°C
- Middle Zone Temperature: 255 – 295°C
- Rear Zone Temperature: 250 – 290°C
- Mold Temperature: 60 – 90°C
- Back Pressure: 0.3 – 0.7 MPa
- Screw Speed: 40 – 70 rpm
- Shot to Cylinder Size: 30 – 80%
- Vent Depth: 0.038 – 0.076 mm
Features & Benefits
Superior Impact Strength at Low Temperatures
With high Izod and dart impact values even at -30°C, LG9000 Resin ensures your products remain tough and crack-resistant in challenging environments, from freezing winters to refrigerated applications.
Excellent Heat Resistance for Assembled Parts
Its high Heat Deflection Temperature (HDT) allows parts to withstand the high heat of assembly processes, such as soldering or hot environments, without warping or losing structural integrity.
Consistent Low-Gloss, Aesthetic Finish
This LG9000 plastic material delivers a uniform low-gloss surface straight from the mold, ideal for consumer electronics and automotive interiors where a premium, non-reflective look is critical, saving on paint and finishing costs.
Use & Application
- Automotive Interiors: Durable, low-gloss components
- Consumer Electronics: Housings for monitors, printers, and home appliances
- Industrial Equipment: Housings and covers for machinery
