FCFC Formosa TAIRILITE® AC3600 PC Resin
TAIRILITE® AC3600 PC Resin Self Extinguishing Grade
TAIRILITE AC3600 PC Resin Polycarbonate delivers halogen-free flame retardancy, high heat resistance, and non-transparent durability. Ideal for demanding electrical components, it combines safety (UL94 V-0/5VB), robust impact strength, and thermal stability in harsh environments—perfect for transformers, chargers, and smart devices.

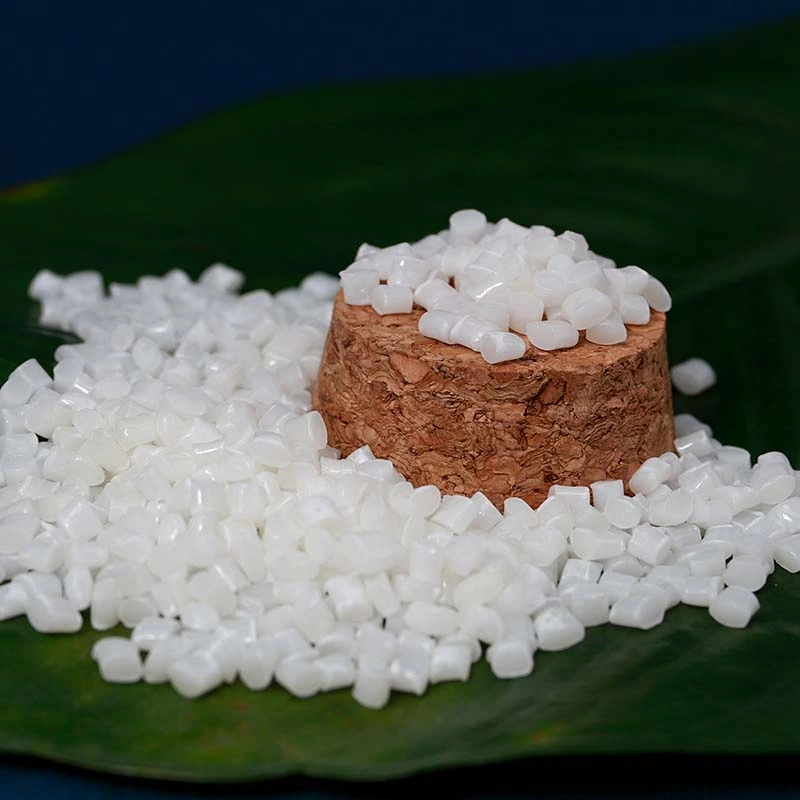

Plastic Granules
Download PDF
ISO Data Sheet
ASTM Data Sheet
UL Product iQ
MSDS
Processing Data
Typical property data
Physical Properties
- Melt Flow Index: 11 g/10 min (ISO 1133, 300℃ × 1.2 kg)
- Specific Gravity: 1.19 (ISO 1183, 23℃/23℃)
Mechanical Properties
- IZOD Impact Strength: 735 J/m (ISO 180, 23℃, 3.2 mm)
- Charpy Impact Strength: 65 kJ/m² (ISO 179, 23℃, 4 mm)
- Tensile Strength: 65 MPa (ISO 527, 23℃)
- Flexural Strength: 103 MPa (ISO 178, 23℃)
- Flexural Modulus: 2100 MPa (ISO 178, 23℃)
- Rockwell Hardness: R-120 (ISO 2039-2, 23℃)
Thermal Properties
- Vicat Softening Point: 147℃ (ISO 306, VICAT [10 N])
- Heat Deflection Temperature: 123℃ (ISO 75/A, Unannealed, 1.8 MPa, 3.2 mm)
Flame Characteristics
- Combustibility:
- UL 94 V-0 (1~3 mm)
- UL 94 5VB (2 mm)
Injection Molding
- Molding Shrinkage: 0.5–0.7% (ISO 2577, 3.2 mm)
Use & applications
Features & Benefits
Halogen-Free Flame Retardancy
AC3600 achieves UL94 V-0 (1–3mm) and 5VB (2mm) ratings without toxic halogens. This ensures eco-compliance and critical fire safety for electronics, reducing regulatory risks.
Exceptional Heat Resistance
With a Vicat softening point of 147°C and HDT of 123°C, it withstands high-temperature operations (e.g., power adapters), preventing deformation and ensuring longevity.
High Impact & Rigidity
Charpy impact strength of 65 kJ/m² and flexural modulus of 2,100 MPa resist cracks during drops or vibrations, cutting replacement costs in rugged applications.
FAQs
The supplied ISO TDS lists “Halogen free” in the features.
UL Product iQ lists V-2 at 0.6 mm, V-1 at 0.8 mm, V-0 at 1.0–3.0 mm, and 5VB at 2.0–3.0 mm, in ALL colors. The ISO TDS lists V-0 1–3 mm and 5VB 2 mm. Verify the exact thickness and color.
The provided UL excerpt does not list UL 746C f1 for AC3600. For outdoor applications, request the current UL Product iQ page or consider f1-rated grades.
The processing guide recommends pre-drying at 120–130°C for 4–6 hr. Screw temperature is 260–295°C, mold temperature 80–100°C, and injection pressure 50–130 kg/cm². Confirm with your machine and mold.
It is a halogen-free, flame-retardant, high-heat-resistance, non-transparent grade. It is often chosen for parts that need higher heat resistance than standard FR PC.
AC3600 Related Flame Retardant Grades
Disclaimer:Disclaimer: The grades below are potential alternatives for comparison only from FORMOSA (FCFC). They are not direct drop-in replacements. UL ratings are color- and thickness-dependent. Typical values are not specifications. All property data is from ISO TDS unless otherwise stated. Please verify current UL Product iQ status, request TDS/SDS/COA and test samples before substitution.
| Grade / Manufacturer | Positioning vs. AC3600 | UL94 (ISO TDS) | MFR | HDT | Notched Impact (IZOD / Charpy) | Color | UV / UL 746C f1 |
|---|---|---|---|---|---|---|---|
| AC3610-AF FORMOSA TAIRILITE® PC | Same UL94 coverage, trades heat resistance for an explicit Cl / Br / Sb-free declaration | V-2 0.6 mm; V-1 0.8 mm; V-0 1.0–3.0 mm; 5VB 2.0–3.0 mm | 10 g/10 min | 113 °C | IZOD 735 J/m | Non-transparency; ALL | / |
| AC3630 FORMOSA TAIRILITE® PC | High-flow non-transparent FR upgraded with UL weather resistance / 746C f1 for outdoor use | V-0 0.8–3.0 mm; 5VB 1.5–3.0 mm | 25 g/10 min | N/A (ISO TDS value anomalous) | IZOD 635 J/m; Charpy 55 kJ/m² | Non-transparency; ALL | UL weather / UL 746C f1 |
| AC3710 FORMOSA TAIRILITE® PC | High-flow (MFR 28) sister for thin-wall electronics casings; same halogen-free non-trans FR | V-1 0.45 mm; V-0 0.6–3.0 mm; 5VB 1.5–3.0 mm | 28 g/10 min | N/A (ISO TDS value anomalous) | IZOD 685 J/m; Charpy 40 kJ/m² | Non-transparency; ALL | / |
↩ Back to FORMOSA (FCFC) Flame Retardant PC Resin Hub (13 grades)
Substitution checklist: Before replacing any grade, verify UL94 at the same wall thickness, UL-listed color, halogen-free declaration, MFR/MVR, HDT, notched impact, UV / UL 746C f1 and processing window.
