Formosa (FCFC) TAIRILITE® AC3830
TAIRILITE® AC3830 PC Resin Self Extinguishing Grade
Tairilite AC3830 is a versatile polycarbonate resin for demanding applications. This halogen-free, UV-resistant material combines exceptional light diffusion, mid-flow processability, and self-extinguishing properties (UL 94 V-0) in a single solution—ideal for optical components and safety-critical parts.

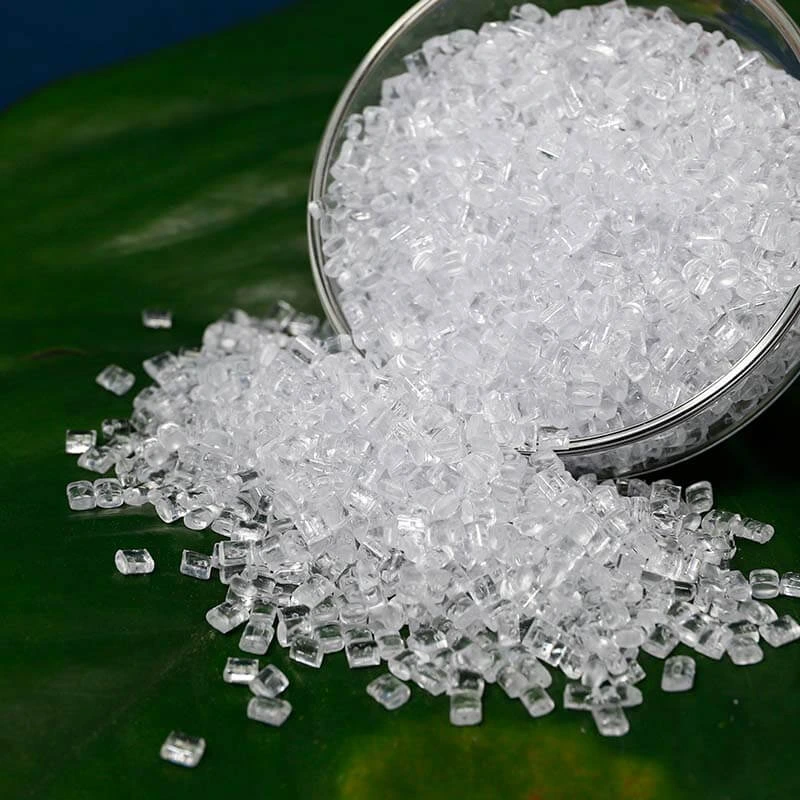

Plastic Granules
Download PDF
ISO Data Sheet
ASTM Data Sheet
Typical property data
Physical Properties
- Specific Gravity: 1.2 (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength: 70 MPa (ISO 527, 23°C, 50 mm/min)
- Flexural Strength: 108 MPa (ISO 178, 23°C, 2 mm/min)
- Flexural Modulus: 2155 MPa (ISO 178, 23°C, 2 mm/min)
- Rockwell Hardness: R-122 (ISO 2039-2, 23°C)
Impact Properties
Charpy Impact Strength (Notched): 70 kJ/m² (ISO 179, 23°C, 4 mm)
Thermal Properties
Heat Deflection Temperature (HDT): 128°C (ISO 75/A, Unannealed, 1.8 MPa, 4 mm, 120°C/h)
Optical Properties
Features: Light Diffusion, UV Resistance
Flame Characteristics
- UL-94 V-0 (1 mm)
- UL-94 5VA (3 mm)
Injection Molding
- Melt Flow Index: 12 g/10 min (ISO 1133, 300°C × 1.2 kg)
- Molding Shrinkage: 0.5–0.7% (ISO 2577)
Features & Benefits
Halogen-Free Flame Retardancy
Tairilite AC3830 meets UL 94 V-0/5VA standards (1–3 mm thickness), eliminating toxic fumes during combustion. This ensures compliance with global safety regulations for electronics and lighting enclosures.
Superior Light Diffusion & UV Stability
Optimized for light-managing applications, its built-in UV resistance prevents yellowing and maintains optical clarity outdoors (UL 746C f1-rated). Perfect for long-life diffusers exposed to sunlight.
Balanced Flow & Toughness
With a melt flow index of 12 g/10 min (ISO 1133) and Charpy impact strength of 70 kJ/m², it enables intricate molding while resisting fractures—reducing scrap rates in thin-walled designs.
Use & applications
FAQs
The supplied ISO TDS lists “Halogen free” in the features.
UL Product iQ for AC383(x) lists UL 746C f1 outdoor suitability. The ISO TDS also lists UV resistance. This makes it suitable for outdoor or UV-exposed applications, subject to final product validation.
UL Product iQ for AC383(x) lists V-0 at 1.0–3.0 mm and 5VA at 3.0 mm, in ALL colors, with f1. The ISO TDS lists V-0 1 mm and 5VA 3 mm. Verify the exact thickness and color.
The processing guide recommends pre-drying at 120°C for 4–8 hr. Nozzle and middle zones are 260–320°C, rear zone 250–290°C, mold temperature 70–100°C. Do not exceed 330°C to avoid degradation.
It is a light-diffusion, mid-flow, UV-resistant, halogen-free flame-retardant grade. It is often used for light-diffusion covers, LED lighting parts, and outdoor housings.
AC3830 Related Flame Retardant Grades
Disclaimer:Disclaimer: The grades below are potential alternatives for comparison only from FORMOSA (FCFC). They are not direct drop-in replacements. UL ratings are color- and thickness-dependent. Typical values are not specifications. All property data is from ISO TDS unless otherwise stated. Please verify current UL Product iQ status, request TDS/SDS/COA and test samples before substitution.
| Grade / Manufacturer | Positioning vs. AC3830 | UL94 (ISO TDS) | MFR | HDT | Notched Impact (IZOD / Charpy) | Color | UV / UL 746C f1 |
|---|---|---|---|---|---|---|---|
| AC3839 FORMOSA TAIRILITE® PC |
Same mid-flow UV+f1 FR, swaps light-diffusion for low-temperature impact performance | V-0 1.0–3.0 mm; 5VA 3.0 mm | 12 g/10 min | 125 °C | Charpy 70 kJ/m² | ALL | UL 746C f1; UV resistance |
| AC3900 FORMOSA TAIRILITE® PC |
Aesthetic alternative: opaque white / high-gloss reflection non-transparent FR | V-0 1.5–3.0 mm | 26 g/10 min | 124 °C | IZOD 585 J/m; Charpy 45 kJ/m² | White color; NC | / |
| AC3843 FORMOSA TAIRILITE® PC |
Switch to transparent FR with UV+f1 for lenses, light guides and clear covers | V-0 3.0–3.3 mm | 12 g/10 min | 128 °C | Charpy 75 kJ/m² | Transparent FR; ALL | UL 746C f1; UV resistance |
↩ Back to FORMOSA (FCFC) Flame Retardant PC Resin Hub (13 grades)
Substitution checklist: Before replacing any grade, verify UL94 at the same wall thickness, UL-listed color, halogen-free declaration, MFR/MVR, HDT, notched impact, UV / UL 746C f1 and processing window.
