Formosa (FCFC) TAIRILITE® AC3854
TAIRILITE® AC3854 PC Resin Transparent Flame Retardant Grade
TAIRILITE AC3854 PC Resin is a high-performance transparent, flame-retardant polycarbonate. With UV resistance, mid-low flow, and halogen-free properties, it delivers exceptional safety and clarity for demanding industrial applications. Ideal for parts requiring visual inspection and fire compliance.

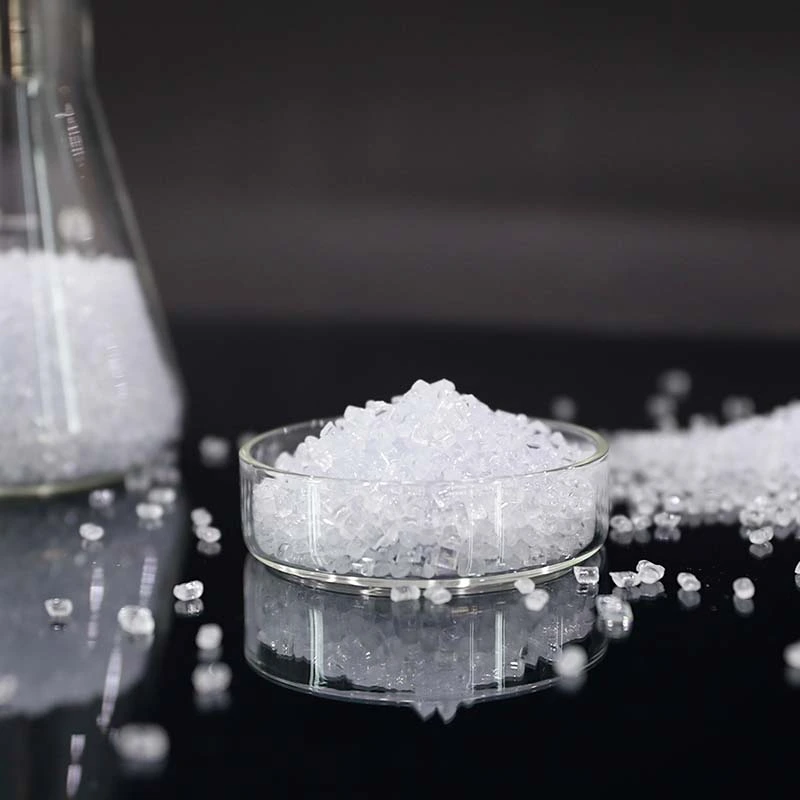

Plastic Granules
Download PDF
ISO Data Sheet
ASTM Data Sheet
UL Product iQ
MSDS
Processing Data
Typical Property Data
Physical Properties
- Melt Flow Index: 12 g/10 min (ISO 1133, 300°C × 1.2 kg)
- Specific Gravity: 1.2 (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength: 70 MPa (ISO 527, 23°C, 50 mm/min)
- Flexural Strength: 108 MPa (ISO 178, 23°C, 2 mm/min)
- Flexural Modulus: 2155 MPa (ISO 178, 23°C, 2 mm/min)
- Rockwell Hardness: R-122 (ISO 2039-2, 23°C)
Impact Properties
- Charpy Impact Strength: 70 kJ/m² (ISO 179, 23°C, 4 mm, Notched)
Thermal Properties
- Heat Deflection Temperature (HDT): 128°C (ISO 75/A, Unannealed, 1.8 MPa, 4 mm, 120°C/h)
Optical Properties
- Features: Transparency
Flame Characteristics
- Combustibility: UL-94 V-0 (2.5 mm, File No. E162823)
- Halogen-Free: Yes
Injection Molding
- Molding Shrinkage: 0.5–0.7% (ISO 2577)

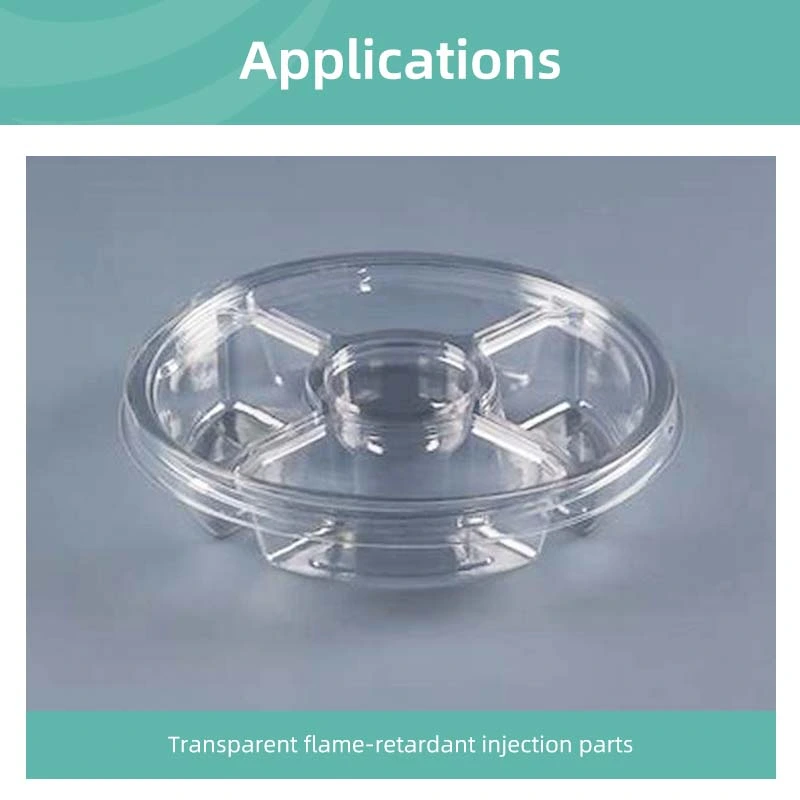

Use & applications
Features & Benefits
Superior Flame Retardancy
It achieves UL94 V-0 rating at just 2.5mm thickness, ensuring critical fire safety in electrical components. Eliminates risks in high-heat environments.
Crystal Clarity + UV Stability
It maintains transparency and resists yellowing under sunlight, perfect for outdoor use. Reduces part replacement costs long-term.
Eco-Friendly & Process-Ready
Halogen-free formulation meets global environmental regulations. Mid-low flow simplifies injection molding with minimal shrinkage (0.5–0.7%).
FAQs
The supplied ISO TDS lists “Halogen free” in the features.
UL Product iQ for AC385(x) lists UL 746C f1 outdoor suitability. The ISO TDS also lists UV resistance. This supports outdoor use, subject to final product validation.
UL Product iQ for AC385(x) lists V-0 at 2.5–3.0 mm, in NC/WT colors, with f1. The ISO TDS lists V-0 2.5 mm. Verify the exact thickness and color.
The processing guide recommends pre-drying at 120°C for 4–8 hr. Nozzle and middle zones are 250–300°C, rear zone 240–280°C, mold temperature 70–100°C. Do not exceed 320°C.
It is a transparent, flame-retardant, mid-low-flow, UV-resistant, halogen-free grade. It is often used for transparent covers, lenses, and light guides requiring V-0 and outdoor suitability.
AC3854 Related Flame Retardant Grades
Disclaimer:Disclaimer: The grades below are potential alternatives for comparison only from FORMOSA (FCFC). They are not direct drop-in replacements. UL ratings are color- and thickness-dependent. Typical values are not specifications. All property data is from ISO TDS unless otherwise stated. Please verify current UL Product iQ status, request TDS/SDS/COA and test samples before substitution.
| Grade / Manufacturer | Positioning vs. AC3854 | UL94 (ISO TDS) | MFR | HDT | Notched Impact (Charpy) | Color | UV / UL 746C f1 |
|---|---|---|---|---|---|---|---|
| AC3853 FORMOSA TAIRILITE® PC | Direct sister grade with identical UL / MFR / HDT, upgraded Charpy 75 kJ/m² | V-0 2.5–3.0 mm | 12 g/10 min | 128 °C | 75 kJ/m² | Transparent FR; NC/WT | UL 746C f1; UV resistance |
| AC3843 FORMOSA TAIRILITE® PC | Thicker-wall transparent FR: V-0 at 3.0–3.3 mm, ALL color coverage, impact 75 kJ/m² | V-0 3.0–3.3 mm | 12 g/10 min | 128 °C | 75 kJ/m² | Transparent FR; ALL | UL 746C f1; UV resistance |
| AC3832 FORMOSA TAIRILITE® PC | Low-flow (MFR 5) transparent FR with thinnest V-0 coverage from 1.0 mm + 5VA 3.0 mm | V-0 1.0–3.0 mm; 5VA 3.0 mm | 5 g/10 min | 128 °C | 70 kJ/m² | Transparent FR; ALL | UL 746C f1; UV resistance |
↩ Back to FORMOSA (FCFC) Flame Retardant PC Resin Hub (13 grades)
Substitution checklist: Before replacing any grade, verify UL94 at the same wall thickness, UL-listed color, halogen-free declaration, MFR/MVR, HDT, notched impact, UV / UL 746C f1 and processing window.
