Formosa (FCFC) TAIRILITE® AC3873
TAIRILITE® AC3873 Transparent Flame Retardant Grade
TAIRILITE AC3873 is a premium transparent flame-retardant PC resin. Combining exceptional optical clarity (87%+ transmittance), inherent UV resistance, halogen-free safety, and reliable V-0 flame retardancy, it solves critical challenges in electronics, automotive, and construction components. Its low-flow properties ensure precise molding of intricate parts.

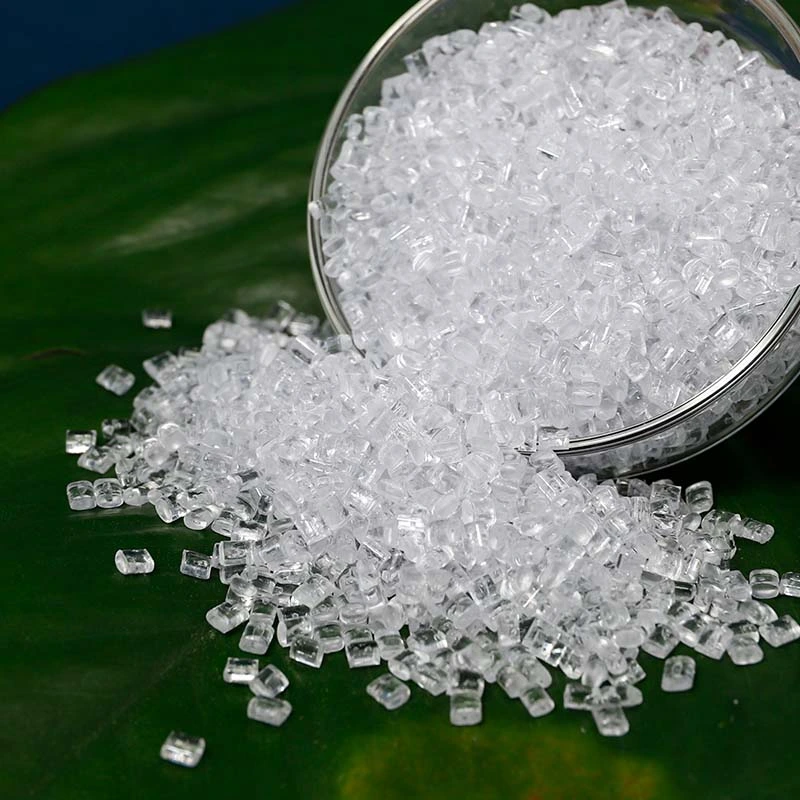

Plastic Granules
Download PDF
ISO Data Sheet
ASTM Data Sheet
UL Product iQ
MSDS
Processing Data
Typical property data
Physical Properties
- Melt Flow Index: 5 g/10 min (ISO 1133, 300℃ × 1.2kg)
- Specific Gravity: 1.2 (ISO 1183, 23℃)
Mechanical Properties
- Tensile Strength: 70 MPa (ISO 527, 23℃, 50mm/min)
- Flexural Strength: 108 MPa (ISO 178, 23℃, 2mm/min)
- Flexural Modulus: 2155 MPa (ISO 178, 23℃, 2mm/min)
- Rockwell Hardness: R-122 (ISO 2039-2, 23℃)
Impact Properties
- Charpy Impact Strength (Notched): 70 kJ/m² (ISO 179, 23℃, 4mm)
Thermal Properties
- Heat Deflection Temperature (HDT): 128℃ (ISO 75/A, Unannealed, 1.8 MPa, 4mm, 120℃/h)
Optical Properties
- Transmission: > 87% (ISO 13468/1, 3.2mm)
- Haze: < 1.0% (ISO 14782, 3.2mm)
Flame Characteristics
- Combustibility: UL-94 V-0, 1.5 mm (File No. E162823)
Injection Molding
- Molding Shrinkage: 0.5% ~ 0.7% (ISO 2577)

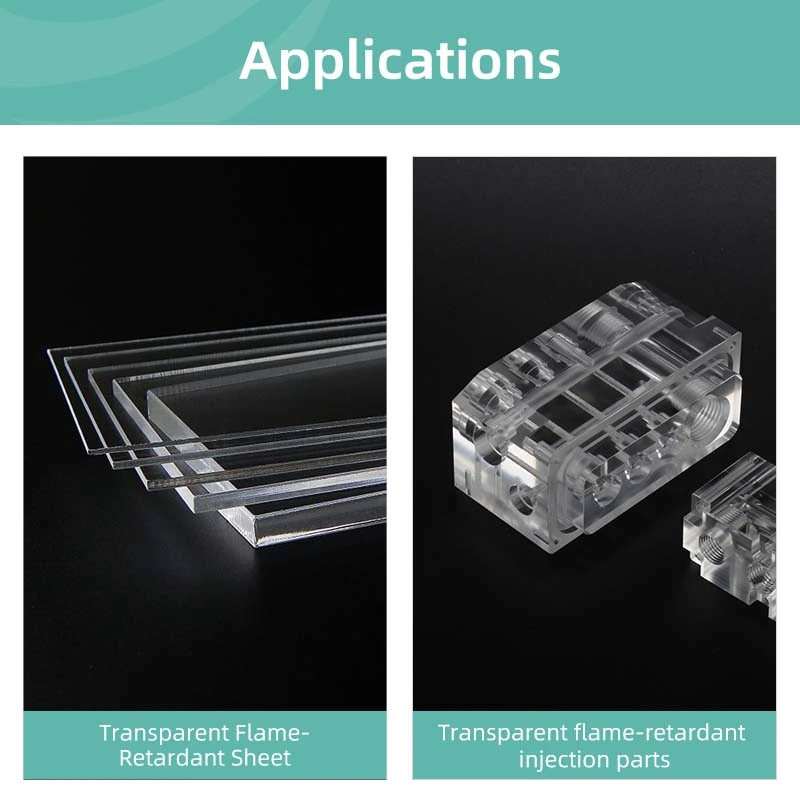

Use & applications
- UV-Exposed Components: Outdoor lighting, automotive lenses.
Features & Benefits
Flame Retardant & Safe
TAIRILITE® AC3873 achieves UL94 V-0 (1.5mm) certification without halogens, ensuring fire safety in high-risk environments like electrical housings. Ideal for eco-conscious designs.
Crystal-Clear Durability
With >87% light transmission and <1.0% haze, this PC resin maintains optical clarity while resisting UV degradation—perfect for outdoor displays or transparent protective barriers.
Process-Ready Stability
Low melt flow (5g/10min) enables controlled injection molding. Pre-drying at 120°C prevents silver streaks, ensuring consistent part quality even in complex geometries.
FAQs
The supplied ISO TDS lists “Halogen free” in the features.
UL Product iQ for AC387(x) lists UL 746C f1 outdoor suitability. The ISO TDS also lists UV resistance. This supports outdoor use, subject to final product validation.
UL Product iQ for AC387(x) lists V-2 at 1.2 mm and V-0 at 1.5–3.0 mm, in ALL colors, with f1. The ISO TDS lists V-0 1.5 mm. Verify the exact thickness and color.
The processing guide recommends pre-drying at 120°C for 4–8 hr. Nozzle and middle zones are 260–320°C, rear zone 250–290°C, mold temperature 70–100°C. Do not exceed 330°C.
It is a high-transparency, flame-retardant, low-flow, UV-resistant, halogen-free grade. The ISO TDS lists transmission >87% at 3.2 mm and haze <1.0 at 3.2 mm. It is often used for optical lenses, light guides, and transparent covers requiring V-0.
AC3873 Related Flame Retardant Grades
Disclaimer:Disclaimer: The grades below are potential alternatives for comparison only from FORMOSA (FCFC). They are not direct drop-in replacements. UL ratings are color- and thickness-dependent. Typical values are not specifications. All property data is from ISO TDS unless otherwise stated. Please verify current UL Product iQ status, request TDS/SDS/COA and test samples before substitution.
| Grade / Manufacturer | Positioning vs. AC3873 | UL94 (ISO TDS) | MFR | HDT | Notched Impact (Charpy) | Color | UV / UL 746C f1 |
|---|---|---|---|---|---|---|---|
| AC3832 FORMOSA TAIRILITE® PC |
Direct low-flow sister: broader UL coverage V-0 1.0–3.0 mm + 5VA 3.0 mm, same MFR 5 & UV+f1 | V-0 1.0–3.0 mm; 5VA 3.0 mm | 5 g/10 min | 128 °C | 70 kJ/m² | Transparent FR; ALL | UL 746C f1; UV resistance |
| AC3843 FORMOSA TAIRILITE® PC |
Mid-low flow (MFR 12) transparent FR for easier filling, higher impact 75 kJ/m² | V-0 3.0–3.3 mm | 12 g/10 min | 128 °C | 75 kJ/m² | Transparent FR; ALL | UL 746C f1; UV resistance |
| AC3853 FORMOSA TAIRILITE® PC |
Mid-low flow transparent FR: V-0 from 2.5 mm in NC/WT, higher impact 75 kJ/m² | V-0 2.5–3.0 mm | 12 g/10 min | 128 °C | 75 kJ/m² | Transparent FR; NC/WT | UL 746C f1; UV resistance |
↩ Back to FORMOSA (FCFC) Flame Retardant PC Resin Hub (13 grades)
Substitution checklist: Before replacing any grade, verify UL94 at the same wall thickness, UL-listed color, halogen-free declaration, MFR/MVR, HDT, notched impact, UV / UL 746C f1 and processing window.
