FCFC Formosa TAIRILITE® AC9830 PC Resin
TAIRILITE® AC9830 PC Resin Ultra-low Temp Resistance Copolymer
FCFC PC resin TAIRILITE AC9830 is an ultra-low-temperature-resistant polycarbonate copolymer. It combines translucency, mid-flow processability, UL94 V0 flame retardancy, outstanding low-temperature impact strength, and UV resistance—ideal for precision electrical and outdoor components.

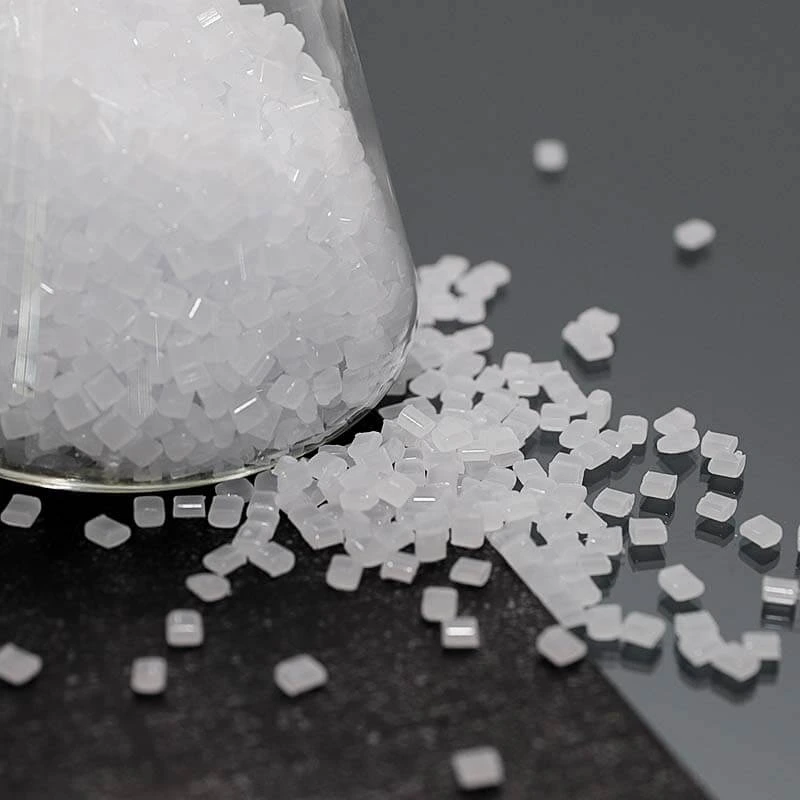

Plastic Granules
Download PDF
ISO Data Sheet
ASTM Data Sheet
UL Product iQ
MSDS
Processing Data
Typical property data
Physical Properties
- Specific Gravity: 1.2 (ISO 1183, 23°C)
Mechanical Properties
- Tensile Strength: 67 MPa (ISO 527, 23°C, 50 mm/min)
- Flexural Strength: 98 MPa (ISO 178, 23°C, 2 mm/min)
- Flexural Modulus: 2058 MPa (ISO 178, 23°C, 2 mm/min)
- Rockwell Hardness: R-120 (ISO 2039-2, 23°C)
Impact Properties
- Charpy Impact Strength: 70 kJ/m² (ISO 179, 23°C, 4 mm, Notched)
Thermal Properties
- Heat Deflection Temperature (HDT): 125°C (ISO 75/A, Unannealed, 1.8 MPa, 4 mm, 120°C/h)
Flame Characteristics
- Flammability Rating: UL-94 V-0 at 1.5 mm
- Flammability Rating: UL-94 5VA at 3 mm (File No. E162823)
Injection Molding
- Melt Flow Index (MFI): 12 g/10 min (ISO 1133, 300°C, 1.2 kg)
- Molding Shrinkage: 0.4–0.8% (ISO 2577)

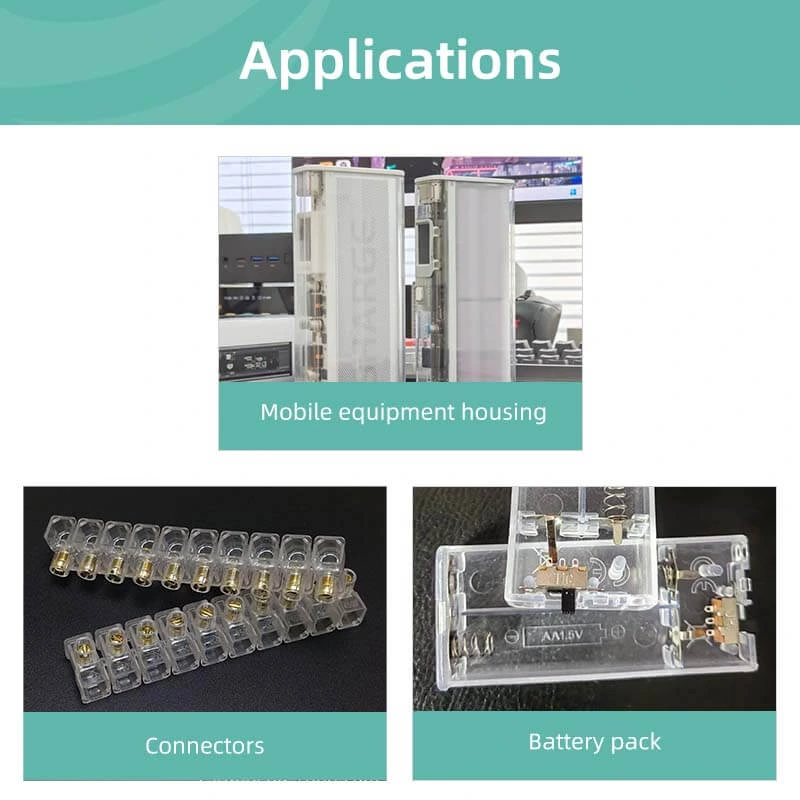

Use & applications
Features & Benefits
Superior Flame Retardancy
TAIRILITE AC9830 achieves UL94 V-0 (1.5mm) and 5VA (3.0mm) ratings, meeting strict safety standards. Ideal for electronics and battery housings, it reduces ignition risks without toxic additives.
Extreme Impact Resilience
With 70 kJ/m² Charpy impact strength (ISO 179, -30°C), it withstands harsh environments and physical stress. Perfect for outdoor equipment and automotive parts exposed to sub-zero temperatures.
Hassle-Free Processing
Mid-flow properties enable smooth injection molding (260–310°C barrel temp). Pre-drying (120°C, 4–8 hrs) prevents silver streaks, while UV resistance ensures long-term color stability outdoors.
FAQs
The supplied ISO TDS lists “Halogen free” in the features.
UL Product iQ for AC983(x) lists V-1 at 0.75 mm, V-0 at 1.5–3.0 mm, and 5VA at 3.0 mm, in ALL colors. The ISO TDS lists V-0 1.5 mm and 5VA 3 mm. Verify the exact thickness and color.
The processing guide recommends pre-drying at 120°C for 4–8 hr. Nozzle and middle zones are 260–310°C, rear zone 240–280°C, mold temperature 70–100°C. Do not exceed 330°C.
It is a translucent, mid-flow, flame-retardant, low-temperature-impact, UV-resistant, ultra-low-temperature-resistant copolymer. It is often used for parts requiring cold-impact resistance, such as outdoor equipment, cold-chain components, and industrial housings.
AC9830 Related Flame Retardant Grades
Disclaimer:Disclaimer: The grades below are potential alternatives for comparison only from FORMOSA (FCFC). They are not direct drop-in replacements. UL ratings are color- and thickness-dependent. Typical values are not specifications. All property data is from ISO TDS unless otherwise stated. Please verify current UL Product iQ status, request TDS/SDS/COA and test samples before substitution.
| Grade / Manufacturer | Positioning vs. AC9830 | UL94 (ISO TDS) | MFR | HDT | Notched Impact (Charpy) | Color | UV / UL 746C f1 |
|---|---|---|---|---|---|---|---|
| AC3839 FORMOSA TAIRILITE® PC |
Standard-PC mid-flow FR with low-temp impact + UV, upgraded with UL 746C f1 for outdoor use | V-0 1.0–3.0 mm; 5VA 3.0 mm | 12 g/10 min | 125 °C | 70 kJ/m² | ALL | UL 746C f1; UV resistance |
| AC3830 FORMOSA TAIRILITE® PC |
Same mid-flow UV family with light-diffusion optics for LED diffusers & lampshades | V-0 1.0–3.0 mm; 5VA 3.0 mm | 12 g/10 min | 128 °C | 70 kJ/m² | Light diffusion; ALL | UL 746C f1; UV resistance |
| AC3843 FORMOSA TAIRILITE® PC |
Switch from translucent copolymer to fully transparent FR with UV+f1 for clear covers & lenses | V-0 3.0–3.3 mm | 12 g/10 min | 128 °C | 75 kJ/m² | Transparent FR; ALL | UL 746C f1; UV resistance |
↩ Back to FORMOSA (FCFC) Flame Retardant PC Resin Hub (13 grades)
Substitution checklist: Before replacing any grade, verify UL94 at the same wall thickness, UL-listed color, halogen-free declaration, MFR/MVR, HDT, notched impact, UV / UL 746C f1 and processing window.
