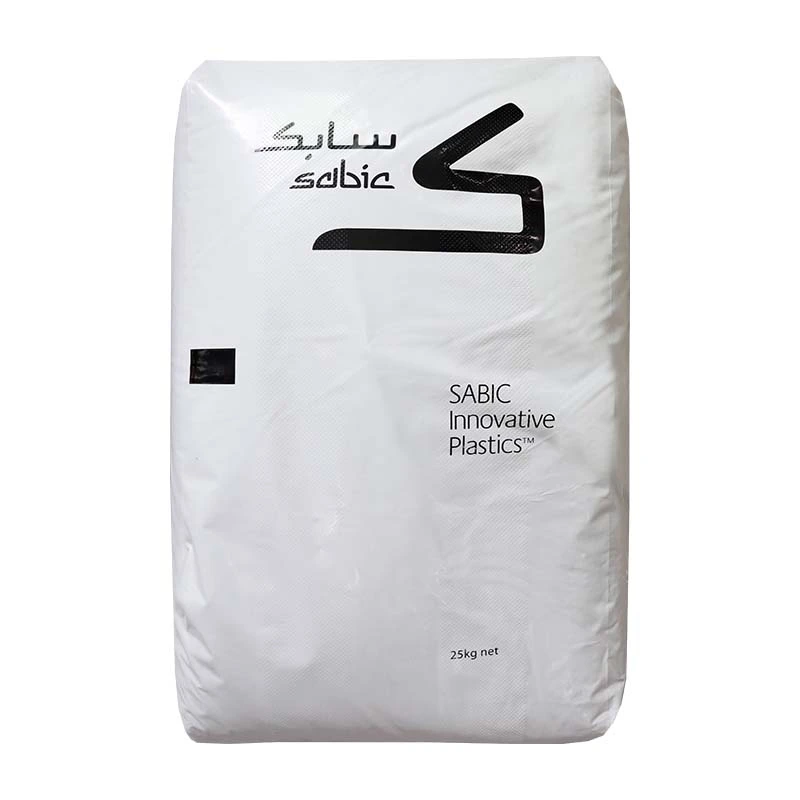

SABIC® PC Resin PC1003R
Plastic Granules
Sabic PC1003R Injection Molding Grade Medium Flow
Sabic PC1003R is a medium-flow, heat and UV-stabilized polycarbonate with built-in mold release. It is a versatile, high-performance plastic designed for reliable general-purpose injection molding, balancing ease of processing with excellent mechanical properties.
Associated Documents
TDS Asia
TDS Europe
TDS Americas
TDS Global
Typical property data
Physical Properties
- Specific Gravity: 1.2 (ASTM D792, ISO 1183)
- Water Absorption, Saturated (23°C): 0.35% (ASTM D570, ISO 62-1)
- Melt Flow Rate (300°C/1.2 kg): 10 g/10 min (ASTM D1238)
- Mold Shrinkage on Tensile Bar (flow): 0.5–0.7% (SABIC method)
Mechanical Properties
- Tensile Stress at Yield (50 mm/min): 63 MPa (ASTM D638, ISO 527)
- Tensile Strain at Yield (50 mm/min): 6% (ASTM D638, ISO 527)
- Tensile Modulus (1 mm/min): 2350 MPa (ASTM D638, ISO 527)
- Flexural Stress at Yield (2 mm/min): 90 MPa (ASTM D790, ISO 178)
- Flexural Modulus (2 mm/min): 2300 MPa (ASTM D790, ISO 178)
- Hardness (Rockwell R): 120 (ASTM D785, ISO 2039-2)
Impact Properties
- Izod Impact, Notched (+23°C): 800 J/m (ASTM D256), 70 kJ/m² (ISO 180/1A)
- Izod Impact, Notched (-30°C): 12 kJ/m² (ISO 180/1A)
- Instrumented Dart Impact Energy at Peak (+23°C): 65 J (ASTM D3763)
Thermal Properties
- Vicat Softening Temperature (Rate B/50): 143°C (ASTM D1525, ISO 306)
- Heat Deflection Temperature (HDT), 0.45 MPa: 138°C (ASTM D648, ISO 75/Bf)
- Heat Deflection Temperature (HDT), 1.82 MPa: 127°C (ASTM D648, ISO 75/Af)
- Coefficient of Thermal Expansion (CTE, Flow): 7×10−57 \times 10^{-5} 1/°C (ASTM E831, ISO 11359-2)
- Thermal Conductivity: 0.2 W/m-°C (ASTM C177, ISO 8302)
Optical Properties
- Light Transmission (2.54 mm): 88–90% (ASTM D1003)
- Haze (2.54 mm): <0.8% (ASTM D1003)
- Refractive Index: 1.586 (ASTM D542, ISO 489)
Electrical Properties
- Volume Resistivity: >1×10151 \times 10^{15} Ω·cm (ASTM D257, IEC 60093)
- Dielectric Strength (1.6 mm): 27 kV/mm (ASTM D149, IEC 60243-1)
- Relative Permittivity (60 Hz): 3 (ASTM D150, IEC 60250)
- Dissipation Factor (60 Hz): 0.001 (ASTM D150, IEC 60250)
Flame Characteristics
- UL Flame Class Rating: 94V-2 (1.6 mm) (UL 94)
Features & Benefits
Superior Impact Resistance & Toughness
With its notch-insensitive nature and high ductility, Sabic PC1003R produces incredibly tough parts that resist cracking and withstand sudden impacts, reducing breakage and product failure in demanding environments.
Excellent Thermal & UV Stability
This resin maintains its structural integrity and appearance under high temperatures and prolonged sun exposure, ensuring long-term performance and color stability for both indoor and outdoor applications.
Enhanced Mold Release & Processability
The built-in mold release agent facilitates easier part ejection and shorter cycle times, boosting your production efficiency and reducing the need for external release agents that can contaminate molds.
Use & Applications
- Consumer Electronics Housings
- Automotive Interior Components
- Electrical Enclosures and Connectors
- Household Appliances and Tools
- Various Durable Consumer Goods
