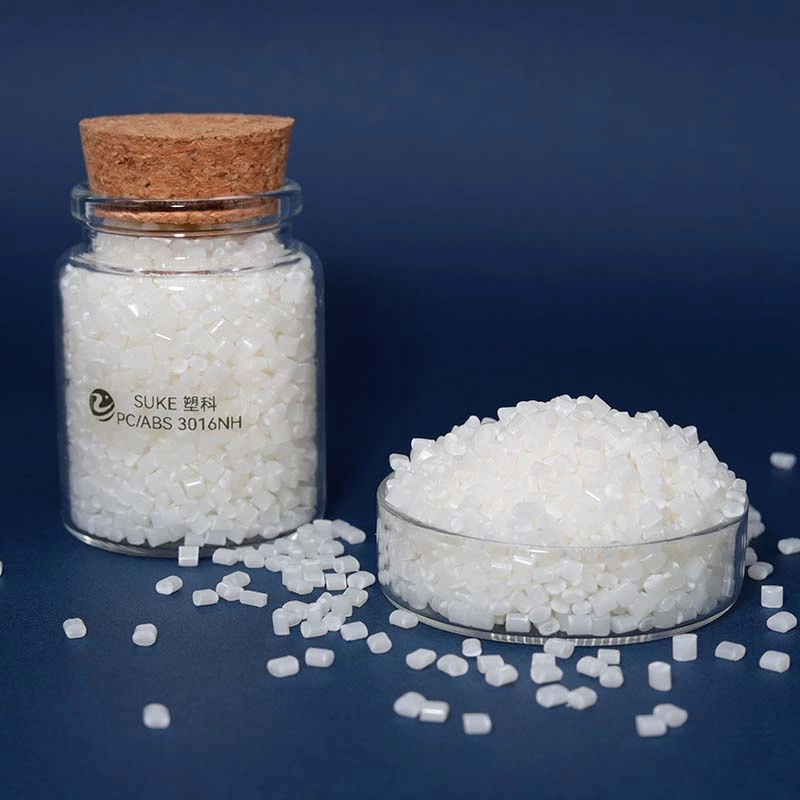

Suke Plastics 3016NH PC ABS
Plastic Granules
Suke 3016NH PC/ABS Resin Flame Retardant Grade
Suke 3016NH is a premium halogen-free PC/ABS resin engineered for demanding applications. Combining exceptional chemical resistance with robust mechanical performance, it delivers reliability for electronics, office equipment, and wearable tech—all while meeting strict environmental and safety standards.
Associated Documents
ASTM TDS
Typical property data
Physical Properties
- Density: 1.18 g/cm³ (ASTM D792, 23°C)
- Mold Shrinkage: 0.4–0.8% (Internal Standard, 2 mm)
Mechanical Properties
- Tensile Strength: 55 MPa (ASTM D638, 50 mm/min)
- Flexural Strength: 85 MPa (ASTM D790, 2 mm/min)
- Flexural Modulus: 2000 MPa (ASTM D790, 2 mm/min)
- Elongation at Break: 50% (ASTM D638, 50 mm/min)
Impact Properties
Impact Strength (Izod, Notched): 60 kJ/m² (ASTM D256, 3.2 mm, 23°C)
Thermal Properties
Heat Distortion Temperature: 88°C (ASTM D648, 1.8 MPa, 6.4 mm)
Flame Characteristics
Flammability: UL94 V-0 (1.5 mm)
Injection Molding
- Pre-drying Conditions: 80–90°C for 3 hours
- Injection Pressure: 60–100 MPa
- Injection Speed: 50–80 mm/s
- Mold Temperature: 80°C
- Processing Temperature:
- Max: 280°C
- Melt Temperature: 260°C
- Cylinder Temperatures:
- Feeding Zone: 230–250°C
- Compressing Zone: 240–260°C
- Nozzle: 250–270°C
Features & Benefits
Halogen-Free Safety
Ideal for eco-conscious manufacturing, this material eliminates toxic fumes during production or combustion, ensuring compliance with global environmental regulations (e.g., RoHS) for electronics and consumer goods.
Superior Chemical Resistance
It resists oils, solvents, and cleaning agents, preventing degradation in harsh environments—perfect for printer housings, electronic enclosures, and headset components exposed to daily wear.
Optimized Processing & Durability
With high flow (17g/10min MFR) and impact strength (60 KJ/m²), it enables easy molding of thin-walled parts while reducing cracks or failures in high-stress applications like headset hinges.
Use & Applications
- Electrical & Electronic: Connectors, charger cases, power tool housings
- Office Supplies: Printer components, keyboard frames, scanner covers
- Bluetooth Headsets: Durable ear hooks, impact-resistant casings, hinges
