Suke Plastics 3020 PC ABS

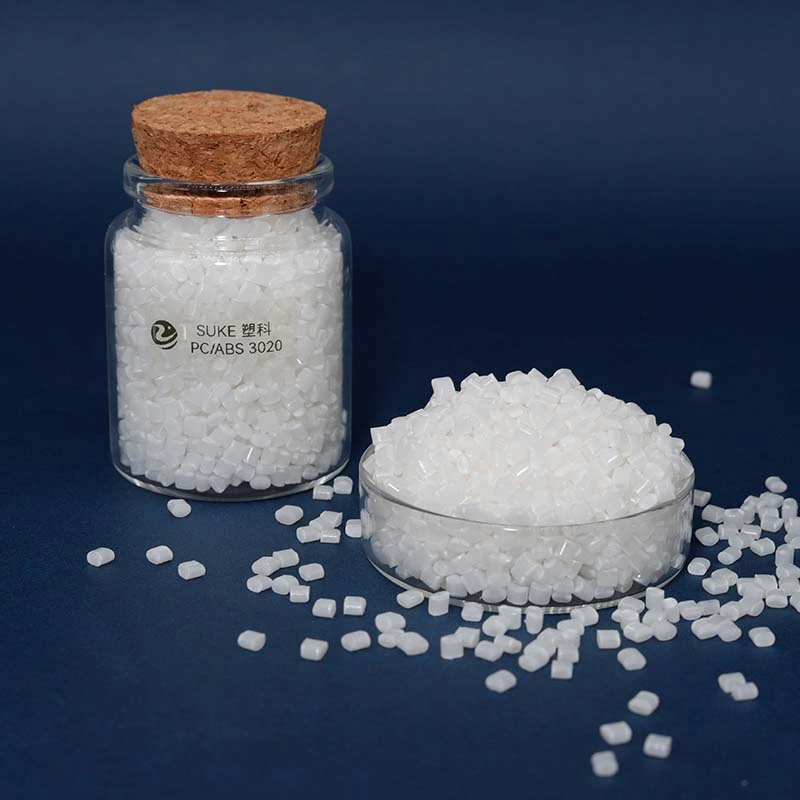

Suke 3020 PC/ABS Resin Flame Retardant Grade
Suke 3020 PC/ABS is a halogen-free, high flame-retardant material engineered for demanding B2B applications. Combining polycarbonate’s toughness with ABS’s processability, it delivers safety, durability, and design flexibility ideal for electronics and office equipment.
Associated Documents
ASTM TDS
Typical property data
Physical Properties
- Density: 1.19 g/cm³ (ASTM D792, 23°C)
- Mold Shrinkage: 0.4–0.8% (ASTM D955, 2mm)
Mechanical Properties
- Tensile Strength: 55 MPa (ASTM D638, 50mm/min)
- Elongation at Break: 80% (ASTM D638, 50mm/min)
- Flexural Strength: 90 MPa (ASTM D790, 2mm/min)
- Flexural Modulus: 2200 MPa (ASTM D790, 2mm/min)
Impact Properties
Impact Strength (Izod Notched): 65 KJ/m² (ASTM D256, 3.2mm, 23°C)
Thermal Properties
Heat Distortion Temperature: 100°C (ASTM D648, 1.8Mpa, 6.4mm)
Flame Characteristics
Flammability Rating: UL94 V-0 (0.8mm thickness)
Injection Molding
- Pre-drying Condition: 90°C–95°C, 3 hours
- Injection Pressure: 60–100 MPa
- Injection Speed: 50–80
- Mold Temperature: 90°C
- Maximum Processing Temperature: 290°C
- Melt Temperature: 270°C
- Cylinder Temperature:
- Feeding Section: 240°C–260°C
- Compression Section: 250°C–270°C
- Nozzle: 260°C–280°C
Features & Benefits
Halogen-Free Safety Assurance
Suke 3020 eliminates toxic halogen emissions, ensuring eco-compliance and safer workplaces—critical for electronics manufacturing where material safety reduces regulatory risks.
Superior Flame Resistance
With UL94 V0 certification (0.8mm), it prevents fire propagation in high-heat environments like power adapters or server housings, minimizing product recalls and liability.
High Impact & Flow Efficiency
65 KJ/m² notched impact strength withstands drops/stress, while 10 g/10min MFR ensures easy molding of thin-walled parts (e.g., laptop bezels), cutting production cycles.
Use & Applications
- Electrical & Electronics: Charger housings, circuit breakers, server components.
- Office Supplies: Printer casings, keyboard frames, ergonomic device parts.
