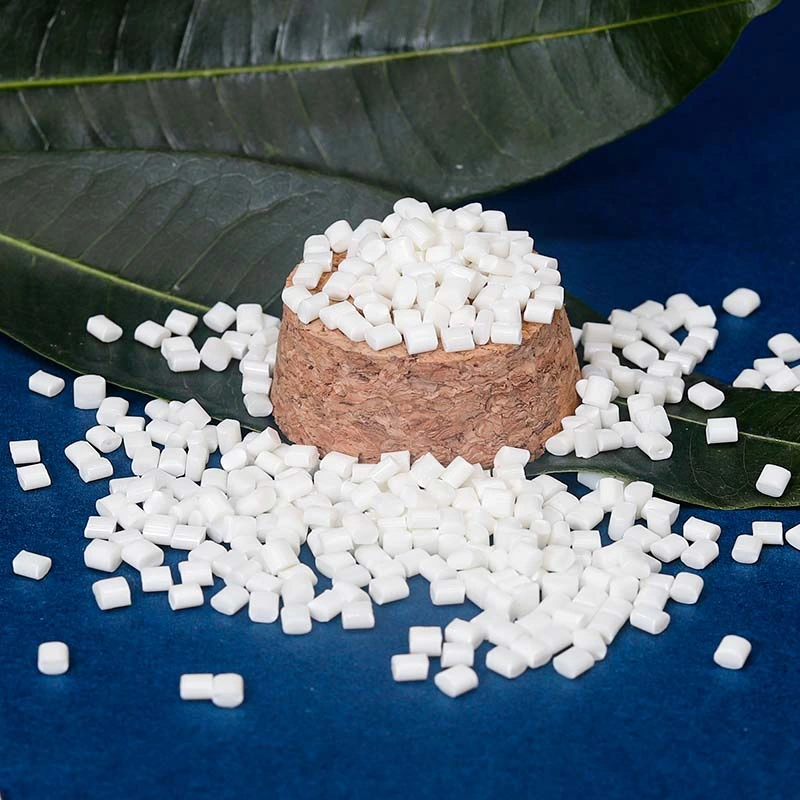

Suke Plastics FR865 ABS Resin
Plastic Granules
Suke FR865 ABS Resin Flame Retardant Grade
Suke FR865 is a premium ABS resin offering exceptional high flame retardancy (UL94 V0 at 1.5mm) and RoHS compliance. Engineered for reliability in demanding applications, it delivers balanced mechanical strength, easy processing, and eco-conscious manufacturing for electronics, printers, and office equipment.
Typical property data
Physical Properties
- Density: 1.17 g/cm³ (ASTM D792, at 23°C)
Mechanical Properties
- Tensile Strength: 40 MPa (ASTM D638, at 50mm/min)
- Elongation at Break: 10% (ASTM D638, at 50mm/min)
- Flexural Strength: 67 MPa (ASTM D790, at 2mm/min)
- Flexural Modulus: 2100 MPa (ASTM D790, at 2mm/min)
Impact Properties
- Izod Notched Impact Strength: 18 KJ/m² (ASTM D256, at 3.2mm, 23°C)
Thermal Properties
- Heat Distortion Temperature: 82°C (ASTM D648, at 0.45 MPa, 6.4mm)
Flame Characteristics
- Flammability Rating: V0 (UL94, at 1.5mm thickness)
Injection Molding
- Pre-drying Temperature and Time: 80°C, 3 hours
- Melt Temperature: 210°C
- Injection Pressure: 60–100 MPa
- Injection Speed: 50–80
- Mold Temperature: 70°C
- Max Processing Temperature: 230°C
Features & Benefits
Superior Fire Safety
UL94 V0 flame rating (1.5mm thickness) ensures critical fire resistance for electrical components and enclosures, enhancing end-product safety and meeting strict industry regulations.
Effortless High-Speed Molding
High melt flow rate (30g/10min) enables fast, consistent filling of complex thin-walled parts like printer casings, reducing cycle times and boosting production efficiency.
Reliable Mechanical Balance
It combines tensile strength (40 MPa) with impact resistance (18 KJ/m²), ensuring durable performance for functional office equipment gears and structural electronic housings.
Use & Applications
- Printers & Copiers: Housings, internal trays, structural frames.
- Electrical & Electronic Components: Connectors, sockets, protective covers, switch housings.
- Office Supplies: Durable casings for monitors, keyboard bases, equipment enclosures.
