Suke Plastics FR865C GL ABS
Plastic Granules

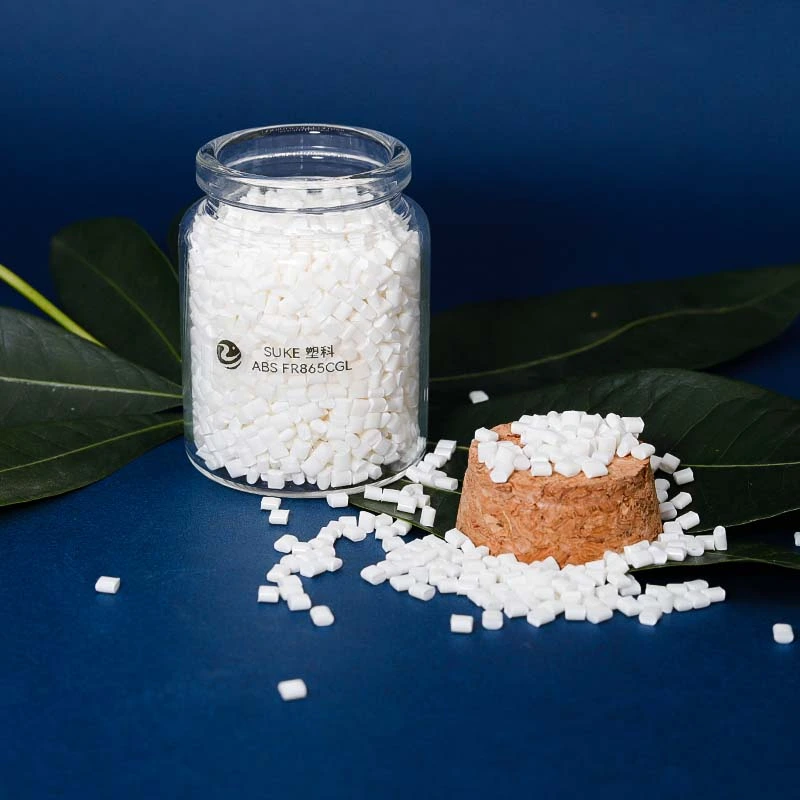

Suke FR865C GL ABS Resin Flame Retardant Grade
Suke FR865C GL is an eco-compliant, flame-retardant ABS resin engineered for high-flow applications. With UL94 V0 certification and RoHS compliance, it delivers exceptional safety and fluidity (40 g/10min MFR), ideal for precision components in electronics, printers, and office equipment.
Associated Documents
ASTM TDS
Typical property data
Physical Properties
- Density: 1.17 g/cm³ (ASTM D792, 23°C)
Mechanical Properties
- Tensile Strength: 40 MPa (ASTM D638, 50mm/min)
- Flexural Strength: 67 MPa (ASTM D790, 2mm/min)
- Flexural Modulus: 2100 MPa (ASTM D790, 2mm/min)
Impact Properties
- Impact Strength (Izod Notched): 16 KJ/m² (ASTM D256, 3.2mm, 23°C)
Thermal Properties
- Heat Distortion Temperature: 82°C (ASTM D648, 0.45 MPa, 6.4mm)
Flame Characteristics
- Flammability: UL 94 V-0 (2.5mm)
Injection Molding
- Pre-drying Condition: 80°C, 3 hours
- Injection Pressure: 60-100 MPa
- Injection Speed: 50-80 (unit unspecified)
- Mold Temperature: 70°C
- Processing Temperature Maximum: 230°C
Features & Benefits
Flame Safety Guaranteed
UL94 V0-rated at 2.5mm thickness, Suke FR865C GL eliminates fire risks in electronics and printers. No redesign needed for flame compliance.
Eco-Compliance Simplified
Passes RoHS standards effortlessly, ensuring global market access for eco-sensitive industries like office supplies and consumer electronics.
Precision Flow Mastery
High fluidity (40 g/10min MFR) enables thin-wall molding and intricate designs, reducing cycle times and production costs.
Use & Applications
- Printers: Fire-safe housings, gears, and structural parts.
- Electrical & Electronics: Connectors, switches, and enclosures requiring V0 compliance.
- Office Supplies: Durable, flame-retardant components for staplers, organizers, and device casings.
