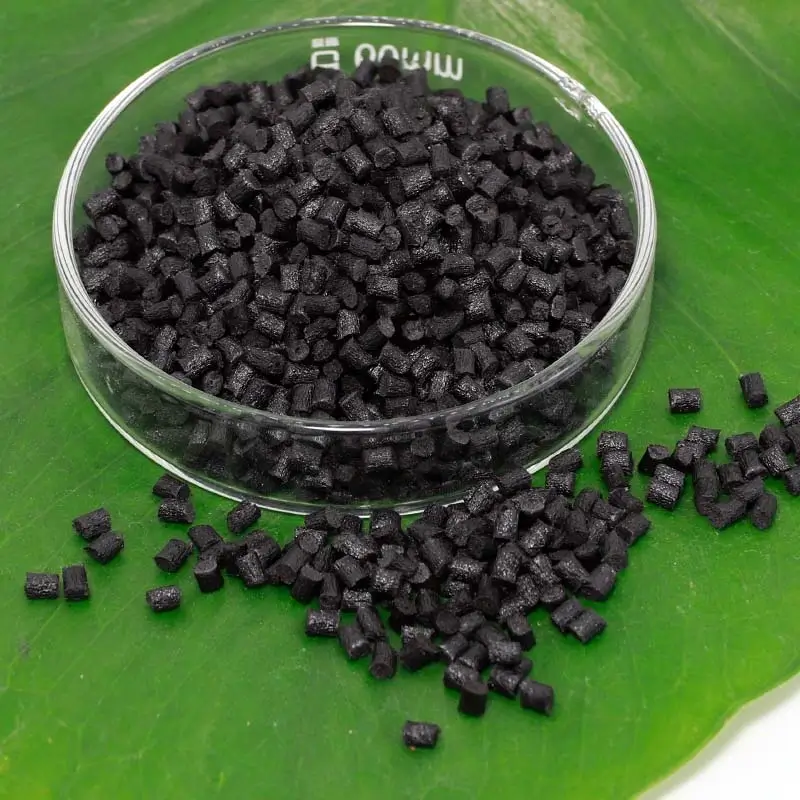

Suke Plastics PA6 FG30B
Plastic Granules
Suke FG30B Nylon 6 PA6 Resin Reinforced Grade
Suke PA6 FG30B is a 30% glass-fiber reinforced nylon resin engineered for high strength, heat resistance (HDT 160–180°C), and UL94 V0 flame retardancy. Ideal for IT, electrical, and appliance industries, it ensures durability, safety, and precision in demanding applications.
Associated Documents
ISD TDS
Typical property data
Physical Properties
- Density: 1.25 ± 0.05 g/cm³ (ISO 1183, tested at 23°C, 10 g sample).
- Linear Mold Shrinkage: 1.1–1.3% (ISO 294, tested at 23°C).
Mechanical Properties
- Tensile Strength: 90 ± 5 MPa (ISO 527, tested at 50 mm/min).
- Elongation at Break: 7.5 ± 0.5% (ISO 527, tested at 50 mm/min).
Impact Properties
- Notched Impact Strength: 10.0 ± 0.5 KJ/m² (ISO 179, tested at 23°C).
Thermal Properties
- Heat Distortion Temperature: 160–180°C (ISO 75, under 1.82 MPa load).
Electrical Properties
- Volume Resistivity: 101510^{15} Ω·cm (ISO 14309, tested at 3.0 mm thickness).
Flame Characteristics
- Flammability Rating: V-0 (UL 94, tested at 3.0 mm thickness).
- Halogen-Free: Environmentally friendly.
Injection Molding
- Drying Temperature: 100–140°C.
- Drying Time: 2–4 hours.
- Cylinder Temperature: 240–260°C.
- Mold Temperature: 80–100°C.
Features & Benefits
High-Temperature Stability
With a heat distortion temperature of 160–180°C, PA6 FG30B resin withstands extreme thermal stress, preventing warping in components like power tool housings or automotive connectors.
Exceptional Mechanical Strength
Tensile strength of 90 MPa and rigid glass fiber reinforcement ensure structural integrity for gears, brackets, and industrial housings under heavy loads or repetitive stress.
Flame-Retardant Safety
UL94 V0 certification minimizes fire risks, making it ideal for circuit breakers, electrical enclosures, and smart device components requiring compliance with strict safety standards.
Use & Applications
- IT & Communications: Server connectors, 5G router housings.
- Electrical Appliances: Circuit breakers, switchgear components.
- Household Appliances: Durable coffee machine gears, vacuum cleaner structural parts.
- Industrial Electrical: Motor housings, relay insulators.
