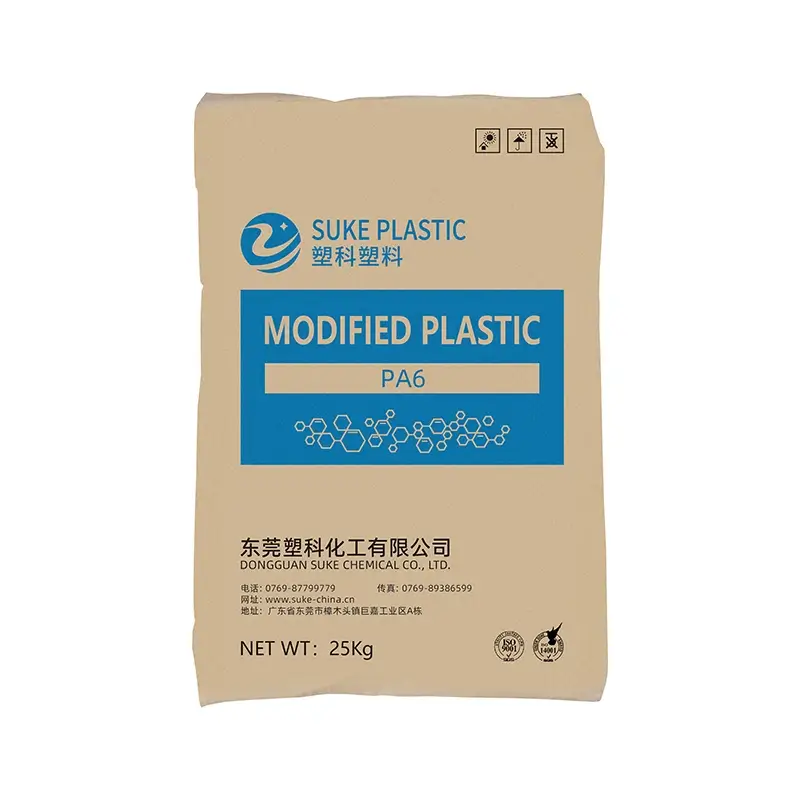

Suke Plastics PA6 YH800

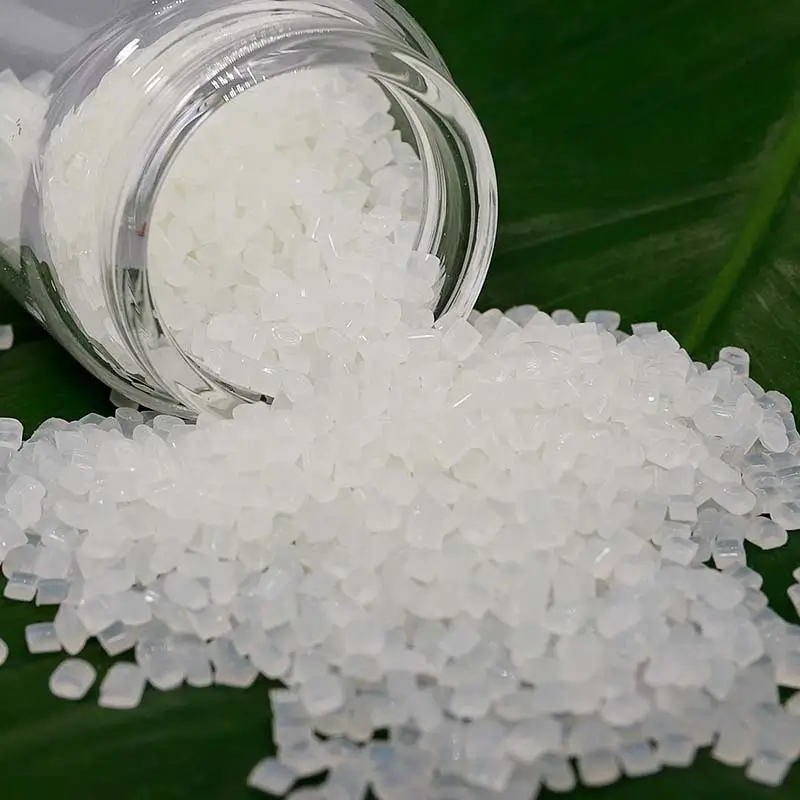

Suke PA6 YH800 Nylon Injection Molding Plastic Granules
Suke PA6 YH800 is a high-performance nylon 6 resin engineered for demanding industrial applications. With exceptional tensile strength (60.7 MPa), impact resistance (20.1 KJ/m²), and heat stability (HDT 71°C), these PA6 granules excel in injection molding grade processes, delivering durable, precision components for automotive, industrial, and electrical systems.
Associated Documents
GB/T TDS
Typical property data
Physical Properties
- Density: 1.156 g/cm³ (GB/T1033-1986)
- Relative Viscosity (RSV): 2.80 ± 0.05 (FZ-T51004-2011)
- Moisture Content: < 0.07% (FZ-T51004-2011)
- Extractables (Monomer Content): < 0.03% (FZ-T51004-2011)
- Molding Shrinkage: 0.93%
Mechanical Properties
- Tensile Strength: 60.7 MPa (GB1040-92)
- Elongation at Break: 48.1% (GB1040-92)
- Flexural Strength: 86.6 MPa (GB9341-88)
- Flexural Modulus: 2087 MPa (GB9341-88)
Impact Properties
- Notched Impact Strength: 20.1 KJ/m² (GB/T1043-93)
Thermal Properties
- Melting Point: 215–220°C
- Heat Distortion Temperature (HDT): 71.0°C (GB1843-79)
Injection Molding
Processing Notes:
- Avoid resin contact with dust and contaminants during production.
- Prevent prolonged residence of molten resin in the heating tube during injection.
- Ensure hot runner system temperatures are not excessively high to avoid material degradation.
- Proper moisture control is critical during high-temperature processing for quality assurance.
Features & Benefits
High Strength, Lightweight Design
Boasting 60.7 MPa tensile strength and a low density (1.156 g/cm³), YH800 Nylon PA6 reduces part weight without sacrificing structural integrity—ideal for automotive brackets or machinery housings.
Toughness Under Stress
With 20.1 KJ/m² notched impact resistance, these PA6 granules withstand sudden shocks, perfect for gears, bearings, or sports equipment prone to high-impact loads.
Heat & Moisture Resistance
Stable up to 71°C (HDT) and minimal moisture absorption (<0.07%), YH800 maintains performance in humid or high-temperature environments, like under-hood automotive parts.
Use & Applications
- Industrial Bearings & Pipes
- Recyclable Automotive Components
- Electrical Insulators
