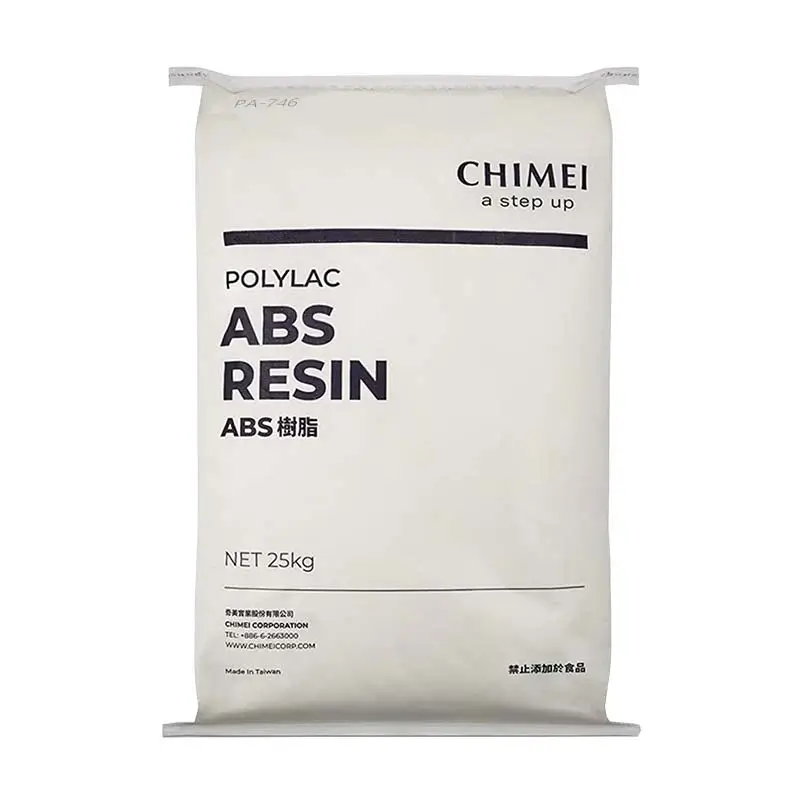

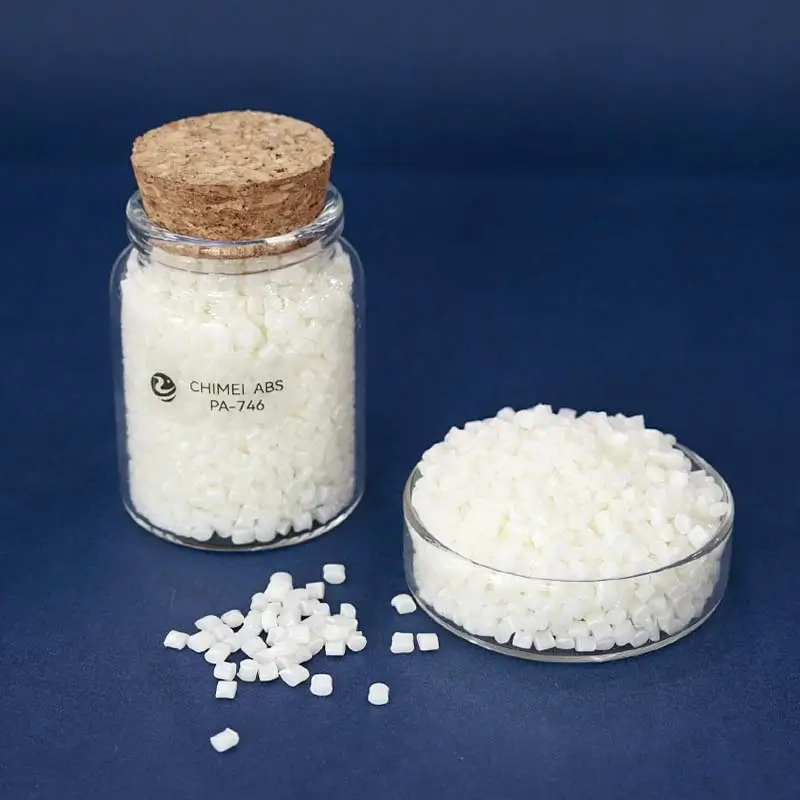

Chimei Polylac PA-746 High Flow Medium Impact ABS Resin

Polylac® PA-746 High Flow Medium Impact ABS Resin

POLYLAC PA-746 is CHIMEI’s high-flow ABS resin. It has a melt flow index of 29 ml/10min and impact strength of 28 KJ/m2. This resin is ideal for thin-wall parts, offering easy molding of complex shapes. It maintains strength at low temperatures and resists heat well. With 39 MPa tensile strength and 60 MPa flexural strength, PA-746 is perfect for gadget cases and appliance components. Manufacturers value its processability and durability.

Application: Suitable for thin wall and high impact strength molding parts
Character: High flowability, high impact strength

ABS Resin

Chimei POLYLAC® ABS Resin

Download

Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides.
All documents are sourced directly from manufacturers and updated regularly for accuracy.

ISO TDS Download

ASTM TDS Download

MSDS Download

UL Product iQ Download

RoHS Download

REACH SVHC Download

Process Guide Download

High Flowability for Complex Designs

Polylac PA-746 ABS by Chimei offers high flowability (29 ml/10min), making it ideal for thin-walled parts. Its easy molding reduces cycle times and ensures smooth, detailed finishes in tight spaces.

Toughness in Any Environment

With high impact strength (28 kJ/m² at 23°C), this ABS resin withstands drops and stress. It performs reliably even at -30°C, perfect for automotive or outdoor gear needing durability.

Heat Resistance & Safety Compliance

PA-746 resists heat (Vicat 103°C) and meets UL94 HB flammability standards. Low mold shrinkage (0.4–0.7%) ensures stable dimensions, while easy processing (pre-dry at 80–85°C) saves time and costs.

Polylac® PA-746 Datasheet

High Flow ABS POLYLAC® PA-746
Product Description: High flow, Medium impact
Properties	ISO Test Method	Test Condition	Unit	PA-746
Melt Flow Index	1133	220℃×10KG	ml/10 min	29
Mass Density	1183	23 ℃	g/cm3	1.03
Tensile Strength	527	50 mm/min, yield	MPa	39
Tensile Strength	527	50 mm/min, break	MPa	29
Tensile Elongation	527	50 mm/min	%	35
Flexural Strength	178	2 mm/min	MPa	60
Flexural Modulus	178	2 mm/min	GPa	1.8
Izod Impact Strength	180/1A	23℃, Notched	KJ/m2	28
Izod Impact Strength	180/1A	-30℃, Notched	KJ/m2	12
Charpy Impact Strength	179	23℃, Notched	KJ/m2	30
Charpy Impact Strength	179	-30℃, Notched	KJ/m2	14
Vicat Softening Temp.	306	50℃/hr;1KG	℃	103
Vicat Softening Temp.	306	50℃/hr;5KG	℃	94
Heat Distortion Temp.	75/A	1.8MPa, unannealed	℃	82
Heat Distortion Temp.	75/A	1.8MPa, annealed	℃	96
Coefficient of Linear Thermal Expansion	11359	–	–	9.2 x 10-5
Flammability	–	UL-94	–	1.5mm HB
Mold Shrinkage	294-4	–	%	0.4~0.7
Symbol	1043	–	–	>ABS<
				March 11, 2024

Polylac® PA-746 UL Product iQ

POLYLAC® PA-746 UL Product iQ
File Number: E56070	Yellow Card™	Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability		ANSI/UL 94
1.5 mm, Color: ALL	HB
3.0 mm, Color: ALL	HB
ISO/IEC FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability		IEC 60695-11-10
1.5 mm, Color: ALL	HB75
3.0 mm, Color: ALL	HB40
ELECTRICAL PROPERTIES	VALUE	TEST METHOD
Hot-wire Ignition (HWI)		UL 746A
1.5 mm	PLC 4
3.0 mm	PLC 3
High Amp Arc Ignition (HAI)		UL 746A
1.5 mm	PLC 0
3.0 mm	PLC 0
Comparative Tracking Index (CTI)	PLC 0	UL 746A
High Voltage Arc Tracking Rate (HVTR)	PLC 2
Volume Resistivity	1.0E+16 ohms·cm	ASTM D257/IEC
		60093
High Voltage, Low Current Arc Resistance	PLC 6
THERMAL PROPERTIES	VALUE	TEST METHOD
Relative Thermal Index – Electrical Strength		UL 746B
1.5 mm	85 °C
3.0 mm	85 °C
Relative Thermal Index – Mechanical Impact		UL 746B
1.5 mm	80 °C
3.0 mm	80 °C
Relative Thermal Index – Mechanical Strength		UL 746B
1.5 mm	85 °C
3.0 mm	85 °C
		Report Date: 1983-06-23
