Kibilac® PW-978W Super High Weather Resistance Automotive

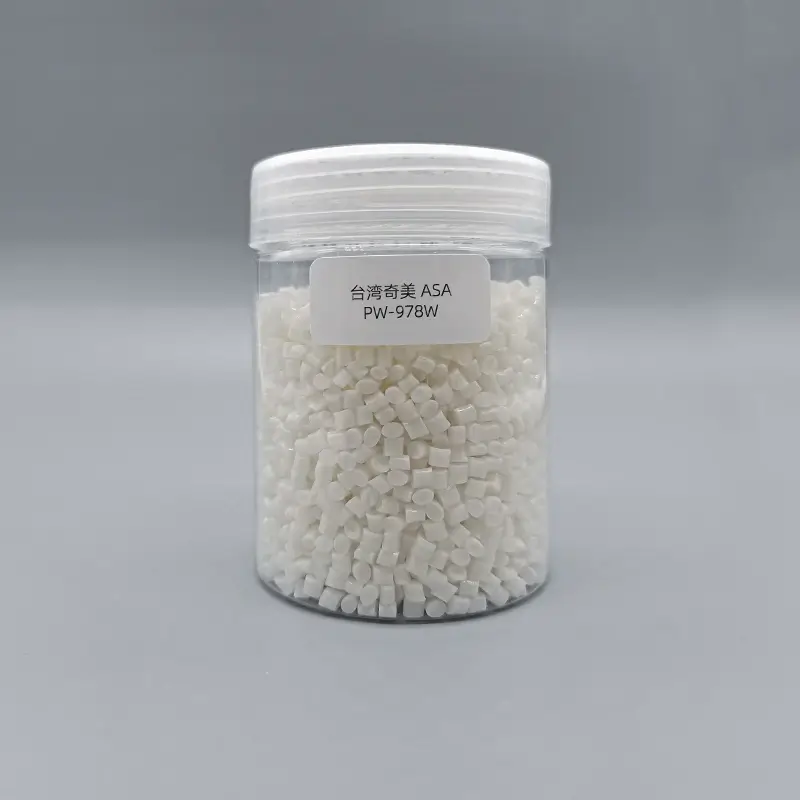

KIBILAC PW-978W is a high-heat ASA resin from CHIMEI, known for its strong weather and heat resistance. It performs well in extreme conditions, making it ideal for long-term outdoor use. With excellent durability and stability, ASA PW-978W is a reliable choice for products that need to last.
- Application: Automotive parts
- Character: Heat resistance/super high weather resistance grade.
Download
Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides.
All documents are sourced directly from manufacturers and updated regularly for accuracy.
Kibilac® PW-978W Datasheet
| High Heat ASA KIBILAC® PW-978W | ||||
| Product Description: Heat resistance, super high weather resistance | ||||
| Properties | ISO Test Method | Test Condition | Unit | PW-978D |
| Melt Flow Index | 1133 | 220℃×10KG | ml/10 min | 9.8 |
| Mass Density | 1183 | 23 ℃ | g/cm3 | 1.07 |
| Tensile Strength | 527 | 50 mm/min, yield | MPa | 49 |
| 50 mm/min, break | MPa | 35 | ||
| Tensile Elongation | 527 | 50 mm/min | % | 30 |
| Flexural Strength | 178 | 2 mm/min | MPa | 75 |
| Flexural Modulus | 178 | 2 mm/min | GPa | 2.3 |
| Izod Impact Strength | 180/1A | 23℃, Notched | KJ/m2 | 10.5 |
| -30℃, Notched | KJ/m2 | 3.8 | ||
| Charpy Impact Strength | 179 | 23℃, Notched | KJ/m2 | 10.5 |
| -30℃, Notched | KJ/m2 | 3.8 | ||
| Vicat Softening Temp. | 306 | 50℃/hr;1KG | ℃ | 114.9 |
| 50℃/hr;5KG | ℃ | 104.6 | ||
| Heat Distortion Temp. | 75/A | 1.8MPa, unannealed | ℃ | 85.6 |
| 1.8MPa, annealed | ℃ | 105.5 | ||
| Coefficient of Linear Thermal Expansion | 11359 | – | – | 9.1 x 10-5 |
| Flammability | – | UL-94 | – | 1.5mm HB |
| Mold Shrinkage | 294-4 | – | % | 0.4~0.7 |
| Symbol | 1043 | – | – | >ASA< |
Kibilac® PW-978W UL Product iQ
| KIBILAC® PW-978W(f1) UL Product iQ | ||
| File Number: E56070 | Yellow Card™ | Acrylonitrile Styrene Acrylate (ASA) “KIBILAC”, furnished as pellets |
| (f1) – Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C. | ||
| FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | ANSI/UL 94 | |
| 1.5 mm, Color: ALL | HB | |
| 3.0 mm, Color: ALL | HB | |
| ISO/IEC FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | IEC 60695-11-10 | |
| 1.5 mm, Color: ALL | HB75 | |
| 3.0 mm, Color: ALL | HB40 | |
| ELECTRICAL PROPERTIES | VALUE | TEST METHOD |
| Hot-wire Ignition (HWI) | UL 746A | |
| 1.5 mm | PLC 4 | |
| 3.0 mm | PLC 4 | |
| High Amp Arc Ignition (HAI) | UL 746A | |
| 1.5 mm | PLC 2 | |
| 3.0 mm | PLC 2 | |
| Comparative Tracking Index (CTI) | PLC 2 | UL 746A |
| High Voltage Arc Tracking Rate (HVTR) | PLC 2 | |
| High Voltage, Low Current Arc Resistance | PLC 5 | |
| THERMAL PROPERTIES | VALUE | TEST METHOD |
| Relative Thermal Index – Electrical Strength | UL 746B | |
| 1.5 mm | 50 °C | |
| 3.0 mm | 50 °C | |
| Relative Thermal Index – Mechanical Impact | UL 746B | |
| 1.5 mm | 50 °C | |
| 3.0 mm | 50 °C | |
| Relative Thermal Index – Mechanical Strength | UL 746B | |
| 1.5 mm | 50 °C | |
| 3.0 mm | 50 °C | |
| PHYSICAL PROPERTIES | VALUE | TEST METHOD |
| UV Exposure & Water Immersion | f1 | UL 746C |
