Polylac® PA-763 Flame Retardant High Impact ABS

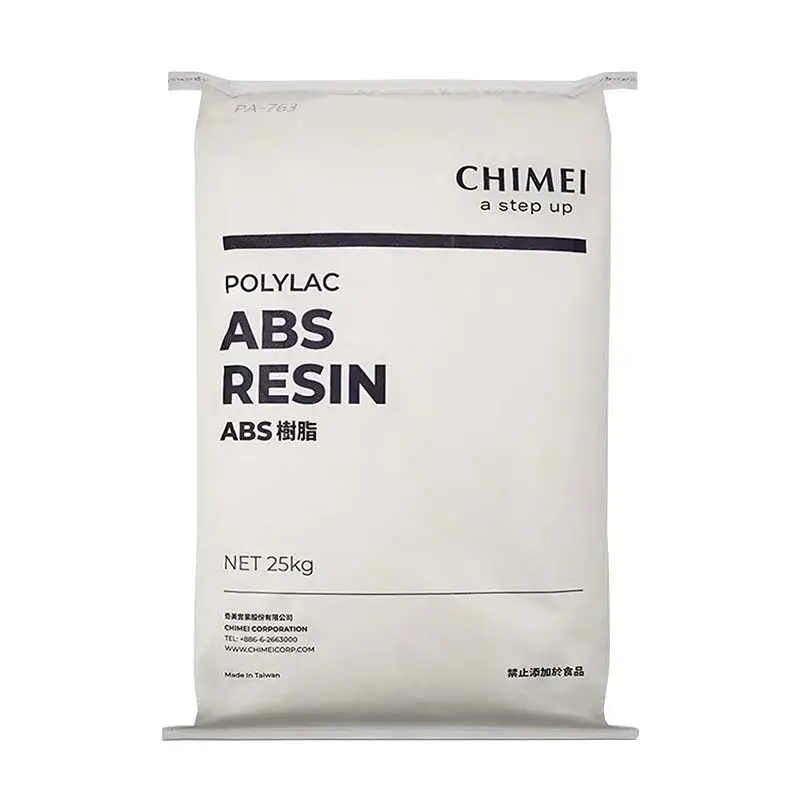

Polylac PA-763 ABS Resin is a high-performance, flame-retardant material designed for safety and durability. It meets 1.5mm V-0 and 2.5mm 5VA fire safety standards (UL-94). Its high impact strength ensures toughness for machine boxes, printer casings, or outdoor use, even in freezing conditions. With heat resistance and low mold shrinkage, PA-763 stays stable in heat-prone applications like coffee machines or displays while ensuring precise, easy molding.
- Application: for electronics like power panels, TV frames, and car audio consoles
- Character: Light-resistance, heat-resistance, high-impact, 1.5mm V-0, 2.5mm 5VA
Download
Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides. All documents are sourced directly from manufacturers and updated regularly for accuracy.
Polylac® PA-763 Datasheet
| Flame Retardant ABS POLYLAC® PA-763 | ||||
| Product Description: F.R.High heat,Weather resistant | ||||
| Properties | ISO Test Method | Test Condition | Unit | PA-763 |
| Melt Flow Index | 1133 | 220℃×10KG | ml/10 min | 25 |
| Mass Density | 1183 | 23 ℃ | g/cm3 | 1.19 |
| Tensile Strength | 527 | 50 mm/min, yield | MPa | 38 |
| 50 mm/min, break | MPa | 29 | ||
| Tensile Elongation | 527 | 50 mm/min | % | 20 |
| Flexural Strength | 178 | 2 mm/min | MPa | 58 |
| Flexural Modulus | 178 | 2 mm/min | GPa | 2 |
| Izod Impact Strength | 180/1A | 23℃, Notched | KJ/m2 | 22 |
| -30℃, Notched | KJ/m2 | 11 | ||
| Charpy Impact Strength | 179 | 23℃, Notched | KJ/m2 | 23 |
| -30℃, Notched | KJ/m2 | 12 | ||
| Vicat Softening Temp. | 306 | 50℃/hr;1KG | ℃ | 103 |
| 50℃/hr;5KG | ℃ | 96 | ||
| Heat Distortion Temp. | 75/A | 1.8MPa, unannealed | ℃ | 86 |
| 1.8MPa, annealed | ℃ | 96 | ||
| Coefficient of Linear Thermal Expansion | 11359 | – | – | 8.5 x 10-5 |
| Flammability | – | UL-94 | – | 1.5mm V-0 |
| 2.5mm 5VA | ||||
| Mold Shrinkage | 294-4 | – | % | 0.3~0.6 |
| Symbol | 1043 | – | – | >ABS-FR(17)< |
Polylac® PA-763 UL Product iQ
| POLYLAC® PA-763 UL Product iQ | ||
| File Number: E56070 | Yellow Card™ | Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets |
| FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | ANSI/UL 94 | |
| 1.5 mm, Color: ALL | V-0 | |
| 2.5 mm, Color: ALL | 5VA | |
| V-0 | ||
| 3.0 mm, Color: ALL | 5VA | |
| V-0 | ||
| ISO/IEC FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | IEC 60695-11-10 | |
| 1.5 mm, Color: ALL | V-0 | |
| 2.5 mm, Color: ALL | V-0 | |
| 3.0 mm, Color: ALL | V-0 | |
| Flammability | IEC 60695-11-20 | |
| 2.5 mm, Color: ALL | 5VA | |
| 3.0 mm, Color: ALL | 5VA | |
| ELECTRICAL PROPERTIES | VALUE | TEST METHOD |
| Hot-wire Ignition (HWI) | UL 746A | |
| 1.5 mm | PLC 4 | |
| 2.5 mm | PLC 3 | |
| High Amp Arc Ignition (HAI) | UL 746A | |
| 1.5 mm | PLC 1 | |
| 2.5 mm | PLC 1 | |
| Comparative Tracking Index (CTI) | PLC 1 | UL 746A |
| High Voltage Arc Tracking Rate (HVTR) | PLC 3 | |
| High Voltage, Low Current Arc Resistance | PLC 7 | |
| THERMAL PROPERTIES | VALUE | TEST METHOD |
| Relative Thermal Index – Electrical Strength | UL 746B | |
| 1.5 mm | 60 °C | |
| 2.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Relative Thermal Index – Mechanical Impact | UL 746B | |
| 1.5 mm | 60 °C | |
| 2.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Relative Thermal Index – Mechanical Strength | UL 746B | |
| 1.5 mm | 60 °C | |
| 2.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| MECHANICAL PROPERTIES | VALUE | TEST METHOD |
| Tensile Strength | 39.7 MPa | ISO 527-2 |
| IMPACT PROPERTIES | VALUE | TEST METHOD |
| Charpy Impact | 19 kJ/m² | ISO 179-1 |
