WONDERLOY® PC-860 General Purpose Grade UV Stabilized
WONDERLOY PC-860 is a high-performance PC/ASA plastic alloy engineered for demanding outdoor and automotive applications. Combining UV resistance (UL 746C f1), high flow efficiency (22 ml/10min), and 1.5mm HB flammability rating, this material ensures durability, design flexibility, and compliance with strict safety standards.
- Character: Weather resistance, High flow, 1.5mm HB
Key technical data (ISO)
- Melt Flow Index: 22 ml/10min
- Tensile Strength: 52 MPa
- Izod Impact (23°C): 50 KJ/m²
- HDT (1.8MPa): 102°C
- Flammability: 1.5mm HB
- UV Rating: UL 746C f1
Applications
- Automotive: Mirror housings, grilles, and trim (resists UV fading and road debris).
- Outdoor Electronics: Junction boxes, LED lamp holders (weatherproof, UL f1 compliant).
- Consumer Durables: Garden tools, sports equipment (impact-resistant, lightweight).
- Industrial: Electrical enclosures, connectors (HB flammability, high flow for precision).
Wonderloy® PC-860 Datasheet
| General WONDERLOY® PC-860 Product Description: UV Stabilized | ||||
| Properties | ISO Test Method | Test Condition | Unit | PC-860 |
| Melt Flow Index | 1133 | 260℃×5KG | ml/10 min | 22 |
| Mass Density | 1183 | 23 ℃ | g/cm3 | 1.13 |
| Tensile Strength | 527 | 50 mm/min, yield | MPa | 52 |
| 50 mm/min, break | MPa | 52 | ||
| Tensile Elongation | 527 | 50 mm/min | % | 110 |
| Flexural Strength | 178 | 2 mm/min | MPa | 80 |
| Flexural Modulus | 2 mm/min | GPa | 2.2 | |
| Izod Impact Strength | 180/1A | 23℃, Notched | KJ/m2 | 50 |
| -30℃, Notched | KJ/m2 | 16 | ||
| Charpy Impact Strength | 179 | 23℃, Notched | KJ/m2 | 50 |
| -30℃, Notched | KJ/m2 | 16 | ||
| Vicat Softening Temp. | 306 | 50℃/hr;1KG | ℃ | 126 |
| 50℃/hr;5KG | ℃ | 119 | ||
| Heat Distortion Temp. | 75/A | 1.8MPa, unannealed | ℃ | 102 |
| Coefficient of Linear Thermal Expansion | 11359 | – | – | 8*10-⁵ |
| Flammability | – | UL-94 | – | 1.5mm HB |
| Mold Shrinkage | 294-4 | – | % | 0.4~0.6 |
| Symbol | 1043 | – | – | >PC+ASA< |
| November 2, 2023 Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test. | ||||
Wonderloy® PC-860 UL Product iQ
| WONDERLOY PC-860(f1) | UL Product iQ | ||

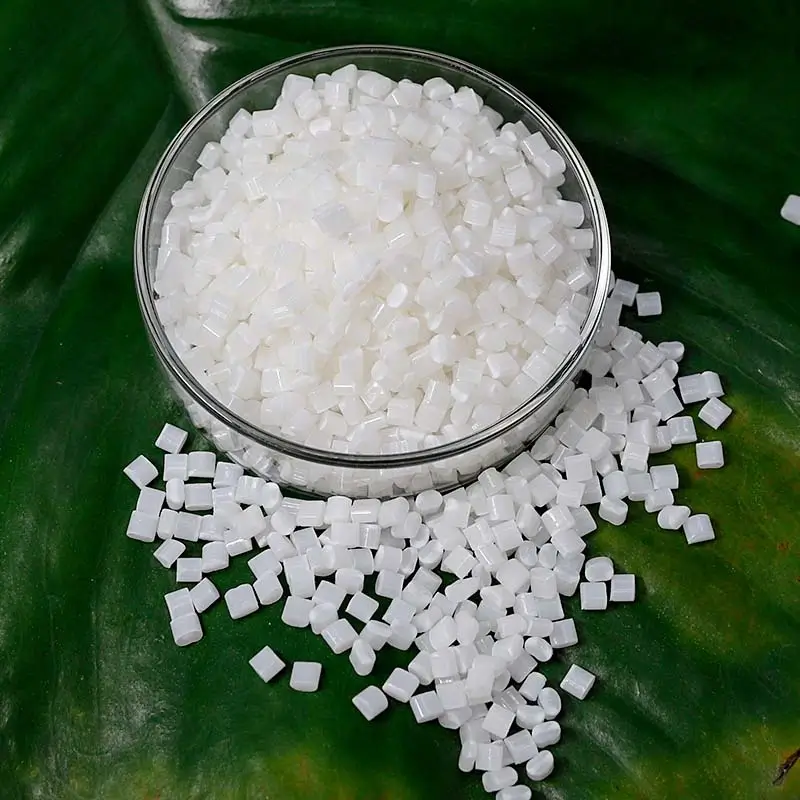

| File Number: E56070 | Yellow Card™ | Polycarbonate/Acrylonitrile Styrene Acrylate (PC/ASA) “WONDERLOY”, furnished as pellets |
| (f1) – Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C. | ||
| This product has not been received for testing as part of UL Follow-Up Services in the past four years and cannot currently be distributed as a UL Certified product. | ||
| FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | ANSI/UL 94 | |
| 1.5 mm, Color: ALL | HB | |
| 3.0 mm, Color: ALL | HB | |
| ISO/IEC FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | IEC 60695-11-10 | |
| 1.5 mm, Color: ALL | HB75 | |
| 3.0 mm, Color: ALL | HB40 | |
| ELECTRICAL PROPERTIES | VALUE | TEST METHOD |
| Hot-wire Ignition (HWI) | UL 746A | |
| 1.5 mm | PLC 4 | |
| 3.0 mm | PLC 3 | |
| High Amp Arc Ignition (HAI) | UL 746A | |
| 1.5 mm | PLC 2 | |
| 3.0 mm | PLC 2 | |
| Comparative Tracking Index (CTI) | PLC 3 | UL 746A |
| Dielectric Strength | 30 kV/mm | ASTM D149 |
| High Voltage Arc Tracking Rate (HVTR) | PLC 4 | |
| Volume Resistivity | 1.0E+12 ohms·cm | ASTM D257/IEC 60093 |
| Surface Resistivity | 1.0E+12 ohms/square | ASTM D257/IEC 60093 |
| High Voltage, Low Current Arc Resistance | PLC 5 | |
| THERMAL PROPERTIES | VALUE | TEST METHOD |
| Relative Thermal Index – Electrical Strength | UL 746B | |
| 1.5 mm | 50 °C | |
| 3.0 mm | 50 °C | |
| Relative Thermal Index – Mechanical Impact | UL 746B | |
| 1.5 mm | 50 °C | |
| 3.0 mm | 50 °C | |
| Relative Thermal Index – Mechanical Strength | UL 746B | |
| 1.5 mm | 50 °C | |
| 3.0 mm | 50 °C | |
| PHYSICAL PROPERTIES | VALUE | TEST METHOD |
| UV Exposure & Water Immersion | f1 | UL 746C |
