Chimei Acrystex® PM-600

Chimei Acrystex PM-600 SMMA Resin MS Resin

Acrystex® PM-600 high Transparency Injection Extrusion Grade SMMA

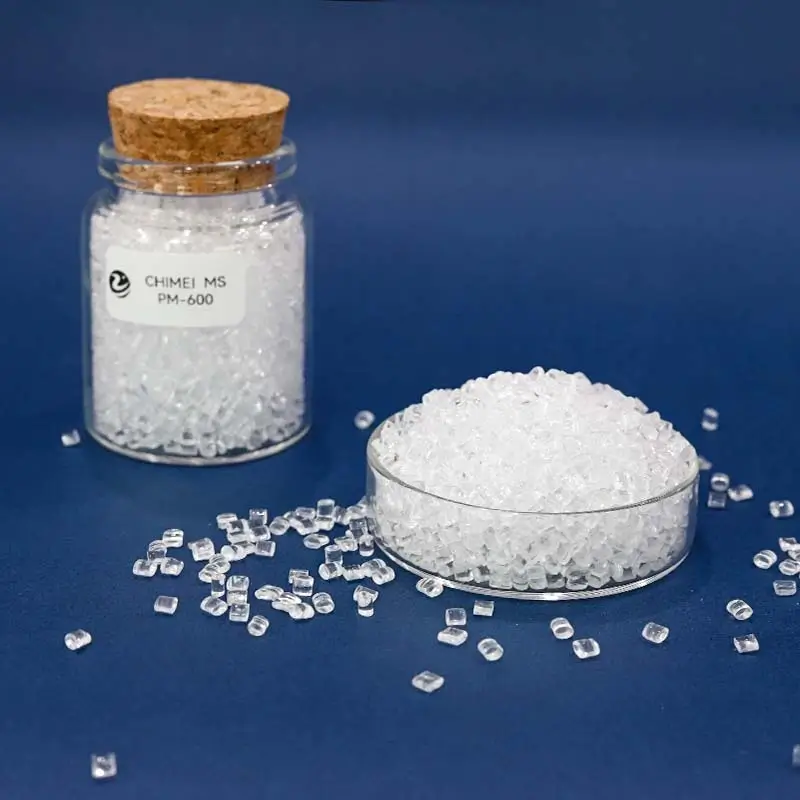

Acrystex PM-600 is a high-clarity SMMA resin produced by CHIMEI. Outstanding clarity makes it perfect for optical components, excellent heat resistance, and good impact strength. PM-600 combines ease of processing with reliable performance, offering a balanced set of mechanical properties.

Application: General injection molding and extrusion molding for optical components, toys, lampshades, OA accessories, food containers, household appliances, building materials
Character: Transparency is close to that of Poly Methylmethacrylate (PMMA).

SMMA Resin

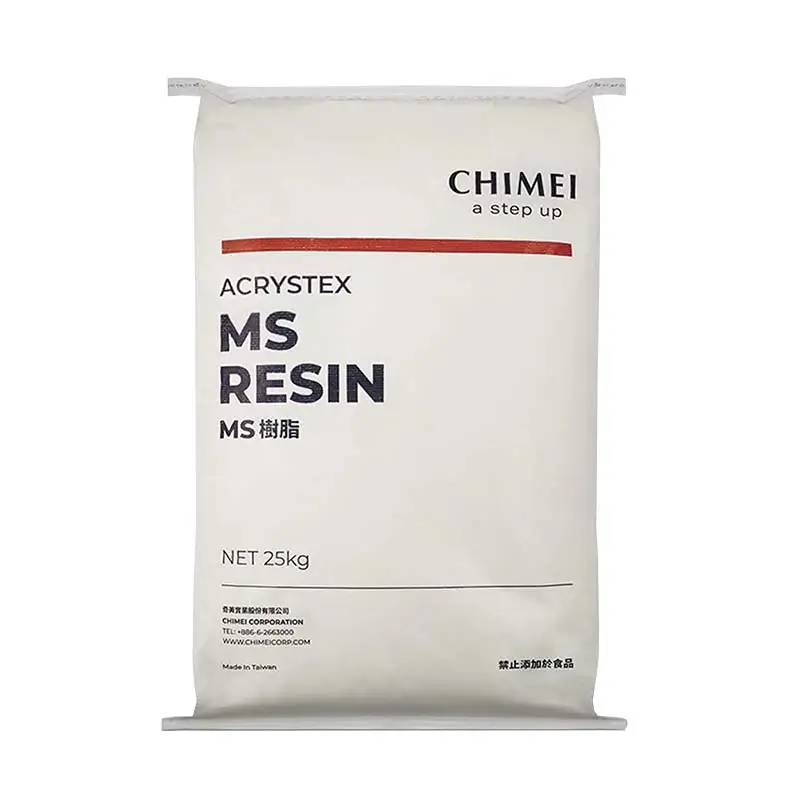

Chimei ACRYSTEX® MS Resin

Download

Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides.
All documents are sourced directly from manufacturers and updated regularly for accuracy.

ISO TDS Download

MSDS Download

UL Product iQ Download

RoHS Download

REACH SVHC Download

Process Guide Download

Crystal-Clear Optical Performance

Acrystex PM-600 offers exceptional clarity, rivaling that of PMMA. Its high transparency makes it ideal for optical components, lampshades, and other applications where visual appeal is crucial.

Versatile Molding Capabilities

This SMMA resin excels in both injection and extrusion molding processes. Its low mold shrinkage (0.3~0.7%) ensures excellent dimensional stability, perfect for crafting precise parts and products.

Heat and Impact Resistant

PM-600 boasts impressive heat resistance with a Vicat softening temperature of 106°C. It also offers good impact strength (3 KJ/m² at 23°C), making it suitable for durable household items and toys.

Acrystex® PM-600 Datasheet

General SMMA ACRYSTEX® PM-600
Product Description: High clarity, Injection grade
Properties	ISO Test Method	Test Condition	Unit	PM-600
Melt Flow Index	1133	200℃×5KG	ml/10 min	1.5
Mass Density	1183	23 ℃	g/cm3	1.12
Tensile Strength	527	50 mm/min, yield	MPa	67
Tensile Strength	527	50 mm/min, break	MPa	–
Tensile Elongation	527	50 mm/min	%	5
Flexural Strength	178	2 mm/min	MPa	90
Flexural Modulus	178	2 mm/min	GPa	2.5
Izod Impact Strength	180/1A	23℃, Notched	KJ/m2	3
Izod Impact Strength	180/1A	-30℃, Notched	KJ/m2	2.7
Charpy Impact Strength	179	23℃, Notched	KJ/m2	2
Charpy Impact Strength	179	-30℃, Notched	KJ/m2	2
Vicat Softening Temp.	306	50℃/hr;1KG	℃	106
Vicat Softening Temp.	306	50℃/hr;5KG	℃	101
Heat Distortion Temp.	75/A	1.8MPa, unannealed	℃	82
Heat Distortion Temp.	75/A	1.8MPa, annealed	℃	97
Coefficient of Linear Thermal Expansion	11359	–	–	5~8 x10-5
Flammability	–	UL-94	–	1.5mm HB
Mold Shrinkage	294-4	–	%	0.3~0.7
Symbol	1043	–	–	>SMMA<

Acrystex® PM-600 UL Product iQ

ACRYSTEX® PM-600 UL Product iQ
File Number: E56070	Yellow Card™	Methylmethacrylate/Styrene (MMA/S) “ACRYSTEX”, furnished as pellets
FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability	HB	ANSI/UL 94
(1.5 to 1.7 mm, Color: ALL)
ISO/IEC FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability	HB75	IEC 60695-11-10
(1.5 to 1.7 mm, Color: ALL)
ELECTRICAL PROPERTIES	VALUE	TEST METHOD
Hot-wire Ignition (HWI)	PLC 5	UL 746A
(1.5 to 1.7 mm)
High Amp Arc Ignition (HAI)	PLC 2	UL 746A
(1.5 to 1.7 mm)
Comparative Tracking Index (CTI)	PLC 2	UL 746A
High Voltage Arc Tracking Rate (HVTR)	PLC 2
High Voltage, Low Current Arc Resistance	PLC 6
THERMAL PROPERTIES	VALUE	TEST METHOD
Relative Thermal Index – Electrical Strength	50 °C	UL 746B
(1.5 to 1.7 mm)
Relative Thermal Index – Mechanical Impact	50 °C	UL 746B
(1.5 to 1.7 mm)
Relative Thermal Index – Mechanical Strength	50 °C	UL 746B
(1.5 to 1.7 mm)
