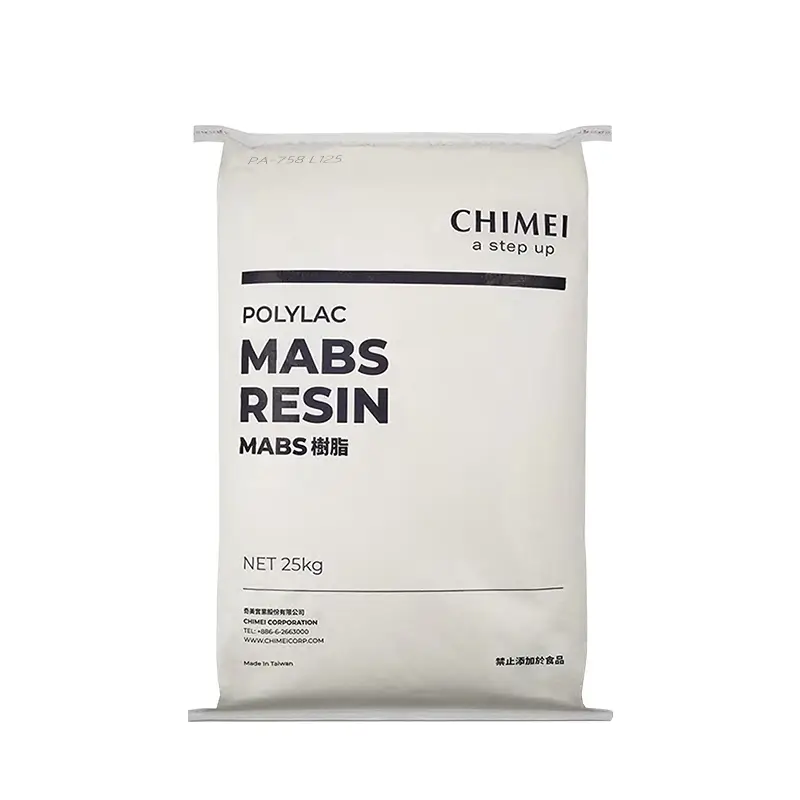

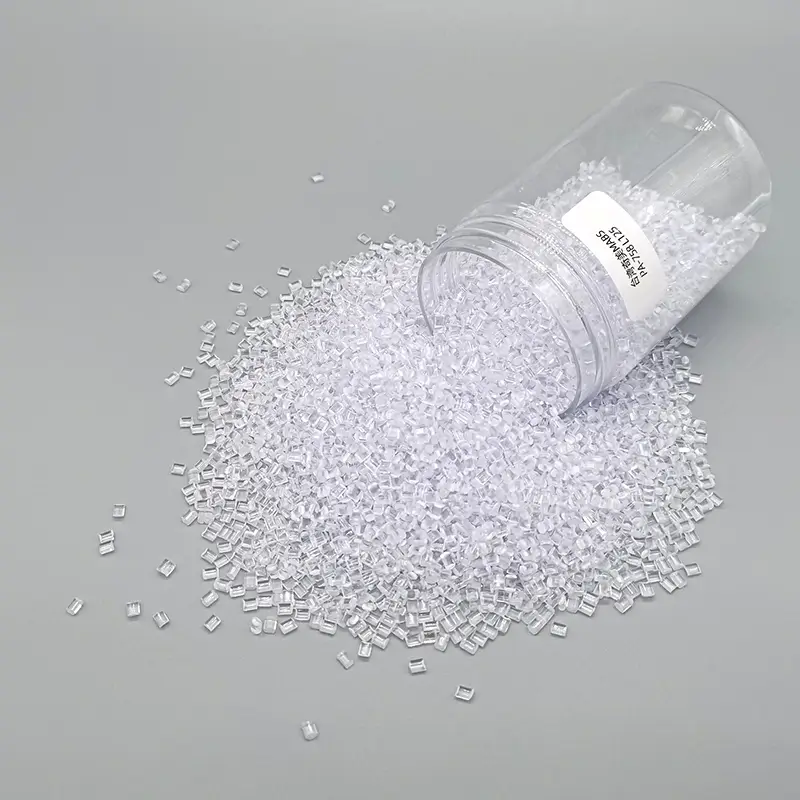

POLYLAC® PA-758 L125 Transparent Grade Blue Tint MABS Resin
POLYLAC PA-758 L125 is a transparent MABS resin with a distinctive blue tint, combining high flowability for intricate molds and durability for demanding applications. Ideal for appliances, electronics, and industrial components requiring clarity, impact resistance, and ease of processing.
- Character: Transparency with blue tint, chemical resistance, comply with Bio-compatibility test (ISO10993)
Key technical data (ISO)
- Melt Flow Index: 3 ml/10 min
- Tensile Strength: 42 MPa (yield)
- Izod Impact (23°C): 14 KJ/m²
- Vicat Softening Temp.: 104°C
- Flammability Rating: UL 94 HB
- Mold Shrinkage: 0.3–0.7%
Applications
- Air conditioning panels: Heat-resistant, scratch-proof surfaces.
- Washing machine covers: Impact-resistant, chemical-resistant housings.
- Vacuum cleaner casings: Lightweight yet durable for daily wear.
- 3C product casings (computers, cameras, communication devices): Sleek transparency for aesthetic tech parts.
- Household appliances: Microwave buttons, blender components.
- Stationery: Transparent rulers, ergonomic tool casings.
Polylac® PA-758_L125 Datasheet
| Transparent MABS POLYLAC® PA-758_L125 Product Description: Transparent blue | ||||
| Properties | ISO Test Method | Test Condition | Unit | PA-758_L125 |
| Melt Flow Index | 1133 | 200℃×5KG | ml/10 min | 3.0 |
| Mass Density | 1183 | 23 ℃ | g/cm3 | 1.08 |
| Tensile Strength | 527 | 50 mm/min, yield | MPa | 42 |
| 50 mm/min, break | MPa | 33 | ||
| Tensile Elongation | 527 | 50 mm/min | % | 35 |
| Flexural Strength | 178 | 2 mm/min | MPa | 57 |
| Flexural Modulus | 2 mm/min | GPa | 1.9 | |
| Izod Impact Strength | 180/1A | 23℃, Notched | KJ/m2 | 14 |
| -30℃, Notched | KJ/m2 | 7 | ||
| Charpy Impact Strength | 179 | 23℃, Notched | KJ/m2 | 14 |
| -30℃, Notched | KJ/m2 | 7 | ||
| Vicat Softening Temp. | 306 | 50℃/hr;1KG | ℃ | 104 |
| 50℃/hr;5KG | ℃ | 96 | ||
| Heat Distortion Temp. | 75/A | 1.8MPa, unannealed | ℃ | 77 |
| 1.8MPa, annealed | ℃ | 97 | ||
| Coefficient of Linear Thermal Expansion | 11359 | – | – | 9.0 x 10-5 |
| Flammability | – | UL-94 | – | 1.5mm HB |
| Mold Shrinkage | 294-4 | – | % | 0.3 ~ 0.7 |
| Symbol | 1043 | – | – | >MABS< |
| March 11, 2024 Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test | ||||
Polylac® PA-758_L125 UL Product iQ
| POLYLAC® PA-758 UL Product iQ | ||
| File Number: E56070 | Yellow Card™ | Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets |
| FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | ANSI/UL 94 | |
| 1.5 mm, Color: ALL | HB | |
| 3.0 mm, Color: ALL | HB | |
| ISO/IEC FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | IEC 60695-11-10 | |
| 1.5 mm, Color: ALL | HB75 | |
| 3.0 mm, Color: ALL | HB40 | |
| ELECTRICAL PROPERTIES | VALUE | TEST METHOD |
| Hot-wire Ignition (HWI) | UL 746A | |
| 1.5 mm | PLC 4 | |
| 3.0 mm | PLC 3 | |
| High Amp Arc Ignition (HAI) | UL 746A | |
| 1.5 mm | PLC 3 | |
| 3.0 mm | PLC 3 | |
| Comparative Tracking Index (CTI) | PLC 0 | UL 746A |
| High Voltage Arc Tracking Rate (HVTR) | PLC 0 | |
| High Voltage, Low Current Arc Resistance | PLC 6 | |
| THERMAL PROPERTIES | VALUE | TEST METHOD |
| Relative Thermal Index – Electrical Strength | UL 746B | |
| 1.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Relative Thermal Index – Mechanical Impact | UL 746B | |
| 1.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Relative Thermal Index – Mechanical Strength | UL 746B | |
| 1.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Report Date: 1983-06-23 | ||
