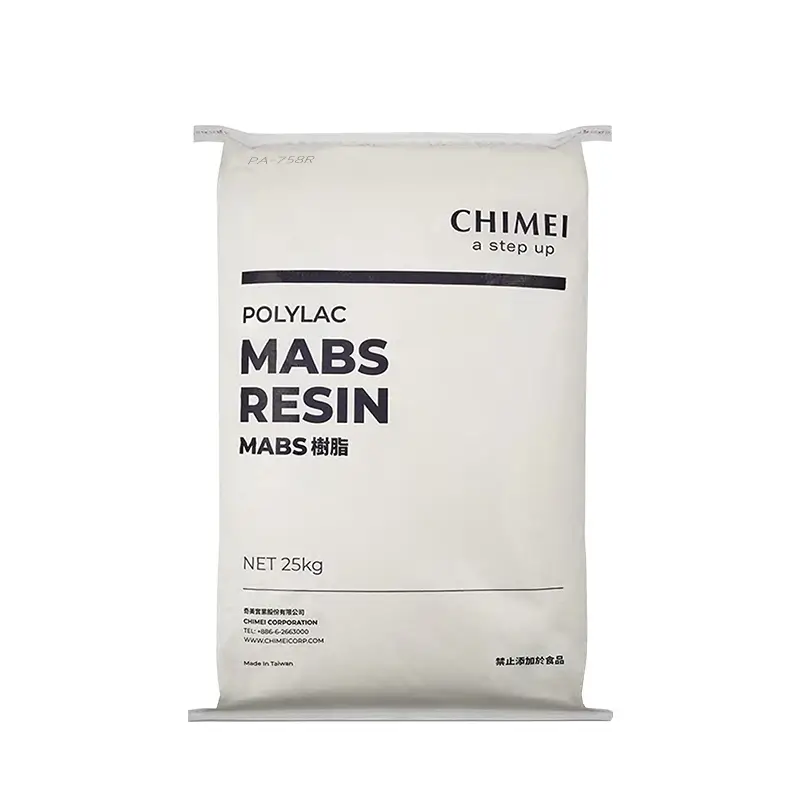

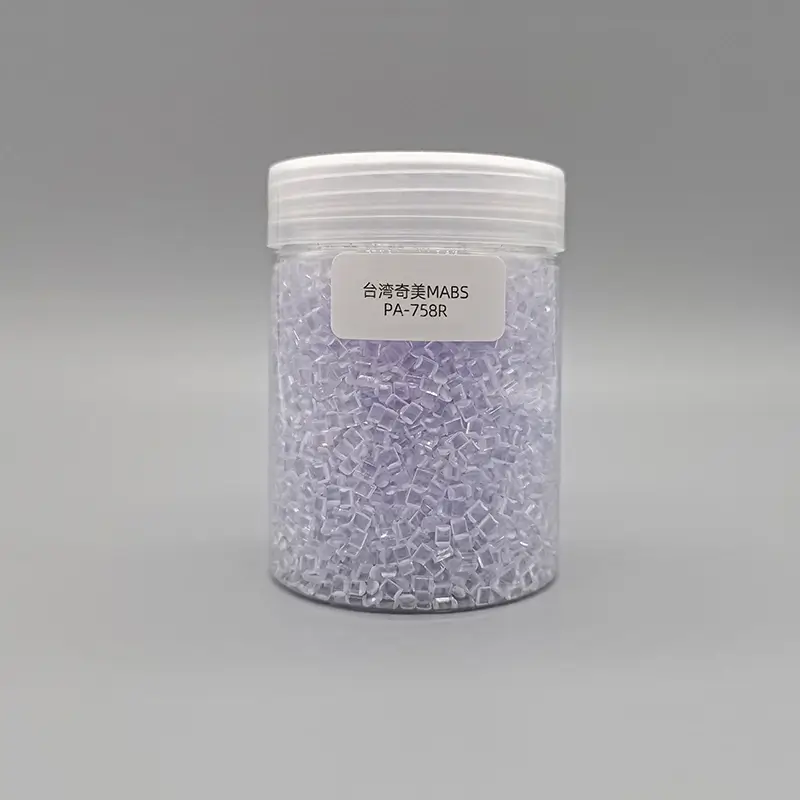

Polylac® PA-758R Transparent with Blue Tint MABS Resin
Polylac PA-758R is a transparent ABS resin by Chimei featuring excellent chemical resistance and high rigidity. This versatile material offers good flowability and consistent colorability, making it ideal for vacuum cleaner casings and washing machine covers. PA-758R combines clarity with durability for lasting performance.
- Application: Air conditioning panels, washing machine covers, vacuum cleaner casings, 3C product casings, household appliances, stationery
- Character: Transparency with blue tint, high rigidity, chemical resistance
Download
Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides.
All documents are sourced directly from manufacturers and updated regularly for accuracy.
Polylac® PA-758R Datasheet
| Transparent MABS POLYLAC® PA-758R | ||||
| Product Description: Transparent, Chemical resistant | ||||
| Properties | ISO Test Method | Test Condition | Unit | PA-758R |
| Melt Flow Index | 1133 | 200℃×5KG | ml/10 min | 2.2 |
| Mass Density | 1183 | 23 ℃ | g/cm3 | 1.08 |
| Tensile Strength | 527 | 50 mm/min, yield | MPa | 45 |
| 50 mm/min, break | MPa | 33 | ||
| Tensile Elongation | 527 | 50 mm/min | % | 45 |
| Flexural Strength | 178 | 2 mm/min | MPa | 62 |
| Flexural Modulus | 178 | 2 mm/min | GPa | 2.1 |
| Izod Impact Strength | 180/1A | 23℃, Notched | KJ/m2 | 15 |
| -30℃, Notched | KJ/m2 | 8 | ||
| Charpy Impact Strength | 179 | 23℃, Notched | KJ/m2 | 15 |
| -30℃, Notched | KJ/m2 | 8 | ||
| Vicat Softening Temp. | 306 | 50℃/hr;1KG | ℃ | 102 |
| 50℃/hr;5KG | ℃ | 94 | ||
| Heat Distortion Temp. | 75/A | 1.8MPa, unannealed | ℃ | 75 |
| 1.8MPa, annealed | ℃ | 95 | ||
| Coefficient of Linear Thermal Expansion | 11359 | – | – | 8.7 x 10-5 |
| Flammability | – | UL-94 | – | 1.5mm HB |
| Mold Shrinkage | 294-4 | – | % | 0.3 ~ 0.7 |
| Symbol | 1043 | – | – | >MABS< |
Polylac® PA-758R UL Product iQ
| POLYLAC® PA-758R UL Product iQ | ||
| File Number: E56070 | Yellow Card™ | Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as sheets |
| FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | ANSI/UL 94 | |
| 1.5 mm, Color: ALL | HB | |
| 3.0 mm, Color: ALL | HB | |
| ISO/IEC FLAMMABILITY PROPERTIES | VALUE | TEST METHOD |
| Flammability | IEC 60695-11-10 | |
| 1.5 mm, Color: ALL | HB75 | |
| 3.0 mm, Color: ALL | HB40 | |
| ELECTRICAL PROPERTIES | VALUE | TEST METHOD |
| Hot-wire Ignition (HWI) | UL 746A | |
| 1.5 mm | PLC 3 | |
| 3.0 mm | PLC 3 | |
| High Amp Arc Ignition (HAI) | UL 746A | |
| 1.5 mm | PLC 0 | |
| 3.0 mm | PLC 0 | |
| Comparative Tracking Index (CTI) | PLC 0 | UL 746A |
| High Voltage Arc Tracking Rate (HVTR) | PLC 0 | |
| High Voltage, Low Current Arc Resistance | PLC 5 | |
| THERMAL PROPERTIES | VALUE | TEST METHOD |
| Relative Thermal Index – Electrical Strength | UL 746B | |
| 1.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Relative Thermal Index – Mechanical Impact | UL 746B | |
| 1.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
| Relative Thermal Index – Mechanical Strength | UL 746B | |
| 1.5 mm | 60 °C | |
| 3.0 mm | 60 °C | |
