Chimei Polylac® PA-704 LRP

By /
Chimei Polylac PA-704 LRP ABS Resin

Polylac® PA-704 LRP Low Monomer Residue Medical ABS

With its excellent compliance standards and impressive mechanical properties, Polylac PA-704 LRP is set to become a key material in the medical industry. Whether it’s making sturdy surgical tools or reliable diagnostic equipment, this Medical ABS resin is a safe and dependable choice for medical applications.

  • Character: Low monomer residue (EU 10/2011 Certification), comply with Bio-compatibility test (ISO10993)
  • Application: Medical Application
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Download

Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides.
All documents are sourced directly from manufacturers and updated regularly for accuracy.

ISO TDSDownload
MSDSDownload
UL Product iQDownload
RoHSDownload
REACH SVHCDownload
Process GuideDownload
Chimei Polylac® PA-704 LRP Application

Safe and Compliant Material

PA-704 LRP features low monomer residue, ensuring compliance with EU 10/2011 standards and ISO 10993 biocompatibility for medical safety.

High Mechanical Performance

This Medical ABS resin offers robust tensile strength, excellent impact resistance, and flexible yet strong properties ideal for various medical applications.

Versatile Application Capabilities

Polylac PA-704 LRP’s adaptability in different temperatures and conditions makes it perfect for diverse medical device manufacturing needs.

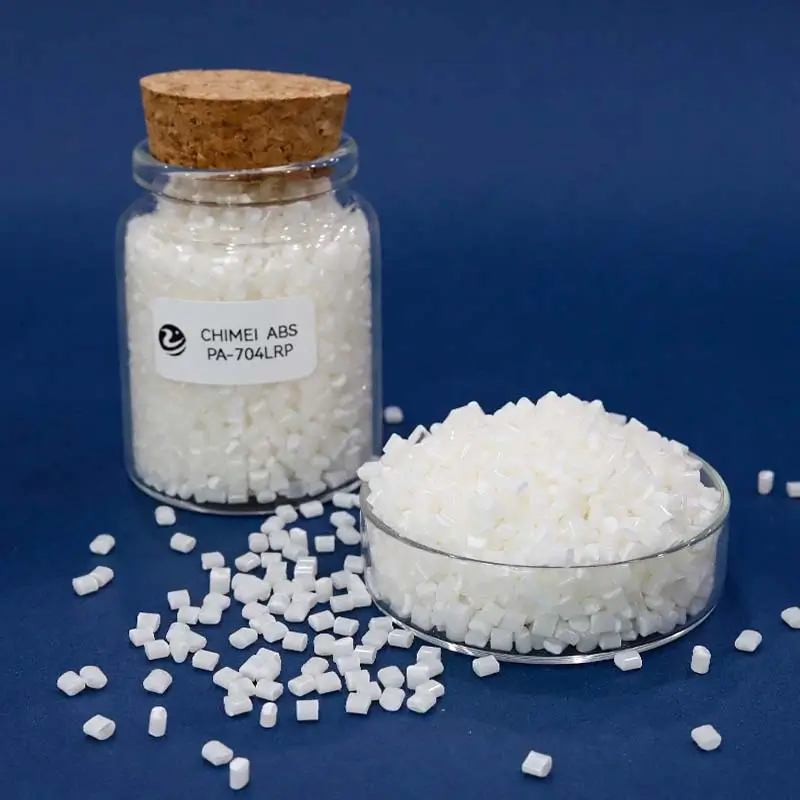

Chimei Polylac® PA-704 LRP

Polylac® PA-704 LRP Datasheet

Medical ABS POLYLAC® PA-704 LRP
Product Description: Low residual monomer, medical application
PropertiesISO Test MethodTest ConditionUnitPA-704 LRP
Melt Flow Index1133220℃×10KGml/10 min17
Mass Density118323  ℃g/cm31.05
Tensile Strength52750 mm/min, yieldMPa47
50 mm/min, breakMPa34
Tensile Elongation52750 mm/min%70
Flexural Strength1782 mm/minMPa76
Flexural Modulus1782 mm/minGPa2.2
Izod Impact Strength180/1A23℃, NotchedKJ/m220
-30℃, NotchedKJ/m29
Charpy Impact Strength17923℃, NotchedKJ/m221
Charpy -30℃, NotchedKJ/m210
Vicat Softening Temp.30650℃/hr;1KG℃104
50℃/hr;5KG℃100
Heat Distortion Temp.75/A1.8MPa, unannealed℃83
1.8MPa, annealed℃98
Coefficient of Linear Thermal Expansion11359––8.6 x 10-5
Flammability–UL-94–1.5mm HB
Mold Shrinkage294-4–%0.4~0.7
Symbol1043––>ABS<
July 22, 2021

Polylac® PA-704 LRP UL Product iQ

POLYLAC® PA-704 LRP UL Product iQ
File Number: E56070Yellow Card™Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.5 mm, Color: ALLHB
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.5 mm, Color: ALLHB75
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.5 mmPLC 4
3.0 mmPLC 3
High Amp Arc Ignition (HAI)UL 746A
1.5 mmPLC 0
3.0 mmPLC 0
Comparative Tracking Index (CTI)PLC 0UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 1
High Voltage, Low Current Arc ResistancePLC 7
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.5 mm85   °C
3.0 mm85   °C
Relative Thermal Index – Mechanical ImpactUL 746B
1.5 mm80   °C
3.0 mm80   °C
Relative Thermal Index – Mechanical StrengthUL 746B
1.5 mm85   °C
3.0 mm85   °C
