Chimei Polylac® PA-726M ABS

By /

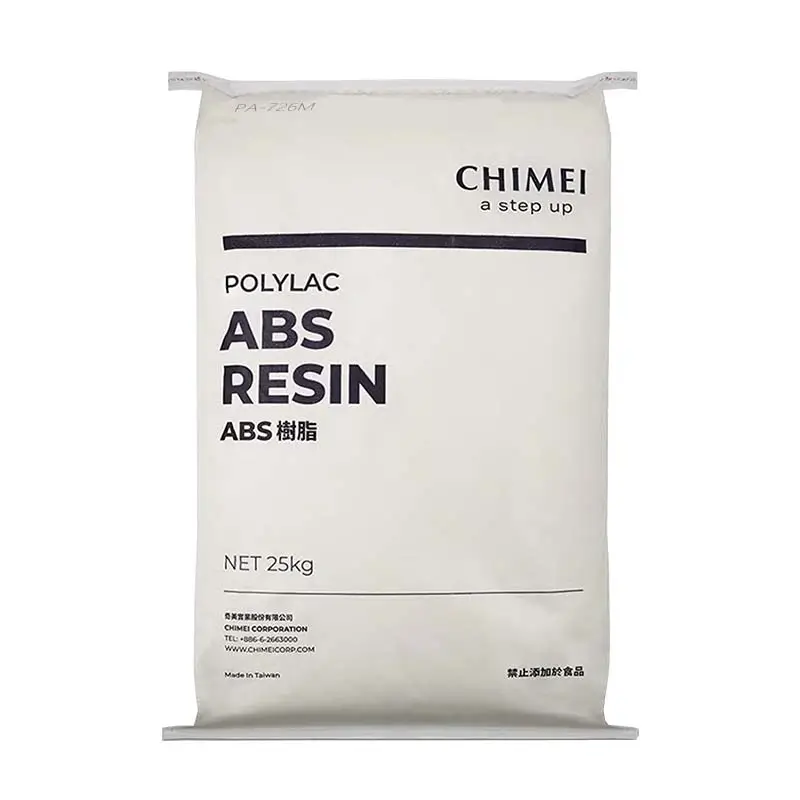

Chimei POLYLAC PA-726M ABS Resin

Polylac® PA-726M Electroplating Grade ABS Material

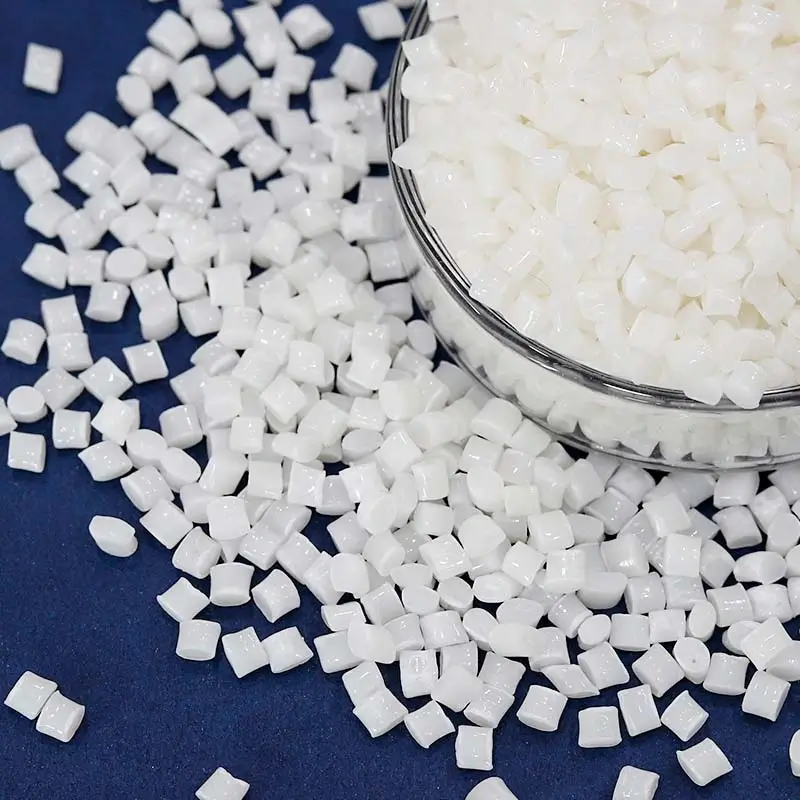

POLYLAC PA-726M is a specialized ABS (Acrylonitrile Butadiene Styrene) resin tailored for electroplating applications. It is furnished as pellets, offering a unique combination of high mechanical strength, excellent thermal properties, and superior plating adhesion. This makes it ideal for industries like automotive and consumer electronics, where both durability and aesthetics are critical.

  • Application: Car radiator front shields, car moldings, car license plates, automotive parts
  • Character: Electroplating dedicated
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data

  • Tensile Strength (Yield): 42 MPa
  • Tensile Elongation:60%
  • Flexural Strength:63 MPa
  • Izod Impact Strength (Notched, 23°C): 20 KJ/m²
  • Vicat Softening Temperature (1KG): 103°C
  • Heat Distortion Temperature (unannealed, 1.8MPa): 81°C
  • Heat Distortion Temperature (annealed, 1.8MPa): 96°C
  • Flammability: UL-94 Rating (1.5mm and 3.0mm), HB
  • Mold Shrinkage Range: 0.4% to 0.7%

Download

ISO TDSDownload
ASTM TDSDownload
MSDSDownload
Process GuideDownload
UL Product iQDownload

Electroplating Compatibility

Tailored for electroplating, POLYLAC PA-726M ensures strong metal layer adhesion for lasting quality and appearance. This is crucial for applications like car license plates. It resolves the pain point of coatings peeling off, ensuring a reliable, high-quality finish that enhances product longevity.

Durable Impact Strength

With an Izod impact strength of 20 KJ/m² at 23°C, POLYLAC PA-726M offers excellent resistance to impacts, making it ideal for robust applications like car radiator front shields. This feature addresses the challenge of parts breaking under minor collisions or vibrations, such as debris hitting the front of a vehicle, ensuring safety and durability.

High Temperature Tolerance

Boasting a Vicat softening temperature of 103°C and a heat distortion temperature (HDT) of 81°C, PA-726M material performs reliably in various thermal conditions. This is essential for car moldings near engines, where heat exposure is common, preventing deformation and maintaining structural integrity, thus solving the issue of parts failing in high-temperature environments.

Chimei POLYLAC PA-726M ABS

Applications

  • Car Radiator Front Shields
  • Car Moldings
  • Car License Plates
  • Other Automotive Parts
Chimei POLYLAC PA-726M application

Polylac® PA-726M Datasheet

Electroplating ABS POLYLAC®  PA-726M
Product Description: Electroplating
PropertiesISO Test MethodTest ConditionUnitPA-726M
Melt Flow Index1133 220℃×10KGml/10 min23
Mass Density1183 23 ℃g/cm31.04
Tensile Strength527 50 mm/min, yieldMPa42
50 mm/min, breakMPa32
Tensile Elongation527 50 mm/min%60
Flexural Strength178 2 mm/minMPa63
Flexural Modulus2 mm/minGPa2.1
Izod Impact Strength180/1A23℃, NotchedKJ/m220
-30℃, NotchedKJ/m29
Charpy Impact Strength179 23℃, NotchedKJ/m222
-30℃, NotchedKJ/m210
Vicat Softening Temp.306 50℃/hr;1KG℃103
50℃/hr;5KG℃95
Heat Distortion Temp.75/A1.8MPa, unannealed℃81
1.8MPa, annealed℃96
Coefficient of Linear Thermal Expansion11359 ––8.7 x 10-5
Flammability–UL-94–1.5mm HB
Mold Shrinkage294-4–%0.4~0.7
Symbol1043 ––>ABS<
March  12, 2025
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

Polylac® PA-726M UL Product iQ

POLYLAC® PA-726M | UL Product iQ
File Number: E56070Yellow Card™Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.5 mm, Color: ALLHB
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.5 mm, Color: ALLHB75
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.5 mmPLC 5
3.0 mmPLC 4
High Amp Arc Ignition (HAI)UL 746A
1.5 mmPLC 0
3.0 mmPLC 0
Comparative Tracking Index (CTI)PLC 0UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 0
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.5 mm60   °C
3.0 mm60   °C
Relative Thermal Index – Mechanical ImpactUL 746B
1.5 mm60   °C
3.0 mm60   °C
Relative Thermal Index – Mechanical StrengthUL 746B
1.5 mm60   °C
3.0 mm60   °C
