Chimei Polylac® PA-747H ABS

By /

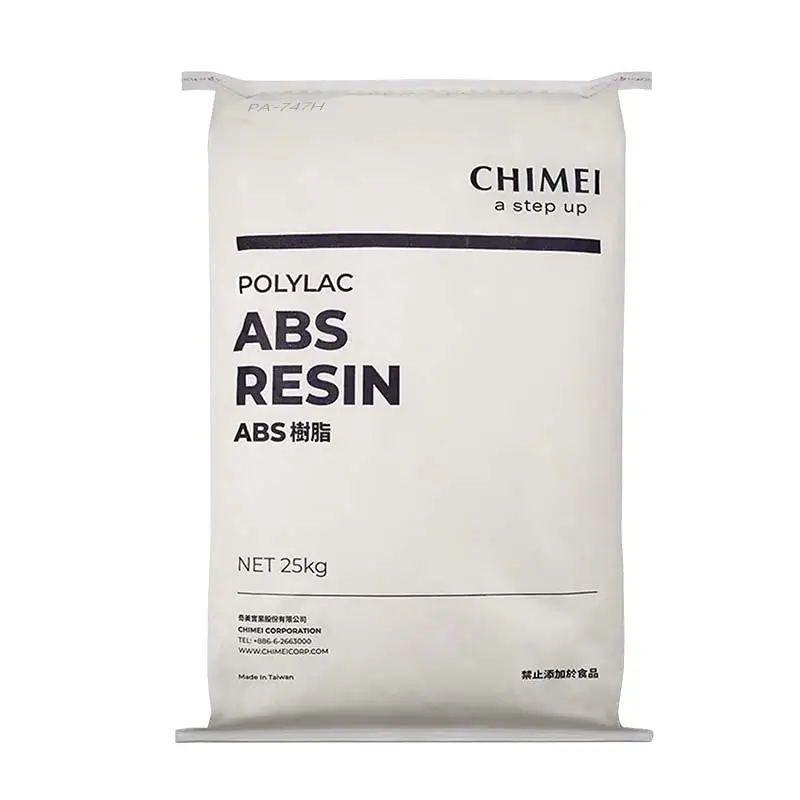

Chimei POLYLAC PA-747H ABS Resin

Polylac® PA-747H Extrusion Grade Refrigerator Plating


POLYLAC PA-747H ABS resin combines exceptional chemical resistance, vacuum-forming ease, and superior plating adhesion, making it ideal for refrigerator components. Engineered for extrusion processes, this material ensures durability, dimensional stability, and a flawless surface finish for high-demand industrial applications.

  • Application: Refrigerator plating materials
  • Character: Chemical resistance/vacuum forming/refrigerator plating materials
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Melt Flow Index: 3 ml/10 min (220°C, 10 KG)
  • Tensile Strength: 46 MPa (yield)
  • Izod Impact (23°C): 33 KJ/m²
  • Heat Distortion Temp: 84°C (1.8 MPa)
  • Flammability (UL 94): HB Rating

Download

ISO TDSDownload
ASTM TDSDownload
MSDSDownload
Process GuideDownload
UL Product iQDownload

High Impact Resistance

POLYLAC PA-747H excels in toughness, with 33 KJ/m² Izod impact strength at 23°C and 22 KJ/m² at -30°C. This ensures parts like refrigerator handles or trim resist cracking in cold environments, reducing breakage during transport or daily use.

Thermal Stability

With a heat distortion temperature of 84°C (1.8 MPa), this ABS resin maintains shape under heat, preventing warping during plating processes. Perfect for oven-finished refrigerator panels that require consistent quality.

Easy Processing

A melt flow index of 3 ml/10 min (220°C) and low mold shrinkage (0.4–0.7%) streamline extrusion and molding. This reduces production downtime and material waste, ideal for high-volume refrigerator plating material manufacturing.

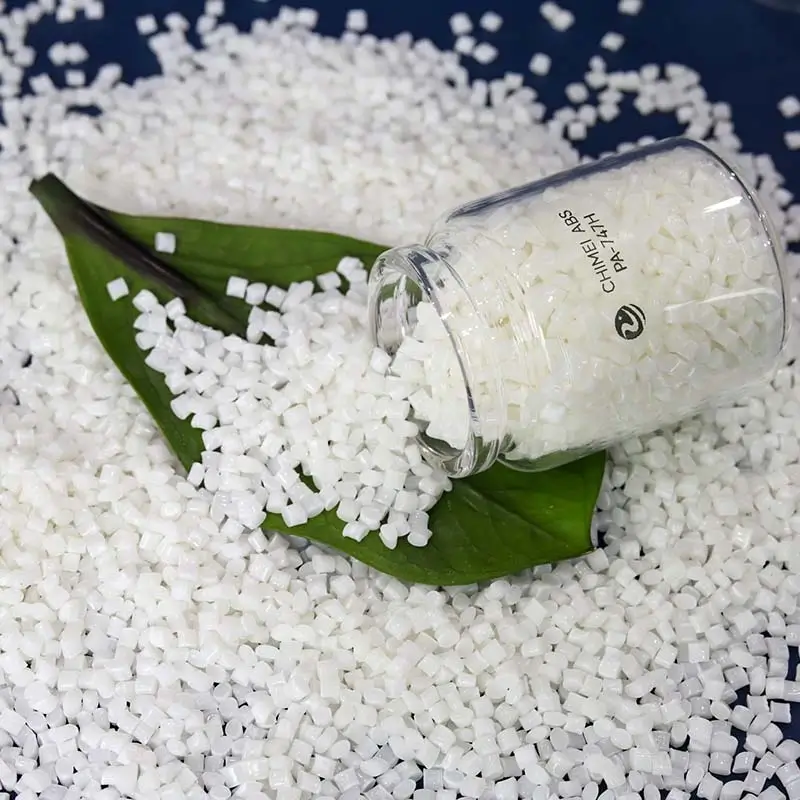

Chimei POLYLAC PA-747H ABS

Applications

  • Refrigerator Plating Materials: Door panels, interior trim, and decorative components requiring glossy, scratch-resistant finishes.
  • Commercial/Industrial Appliances: Vacuum-formed parts like freezer liners or dishwasher panels.
  • Extrusion-Based Components: Seals, profiles, and decorative edges with consistent dimensional accuracy.
Chimei POLYLAC PA-747H application

Polylac® PA-747H Datasheet

Extrusion ABS POLYLAC®  PA-747H
Product Description: Refrigerator, Extrusion
PropertiesISO Test MethodTest ConditionUnitPA-747H
Melt Flow Index1133 220℃×10KGml/10 min3
Mass Density1183 23 ℃g/cm31.05
Tensile Strength527 50 mm/min, yieldMPa46
50 mm/min, breakMPa35
Tensile Elongation527 50 mm/min%25
Flexural Strength178 2 mm/minMPa63
Flexural Modulus2 mm/minGPa1.8
Izod Impact Strength180/1A23℃, NotchedKJ/m233
-30℃, NotchedKJ/m222
Charpy Impact Strength179 23℃, NotchedKJ/m235
-30℃, NotchedKJ/m224
Vicat Softening Temp.306 50℃/hr;1KG℃106
50℃/hr;5KG℃99
Heat Distortion Temp.75/A1.8MPa, unannealed℃84
1.8MPa, annealed℃100
Coefficient of Linear Thermal Expansion11359 ––8.7 x 10-5
Flammability–UL-94–1.0mm HB
Mold Shrinkage294-4–%0.4~0.7
Symbol1043 ––>ABS<
March  12, 2025
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

Polylac® PA-747H UL Product iQ

POLYLAC® PA-747H | UL Product iQ
File Number: E56070Yellow Card™Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.0 mm, Color: ALLHB
1.5 mm, Color: ALLHB
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.0 mm, Color: ALLHB75
1.5 mm, Color: ALLHB75
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.5 mmPLC 4
3.0 mmPLC 3
High Amp Arc Ignition (HAI)UL 746A
1.5 mmPLC 0
3.0 mmPLC 0
Comparative Tracking Index (CTI)PLC 0UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 0
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.0 mm60   °C
1.5 mm60   °C
3.0 mm60   °C
Relative Thermal Index – Mechanical ImpactUL 746B
1.0 mm60   °C
1.5 mm60   °C
3.0 mm60   °C
Relative Thermal Index – Mechanical StrengthUL 746B
1.0 mm60   °C
1.5 mm60   °C
3.0 mm60   °C
