Chimei Polylac® PA-747R ABS

By /

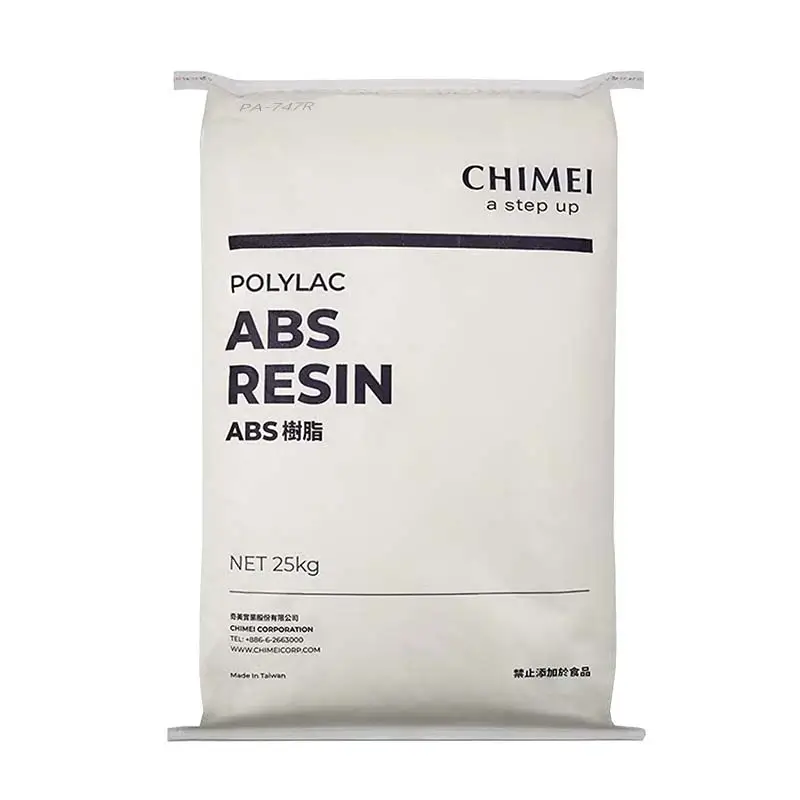

Chimei POLYLAC PA-747R ABS Resin

Polylac® PA-747R Extrusion Grade High Impact Strength


Polylac PA-747R ABS resin is a high-impact extrusion-grade material engineered for durability and thermal stability. Ideal for luggage, refrigerator plating, and industrial profiles, it combines smooth processing with exceptional strength, even in extreme temperatures.

  • Character: High impact strength profile extrusion materials
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Melt Flow Index: 2.5 ml/10 min (220°C, 10kg)
  • Impact Strength: 37 KJ/m² (23°C) / 26 KJ/m² (-30°C)
  • Thermal Stability: Vicat 106°C / HDT up to 99°C
  • Flammability: UL94 HB (1.5mm)
  • Mold Shrinkage: 0.4–0.7%

Download

ISO TDSDownload
ASTM TDSDownload
MSDSDownload
Process GuideDownload
UL Product iQDownload

Optimized for Extrusion Efficiency

With a melt flow index of 2.5 ml/10 min, POLYLAC® PA-747R ensures smooth, consistent extrusion for complex profiles. Reduces production downtime and waste, perfect for high-volume manufacturing of automotive trims or appliance components.

Unmatched Impact Resistance

Delivering 37 KJ/m² Izod impact strength (23°C) and 26 KJ/m² at -30°C, this Extrusion ABS withstands drops, impacts, and harsh environments. Ideal for rugged luggage cases or outdoor equipment that demands reliability.

Heat-Resistant Performance

A Vicat softening temperature of 106°C and heat distortion temperature of 83–99°C ensures structural integrity under heat. Critical for refrigerator plating or components exposed to temperature fluctuations.

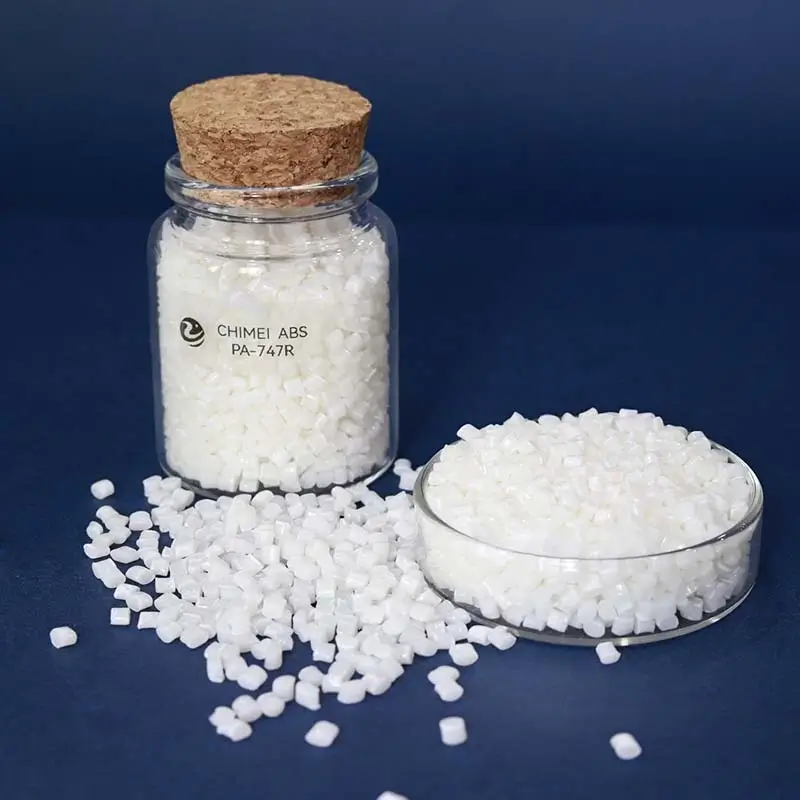

Chimei POLYLAC PA-747R ABS

Applications

  • Extrusion Materials: Automotive trims, window seals, and industrial profiles requiring consistent finish.
  • Luggage/Suitcases: Lightweight yet impact-resistant shells for travel gear.
  • Refrigerator Plating: Glossy, heat-resistant surfaces that maintain aesthetics in appliances.
Chimei POLYLAC PA-747R application

Polylac® PA-747R Datasheet

Extrusion ABS POLYLAC®  PA-747R
Product Description: Extrusion
PropertiesISO Test MethodTest ConditionUnitPA-747R
Melt Flow Index1133 220℃×10KGml/10 min2.5
Mass Density1183 23 ℃g/cm31.04
Tensile Strength527 50 mm/min, yieldMPa41
50 mm/min, breakMPa30
Tensile Elongation527 50 mm/min%30
Flexural Strength178 2 mm/minMPa61
Flexural Modulus2 mm/minGPa1.7
Izod Impact Strength180/1A23℃, NotchedKJ/m237
-30℃, NotchedKJ/m226
Charpy Impact Strength179 23℃, NotchedKJ/m239
-30℃, NotchedKJ/m228
Vicat Softening Temp.306 50℃/hr;1KG℃106
50℃/hr;5KG℃99
Heat Distortion Temp.75/A1.8MPa, unannealed℃83
1.8MPa, annealed℃99
Coefficient of Linear Thermal Expansion11359 ––9.1 x 10-5
Flammability–UL-94–1.5mm HB
Mold Shrinkage294-4–%0.4~0.7
Symbol1043 ––>ABS<
March  12, 2025
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

Polylac® PA-747R UL Product iQ

POLYLAC® PA-747R | UL Product iQ
File Number: E56070Yellow Card™Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.5 mm, Color: ALLHB
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.5 mm, Color: ALLHB75
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.5 mmPLC 4
3.0 mmPLC 4
High Amp Arc Ignition (HAI)UL 746A
1.5 mmPLC 0
3.0 mmPLC 0
Comparative Tracking Index (CTI)PLC 1UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 0
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.5 mm60   °C
3.0 mm60   °C
Relative Thermal Index – Mechanical ImpactUL 746B
1.5 mm60   °C
3.0 mm60   °C
Relative Thermal Index – Mechanical StrengthUL 746B
1.5 mm60   °C
3.0 mm60   °C
