Chimei KibisanĀ® PN-117 L100

By /

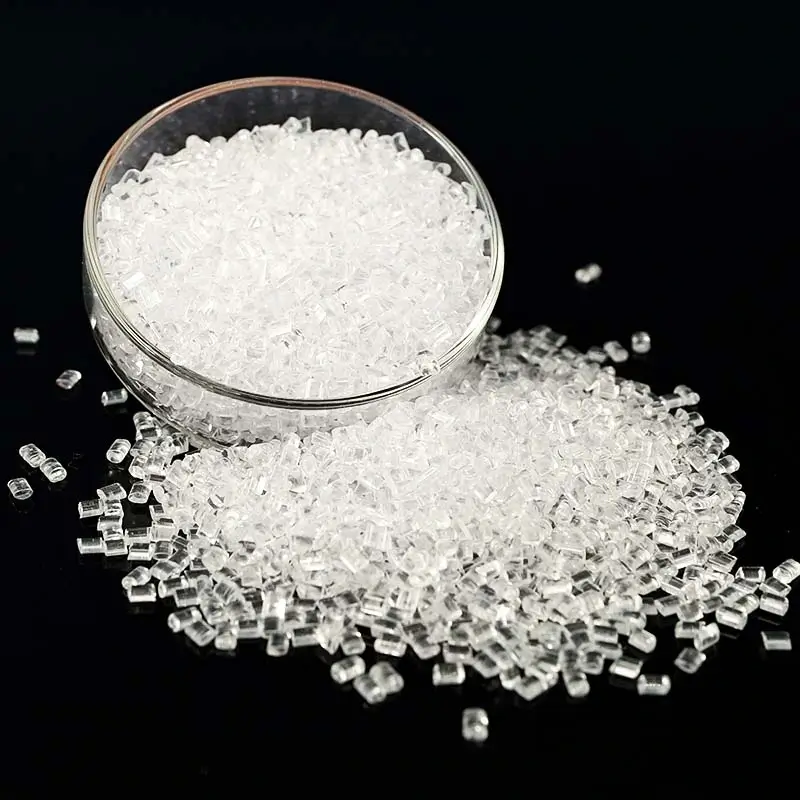

Chimei Kibisan PN-117 L100 SAN Resin

KibisanĀ® PN-117 L100 General Purpose Injection Molding

KIBISAN PN-117 L100 is a premium SAN resin engineered for high-clarity, rigid applications. With excellent flow properties (32 ml/10min melt flow), thermal stability (Vicat 104Ā°C), and superior tensile strength (68 MPa), itā€™s ideal for precision injection-molded products requiring durability and transparency.

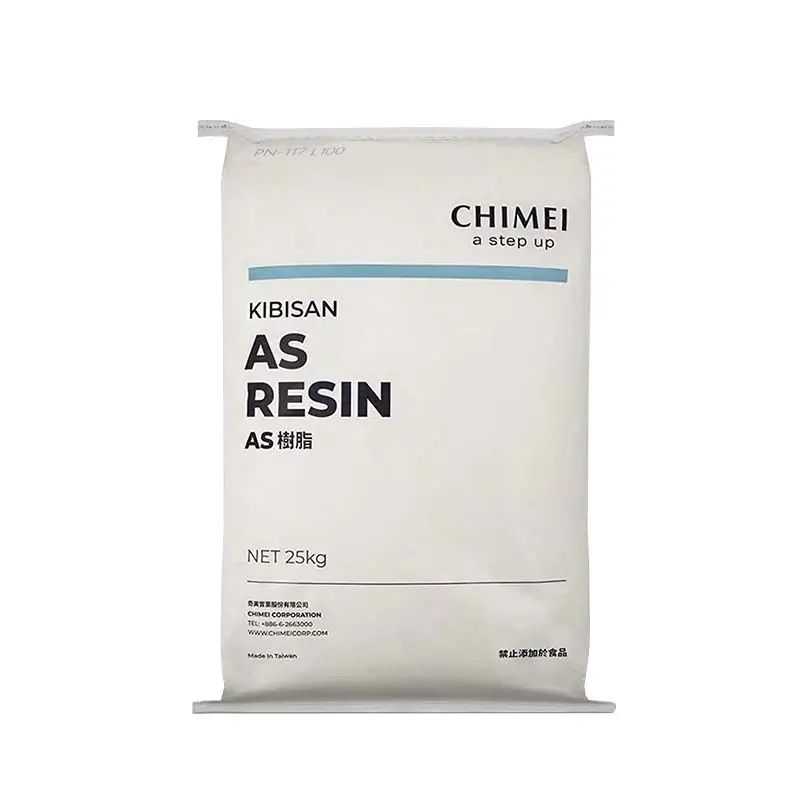

  • Packaging: 25kg bag
  • Character: Natural light amber color
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Melt Flow Index: 32 ml/10min
  • Tensile Strength: 68 MPa
  • Flexural Strength: 93 MPa
  • Vicat Softening Temp.: 104Ā°C (1KG load)
  • Flammability Rating: UL94 HB (1.5mm)
  • Mold Shrinkage: 0.2ā€“0.7%

Download

ISO TDSDownload
ASTM TDSDownload
MSDS SANDownload
UL Product iQDownload
Process GuideDownload

High Flow for Complex Molds

The SAN Resin PN-117 L100 offers a melt flow index of 32 ml/10min, ensuring smooth filling of intricate molds. This reduces cycle times and boosts production efficiency for detailed designs.

Rigidity Meets Impact Resistance

With tensile strength of 68 MPa and flexural strength of 93 MPa, this General SAN resin maintains structural integrity under stress, minimizing breakage in daily-use items.

Heat-Resistant & Dimensionally Stable

It survives high-temperature environments (Vicat 104Ā°C) and exhibits low mold shrinkage (0.2ā€“0.7%), ensuring consistent performance in heat-exposed applications.

Kibisan PN-117 L100 SAN Resin

Applications

  • Daily Commodities: Durable kitchenware, tableware, and storage bins.
  • Transparent Hardware: Clear housings for appliances, display cases, and organizers.
  • Cosmetic Containers: Sleek, crack-resistant jars, caps, and compacts.
Chimei Kibisan PN-117 L100 Application

KibisanĀ® PN-117 L100 Datasheet

General SAN KIBISANĀ®  PN-117_L100
Product Description: Injection molding
PropertiesISO Test MethodTest ConditionUnitPN-117_L100
Melt Flow Index1133 220ā„ƒĆ—10KGml/10 min32
Mass Density1183 23 ā„ƒg/cm31.06
Tensile Strength527 50 mm/min, yieldMPa68
50 mm/min, breakMPa68
Tensile Elongation527 50 mm/min%3
Flexural Strength178 2 mm/minMPa93
Flexural Modulus2 mm/minGPa3
Izod Impact Strength180/1A23ā„ƒ, NotchedKJ/m22
-30ā„ƒ, NotchedKJ/m2ā€“
Charpy Impact Strength179 23ā„ƒ, NotchedKJ/m22
-30ā„ƒ, NotchedKJ/m2ā€“
Vicat Softening Temp.306 50ā„ƒ/hr;1KGā„ƒ104
50ā„ƒ/hr;5KGā„ƒ102
Heat Distortion Temp.75/A1.8MPa, unannealedā„ƒ89
1.8MPa, annealedā„ƒ100
Coefficient of Linear Thermal Expansion11359 ––3.6~3.8*10-5
Flammability–UL-94–1.5mm HB
Mold Shrinkage294-4–%0.2~0.7
Symbol1043 ––>SAN<
March 11, 2024
Notesļ¼šThese are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

KibisanĀ® PN-117 L100 UL Product iQ

KIBISANĀ® PN-117 | UL Product iQ
File Number: E56070Yellow Cardā„¢ī ‰Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.5 mm, Color: ALLHB
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.5 mm, Color: ALLHB75
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)PLC 4UL 746A
(1.5 mm)
High Amp Arc Ignition (HAI)PLC 0UL 746A
(1.5 mm)
High Voltage Arc Tracking Rate (HVTR)PLC 0
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.5 mm50   Ā°C
3.0 mm50   Ā°C
Relative Thermal Index – Mechanical ImpactUL 746B
1.5 mm50   Ā°C
3.0 mm50   Ā°C
Relative Thermal Index – Mechanical StrengthUL 746B
1.5 mm50   Ā°C
3.0 mm50   Ā°C
