Chimei KibisanĀ® PN-117C

By /

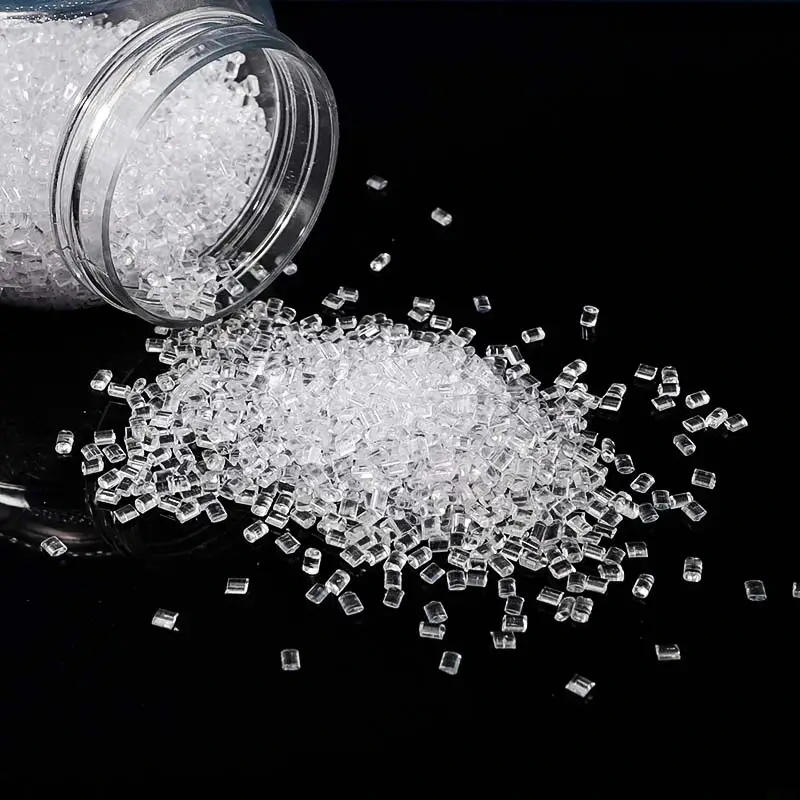

Chimei Kibisan PN-117C SAN Resin

KibisanĀ® PN-117C General Purpose Grade High Flowability

KIBISAN PN-117C is a high-flow SAN resin engineered for precision molding. Ideal for refrigerator fruit/vegetable boxes and daily commodities, it combines clarity, rigidity, and thermal stability to streamline production and enhance product durability.

  • Application: Fruit and vegetable boxes in refrigerators, daily commodities
  • Character: High flowability
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Flowability: Melt Flow Index = 58 ml/10 min (220Ā°C, 10 kg).
  • Mechanical: Tensile Strength = 67 MPa; Flexural Modulus = 2.7 GPa.
  • Thermal: Heat Distortion Temp (1.8 MPa) = 89ā€“100Ā°C.
  • Mold Shrinkage: 0.2ā€“0.7% (predictable dimensional stability).
  • Safety: UL 94 HB flammability rating; UL Product IQ certified (File E56070).

Download

ISO TDSDownload
ASTM TDSDownload
MSDSDownload
UL Product iQDownload
Process GuideDownload

Superior Flow for Complex Molds

With a melt flow index of 58 ml/10 min, KIBISAN PN-117C fills intricate molds effortlessly, reducing cycle times and minimizing defects in high-volume production.

Robust Mechanical Strength

Boasting 67 MPa tensile strength and 89 MPa flexural strength, this SAN resin withstands heavy loads and impacts, ensuring long-lasting performance in demanding environments.

Reliable Heat Resistance

With a Vicat softening point of 104Ā°C and heat distortion temperature up to 100Ā°C, it maintains structural integrity in high-temperature applications like refrigeration components.

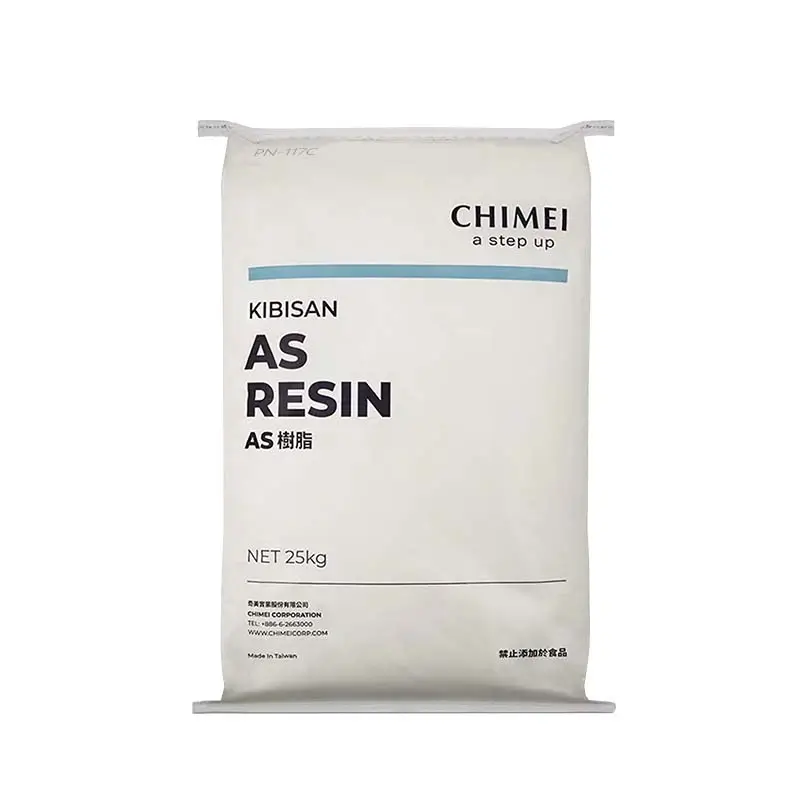

Kibisan PN-117C SAN Resin

Applications

  • Refrigerator Storage: Durable, food-safe fruit/vegetable boxes resistant to cold temperatures and moisture.
  • Household Goods: Transparent food containers, cosmetic cases, and kitchenware requiring scratch resistance and clarity.
  • Industrial Components: High-flow molding for thin-walled or complex parts in appliances and electronics.
Chimei Kibisan PN-117C Application

KibisanĀ® PN-117C Datasheet

General SAN KIBISANĀ®  PN-117C
Product Description: High flow
PropertiesISO Test MethodTest ConditionUnitPN-117C
Melt Flow Index1133 220ā„ƒĆ—10KGml/10 min58
Mass Density1183 23 ā„ƒg/cm31.06
Tensile Strength527 50 mm/min, yieldMPa67
50 mm/min, breakMPa67
Tensile Elongation527 50 mm/min%3
Flexural Strength178 2 mm/minMPa89
Flexural Modulus2 mm/minGPa2.7
Izod Impact Strength180/1A23ā„ƒ, NotchedKJ/m22
-30ā„ƒ, NotchedKJ/m2
Charpy Impact Strength179 23ā„ƒ, NotchedKJ/m22
-30ā„ƒ, NotchedKJ/m2ā€“
Vicat Softening Temp.306 50ā„ƒ/hr;1KGā„ƒ104
50ā„ƒ/hr;5KGā„ƒ102
Heat Distortion Temp.75/A1.8MPa, unannealedā„ƒ89
1.8MPa, annealedā„ƒ100
Coefficient of Linear Thermal Expansion11359 ––3.6~3.8*10-5
Flammability–UL-94–1.5mm HB
Mold Shrinkage294-4–%0.2~0.7
Symbol1043 ––>SAN<
March 11, 2024
Notesļ¼šThese are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

KibisanĀ® PN-117C UL Product iQ

KIBISANĀ® PN-117C | UL Product iQ
File Number: E56070Yellow Cardā„¢ī ‰Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.5 mm, Color: ALLHB
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.5 mm, Color: ALLHB75
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.5 mmPLC 4
3.0 mmPLC 4
High Amp Arc Ignition (HAI)UL 746A
1.5 mmPLC 3
3.0 mmPLC 2
Comparative Tracking Index (CTI)PLC 1UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 0
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.5 mm50   Ā°C
3.0 mm50   Ā°C
Relative Thermal Index – Mechanical ImpactUL 746B
1.5 mm50   Ā°C
3.0 mm50   Ā°C
Relative Thermal Index – Mechanical StrengthUL 746B
1.5 mm50   Ā°C
3.0 mm50   Ā°C
