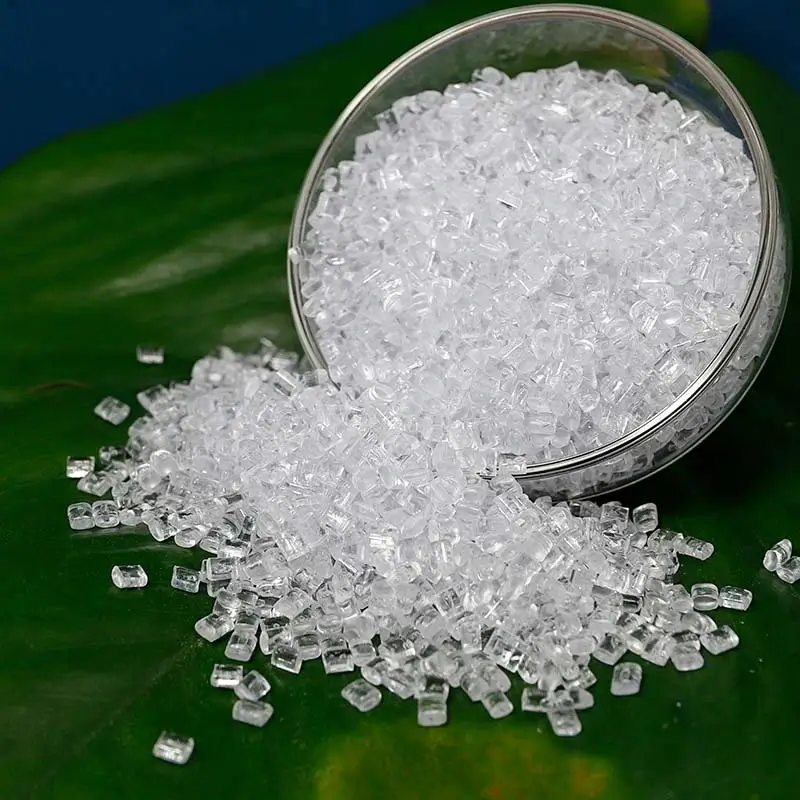

Chimei WONDERLITE® PC-110L

By /

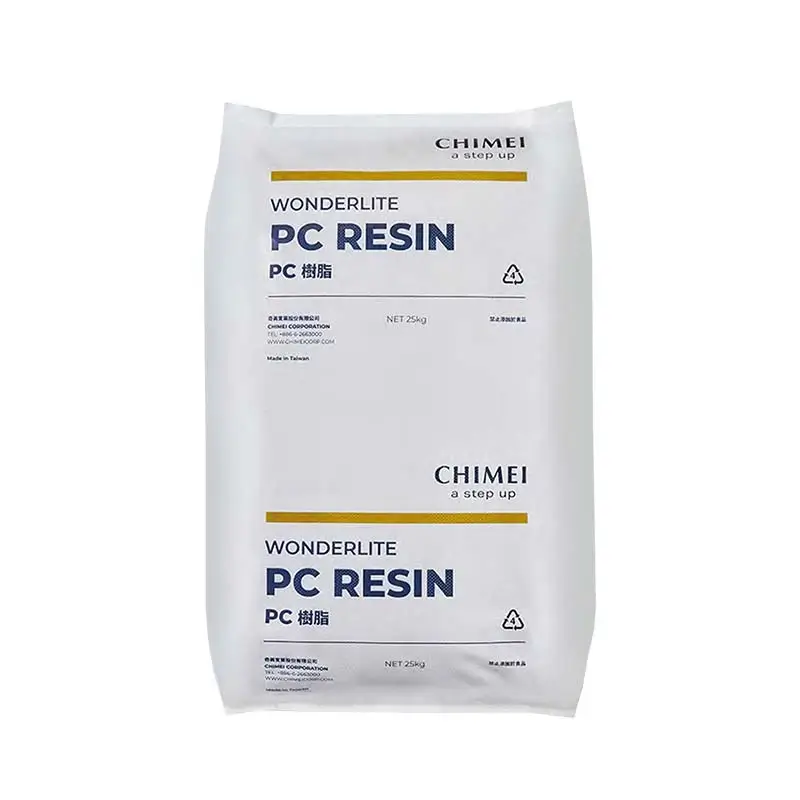

Chimei WONDERLITE PC-110L PC Resin

WONDERLITE PC-110L SAE Grade Automotive Head Lamp Use

Chi Mei PC Wonderlite® PC-110L is a UV-stabilized polycarbonate resin engineered for automotive lighting, including headlamps. Compliant with AMECA (SAEJ576) and ECE-R112 standards, it delivers exceptional impact resistance, thermal stability (Vicat 148°C), and flame retardancy (UL94 V-2).

  • Character: Comply with AMECA (SAEJ576) and ECE-R112
  • Application: Automotive head lamp
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Melt Flow Index: 14 ml/10 min (300°C)
  • Tensile Strength: 70 MPa
  • Flame Retardancy: UL94 V-2 (1.5mm)
  • Mold Shrinkage: 0.5–0.7%
  • Thermal Performance: Vicat 148°C, HDT 127°C

Download

ISO TDSDownload
ASTM TDSDownload
MSDSDownload
Process GuideDownload
UL Product iQDownload

UV Stabilization & Weather Resistance

Wonderlite PC-110L is UL 746C-certified for outdoor use, resisting UV degradation and water immersion. This prevents yellowing and maintains optical clarity in automotive headlamps exposed to sunlight, rain, or snow.

High Impact Resistance

With an Izod Impact Strength of 70 KJ/m² (23°C), PC-110L withstands road debris and accidental drops without cracking, reducing warranty claims and replacement costs for manufacturers.

Thermal Stability Under Heat

A Vicat Softening Temperature of 148°C and Heat Distortion Temperature of 127°C (1.8MPa) ensure headlamps retain shape and function even near engine heat or extreme climates.

WONDERLITE® PC-110L

Application

  • Automotive Headlamps: Combines UV resistance, impact strength, and thermal stability for lenses and housings that endure harsh environments.
  • Outdoor Lighting Components: Ideal for LED housings or traffic signals requiring long-term weather resistance.
  • Electrical Enclosures: UL-certified flame retardancy suits components near heat sources or electrical systems.
Chimei WONDERLITE PC-110L Application

WONDERLITE® PC-110L Datasheet

UV Stabilized PC WONDERLITE®  PC-110L
Product Description: Auto Head lamp
PropertiesISO Test MethodTest ConditionUnitPC-110L
Melt Flow Index1133 300℃  × 1.2KGml/10 min14
Mass Density1183 23  ℃g/cm31.2
Tensile Strength527 50 mm/min, yieldMPa64
50 mm/min, breakMPa70
Tensile Elongation527 50 mm/min%120
Flexural Strength178 2 mm/minMPa90
Flexural Modulus2 mm/minGPa2.4
Izod Impact Strength180/1A23℃, Notched,1/8″KJ/m270
-30℃, Notched,1/8″KJ/m2–
Charpy Impact Strength179 23℃, NotchedKJ/m270
-30℃, NotchedKJ/m2–
Vicat Softening Temp.306 50℃/hr;1KG℃148
50℃/hr;5KG℃143
Heat Distortion Temp.75/A1.8MPa, unannealed℃127
1.8MPa, annealed℃142
Coefficient of Linear Thermal Expansion11359 ––6.0~8.0×10-5
Flammability–UL-94–1.5mm V-2
Mold Shrinkage294-4–%0.5~0.7
Symbol1043 ––>PC<
February  10,  2025
Notes ：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

WONDERLITE® PC-110L UL Product iQ

WONDERLITE® PC-110L(f1) | UL Product iQ
File Number: E56070Yellow Card™Polycarbonate (PC) “WONDERLITE”, furnished as pellets
(f1) – Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.5 to 1.7 mm, Color: ALLV-2
3.0 mm, Color: ALLHB
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.5 to 1.7 mm, Color: ALLV-2
3.0 mm, Color: ALLHB40
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.5 to 1.7 mmPLC 3
3.0 mmPLC 2
High Amp Arc Ignition (HAI)UL 746A
1.5 to 1.7 mmPLC 1
3.0 mmPLC 3
Comparative Tracking Index (CTI)PLC 2UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 2
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.5 to 1.7 mm125   °C
3.0 mm125   °C
Relative Thermal Index – Mechanical ImpactUL 746B
1.5 to 1.7 mm105   °C
3.0 mm105   °C
Relative Thermal Index – Mechanical StrengthUL 746B
1.5 to 1.7 mm125   °C
3.0 mm125   °C
PHYSICAL PROPERTIESVALUETEST METHOD
UV Exposure & Water Immersionf1UL 746C
