WONDERLITE® PC-122U Weathering Grade UV Stabilized

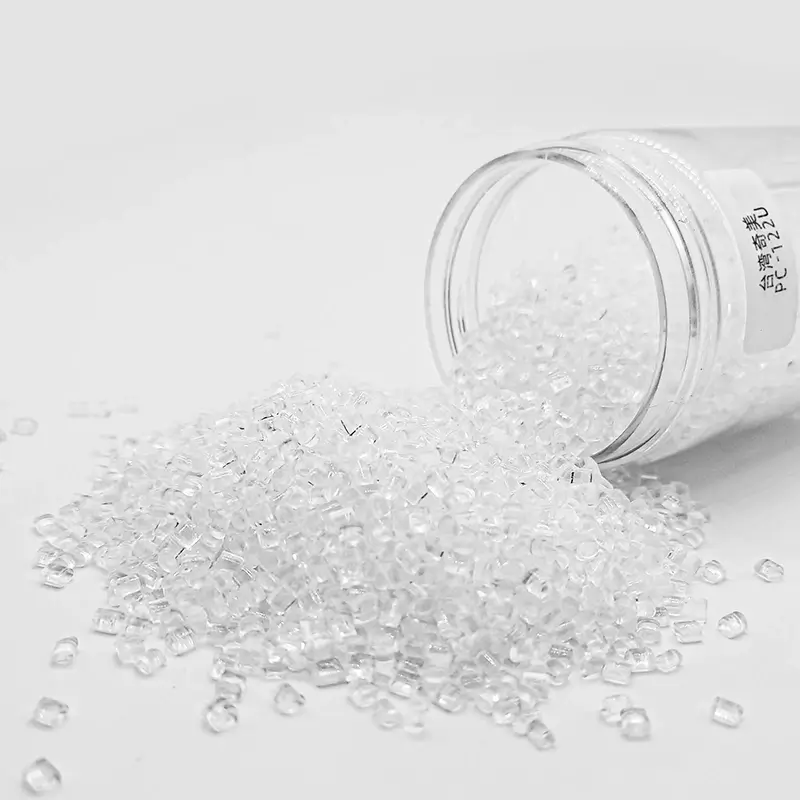

Wonderlite PC-122U is a high-flow polycarbonate resin made by CHIMEI. It’s great for making thin, see-through items like pen tubes, toys, and water bottles. The resin is tough, bends without breaking, and can handle heat well. It’s also UV-stable, making it good for outdoor use. Wonderlite PC-122U is easy to mold into complex shapes, perfect for creating clear, durable products.

  • Application: Outdoor applications, traffic signs
  • Character: UV Stabilized
Send inquiry
Drag & Drop Files, Choose Files to Upload You can upload up to 10 files.
* We prioritize your privacy and ensure information security.
=

Download

Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides. All documents are sourced directly from manufacturers.

contact us
Drag & Drop Files, Choose Files to Upload You can upload up to 10 files.
* We prioritize your privacy and ensure information security.
=
ISO TDSDownload
ASTM TDSDownload
MSDSDownload
ULDownload
RoHSDownload
REACH SVHCDownload
Process GuideDownload
Chimei WONDERLITE® PC-122U Application

Superior Flow for Complex Molding

Wonderlite PC-122U’s high flow properties (22 ml/10min) make it perfect for creating intricate designs and thin-walled products with excellent detail.

Exceptional Strength and Durability

With 63 MPa tensile strength and 120% elongation, this resin delivers outstanding toughness and flexibility for long-lasting, impact-resistant products.

Reliable Heat and UV Performance

Features impressive heat resistance up to 148°C and UV stability, making it ideal for both indoor and outdoor applications.

WONDERLITE® PC-122U

WONDERLITE® PC-122u Datasheet

UV Stabilized PC WONDERLITE® PC-122U
Product Description: UV Stabilized
PropertiesISO Test MethodTest ConditionUnitPC-122U
Melt Flow Index1133300℃ × 1.2KGml/10 min22
Mass Density118323  ℃g/cm31.2
Tensile Strength52750 mm/min, yieldMPa63
50 mm/min, breakMPa70
Tensile Elongation52750 mm/min%120
Flexural Strength1782 mm/minMPa90
Flexural Modulus1782 mm/minGPa2.4
Izod Impact Strength180/1A23℃, Notched,1/8″KJ/m260
-30℃, Notched,1/8″KJ/m2–
Charpy Impact Strength17923℃, NotchedKJ/m260
-30℃, NotchedKJ/m2–
Vicat Softening Temp.30650℃/hr;1KG℃148
50℃/hr;5KG℃143
Heat Distortion Temp.75/A1.8MPa, unannealed℃127
1.8MPa, annealed℃142
Coefficient of Linear Thermal Expansion11359––6.0~8.0×10-5
Flammability–UL-94–3.0mm V-2
Mold Shrinkage294-4–%0.5~0.7
Symbol1043––>PC<
March 11, 2024
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test.

WONDERLITE® PC-122u UL Product iQ

WONDERLITE® PC-122U(f2) UL Product iQ
File Number: E56070Yellow Card™Polycarbonate (PC) “WONDERLITE”, furnished as pellets
(f2) – Subjected to one or more of the following tests: Ultraviolet Light, Water Exposure or Immersion in accordance with UL 746C, where the acceptability for outdoor use is to be determined by UL.
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
0.75 mm, Color: ALLV-2
3.0 mm, Color: ALLV-2
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
0.75 mm, Color: ALLV-2
3.0 mm, Color: ALLV-2
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
0.75 mmPLC 4
3.0 mmPLC 2
High Amp Arc Ignition (HAI)UL 746A
0.75 mmPLC 1
3.0 mmPLC 0
Comparative Tracking Index (CTI)PLC 2UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 2
High Voltage, Low Current Arc ResistancePLC 6
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
0.75 mm120   °C
3.0 mm120   °C
Relative Thermal Index – Mechanical ImpactUL 746B
0.75 mm105   °C
3.0 mm105   °C
Relative Thermal Index – Mechanical StrengthUL 746B
0.75 mm120   °C
3.0 mm120   °C
PHYSICAL PROPERTIESVALUETEST METHOD
UV Exposure & Water Immersionf2UL 746C
Report Date: 2001-09-25
