Chimei WONDERLITE® PC-145K

By /

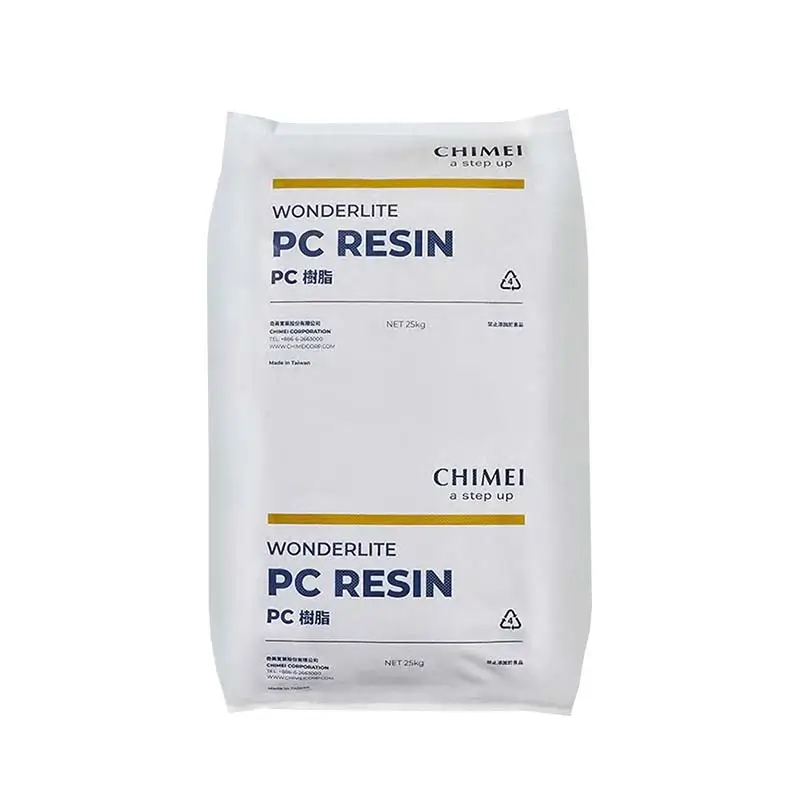

Chimei Wonderlite PC-145K PC Resin

WONDERLITE® PC-145K Flame Retardant Grade High Flow

Chi Mei’s WONDERLITE PC-145K is a high-flow, recyclable polycarbonate resin designed for precision manufacturing. Perfect for intricate parts like lighting keyboards and transparent housings, it balances rapid moldability with eco-friendly performance, reducing cycle times and waste for cost-effective, sustainable production.

  • Character: High flow, good recyclability
  • Application: Lighting keyboard, transparent products
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Melt Flow Index: 45 ml/10 min (ISO 1133, 300°C/1.2 kg)
  • Density: 1.20 g/cm³
  • Tensile Strength: 62 MPa (yield) / 64 MPa (break)
  • Izod Impact Resistance: 50 kJ/m² (23°C, notched)
  • Heat Resistance: 145°C Vicat (1 kg) / 120°C HDT (1.8 MPa)
  • Flammability: UL 94 V-2 (3.0 mm)
  • Mold Shrinkage: 0.5–0.7%
  • Electrical Rating: CTI PLC 3

Download

ISO TDSDownload
MSDS Safety Data SheetDownload
Process GuideDownload
UL Product iQDownload

High-Flow Efficiency

The Chi Mei PC-145K High Flow formula (45 ml/10 min melt flow rate) fills complex molds effortlessly, slashing cycle times by up to 20% for delicate components like micro-switches or thin-walled LED lenses.

Sustainable & Recyclable

It supports closed-loop recycling without compromising strength or clarity—ideal for brands prioritizing circular manufacturing to cut costs and environmental impact.

Heat-Resistant Durability

It withstands 145°C Vicat softening and 120°C heat distortion temperatures, ensuring stability in high-heat applications like automotive connectors or LED light housings.

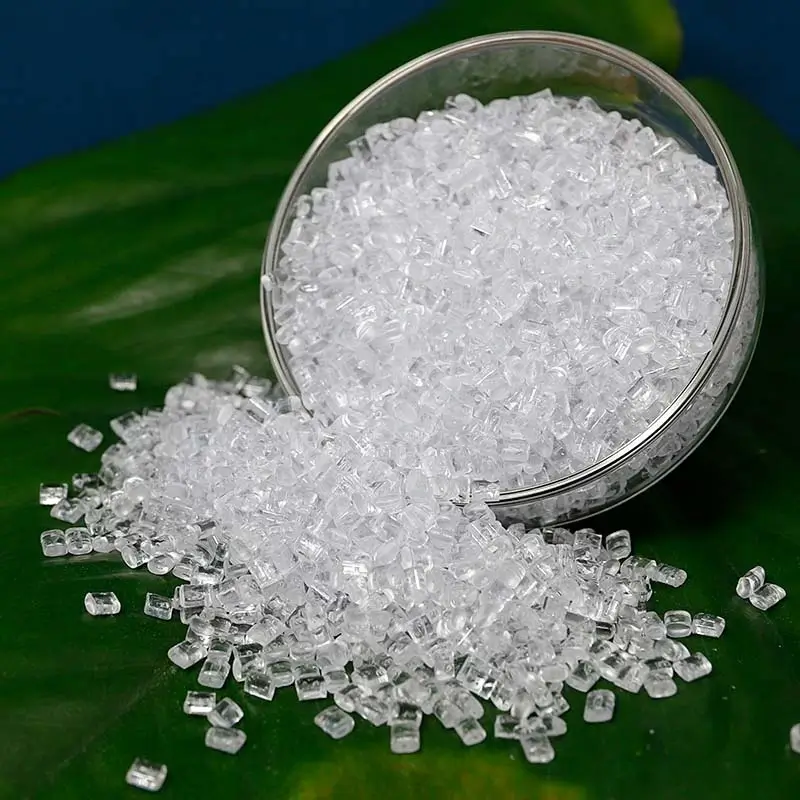

Wonderlite® PC-145K

Application

  • Lighting Keyboards: Ultra-thin, backlit keys for gaming gear and office peripherals with crystal clarity and scratch resistance.
  • Transparent Products: Shatter-resistant LED diffusers, medical device covers, and protective touchscreens.
  • Electrical Components: Connectors and housings requiring heat resistance and UL-certified flame retardancy.
Chimei Wonderlite PC-145K Application

WONDERLITE® PC-145K Datasheet

General PC WONDERLITE® PC-145K
Product Description: High flow Recyclability
PropertiesISO Test MethodTest ConditionUnitPC-145K
Melt Flow Index1133 300℃  ×  1.2KGml/10 min45
Mass Density1183 23 ℃g/cm31.2
Tensile Strength527 50 mm/min, yieldMPa62
50 mm/min, breakMPa64
Tensile Elongation527 50 mm/min%142
Flexural Strength178 2 mm/minMPa92
Flexural Modulus2 mm/minGPa2.2
Izod Impact Strength180/1A23℃, Notched,1/8″KJ/m250
-30℃, Notched,1/8″KJ/m2–
Charpy Impact Strength179 23℃, NotchedKJ/m2–
-30℃, NotchedKJ/m2–
Vicat Softening Temp.306 50℃/hr;1KG℃145
50℃/hr;5KG℃140
Heat Distortion Temp.75/A1.8MPa, unannealed℃120
1.8MPa, annealed℃–
Coefficient of Linear Thermal Expansion11359 ––6.0~8.0×10-5
Flammability–UL-94–3.0mm V-2
Mold Shrinkage294-4–%0.5~0.7
Symbol1043 ––>PC<
March 11, 2024
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

WONDERLITE® PC-145K UL Product iQ

WONDERLITE® PC-145K(Y) | UL Product iQ
File Number: E56070Yellow Card™Polycarbonate (PC) “WONDERLITE”, furnished as pellets
(Y) – Optional suffix; may be suffixed with one or two alphabet but except H, unconcerned with formula or constituent changed.
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
0.5 mm, Color: ALLV-2
3.0 mm, Color: ALLV-2
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
0.5 mm, Color: ALLV-2
3.0 mm, Color: ALLV-2
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
0.5 mmPLC 4
3.0 mmPLC 3
High Amp Arc Ignition (HAI)UL 746A
0.5 mmPLC 2
3.0 mmPLC 2
Comparative Tracking Index (CTI)PLC 3UL 746A
High Voltage Arc Tracking Rate (HVTR)PLC 3
High Voltage, Low Current Arc ResistancePLC 5
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
0.5 mm80   °C
3.0 mm80   °C
Relative Thermal Index – Mechanical ImpactUL 746B
0.5 mm80   °C
3.0 mm80   °C
Relative Thermal Index – Mechanical StrengthUL 746B
0.5 mm80   °C
3.0 mm80   °C
