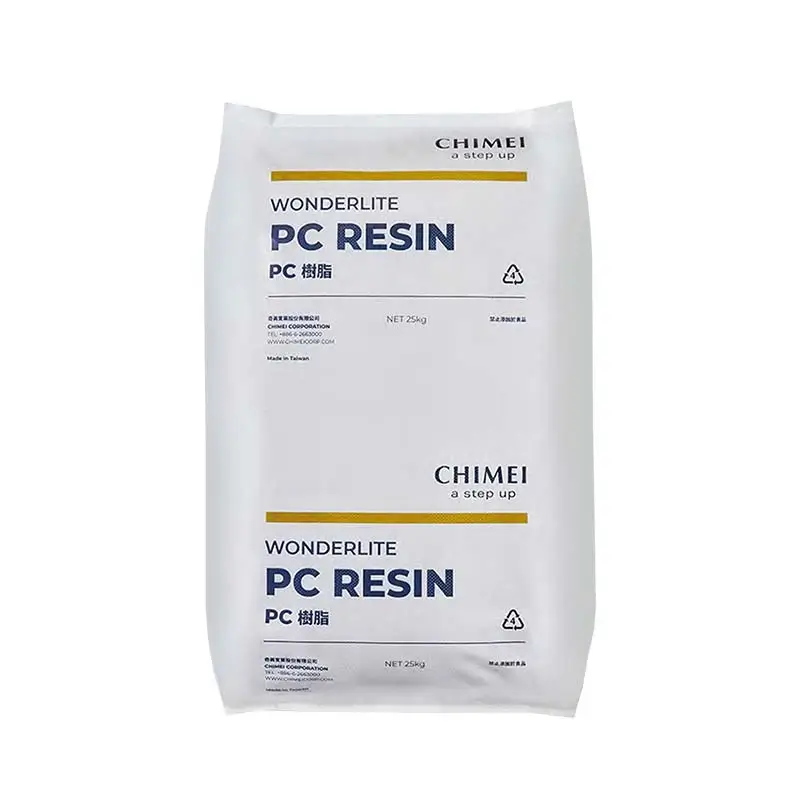

Chimei Wonderlite PC-175 PC Resin

WONDERLITE PC-175 High Flow Grade General Injection Mold

WONDERLITE® PC-175 is a high-flow polycarbonate resin engineered for precision and efficiency in thin-walled, complex injection-molded parts. Its superior flowability reduces cycle times while maintaining exceptional mechanical strength and heat resistance, making it ideal for demanding industrial applications.

  • Character: High Flowability
  • Application: Compounding or general injection molding for thin part
contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Key technical data (ISO)

  • Melt Flow Index: 65 ml/10 min (300°C, 1.2 kg)
  • Tensile Strength: 60 MPa (yield), 50 MPa (break)
  • Heat Distortion Temp (HDT): 124°C (1.8 MPa, unannealed)
  • Vicat Softening Temp: 145°C (50°C/hr, 1 kg)
  • Izod Notched (23°C): 8 KJ/m²
  • Charpy Notched (23°C): 10 KJ/m²
  • Mold Shrinkage: 0.5–0.7% (predictable dimensional stability)
  • Flammability Rating: UL 94 V-2 (0.71–0.78 mm thickness)

Download

ISO TDSDownload
ASTM TDSDownload
MSDSDownload
Process GuideDownload
UL Product iQDownload

Ultra-High Flowability

With a melt flow index of 65 ml/10 min (ISO 1133), WONDERLITE® PC-175 fills intricate molds effortlessly, minimizing defects in thin-walled components like automotive connectors or microelectronic housings.

Robust Mechanical Performance

Boasting 60 MPa tensile strength and 65% elongation (ISO 527), this PC resin withstands high-stress environments without cracking—perfect for durable industrial tools or medical device housings.

Reliable Heat Resistance

A Vicat softening temperature of 145°C (ISO 306) ensures stability in high-heat scenarios, such as automotive under-hood components or LED lighting fixtures.

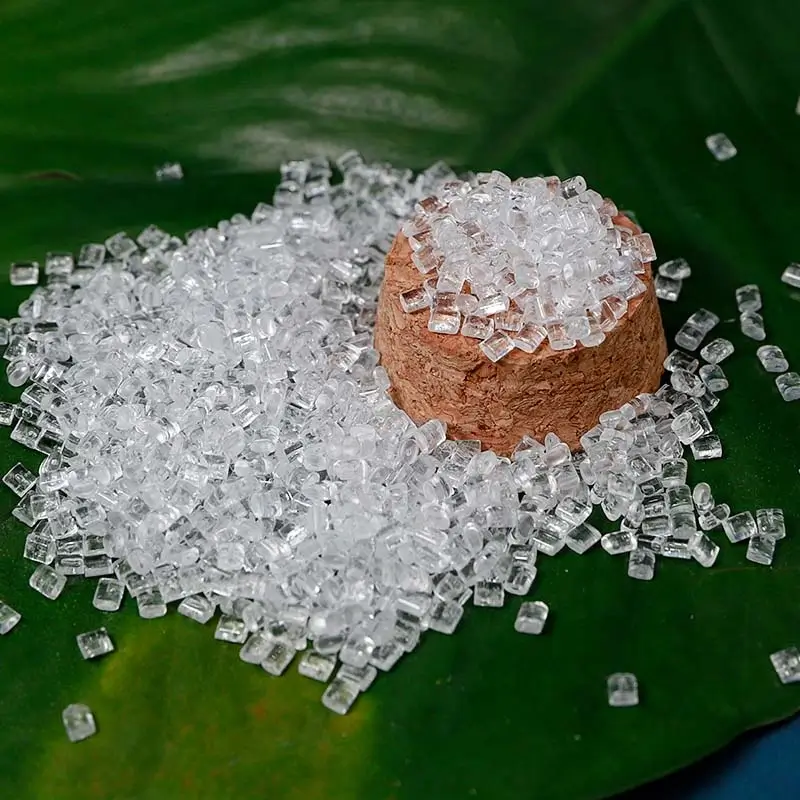

Wonderlite® PC-175

Application

  • Thin-Walled Automotive Parts: Connectors, sensor housings, and lightweight interior components.
  • Precision Electronics: Micro-switches, USB-C port covers, and smartphone battery casings.
  • Medical Device Molding: Transparent surgical tool housings and sterilizable equipment.
  • Industrial Components: Durable gears, snap-fit fasteners, and heat-resistant enclosures.
Chimei Wonderlite PC-175 Application

WONDERLITE® PC-175 Datasheet

High Flow PC WONDERLITE®  PC-175
Product Description: High Flow Polycarbonate
PropertiesISO Test MethodTest ConditionUnitPC-175
Melt Flow Index1133 300℃  ×  1.2KGml/10 min65
Mass Density1183 23 ℃g/cm31.2
Tensile Strength527 50 mm/min, yieldMPa60
50 mm/min, breakMPa50
Tensile Elongation527 50 mm/min%65
Flexural Strength178 2 mm/minMPa90
Flexural Modulus2 mm/minGPa2.4
Izod Impact Strength180/1A23℃, Notched,1/8″KJ/m28
-30℃, Notched,1/8″KJ/m2–
Charpy Impact Strength179 23℃, NotchedKJ/m210
-30℃, NotchedKJ/m2–
Vicat Softening Temp.306 50℃/hr;1KG℃145
50℃/hr;5KG℃140
Heat Distortion Temp.75/A1.8MPa, unannealed℃124
1.8MPa, annealed℃140
Coefficient of Linear Thermal Expansion11359 ––6.0~8.0×10-5
Flammability–UL-94––
Mold Shrinkage294-4–%0.5~0.7
Symbol1043 ––>PC<
March 11, 2024
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

WONDERLITE® PC-175 UL Product iQ

WONDERLITE® PC-175 | UL Product iQ
File Number: E56070Yellow Card™Polycarbonate (PC) “WONDERLITE”, furnished as pellets
(Y) – Optional suffix; may be suffixed with one or two alphabet but except H, unconcerned with formula or constituent changed.
FLAMMABILITY PROPERTIESVALUETEST METHOD
Flammability (0.71 to 0.78 mm, Color: NC)V-2ANSI/UL 94
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
Flammability (0.71 to 0.78 mm, Color: NC)V-2IEC 60695-11-10
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical Strength (0.71 to 0.78 mm)80   °CUL 746B
Relative Thermal Index – Mechanical Impact (0.71 to 0.78 mm)80   °CUL 746B
Relative Thermal Index – Mechanical Strength (0.71 to 0.78 mm)80   °CUL 746B
