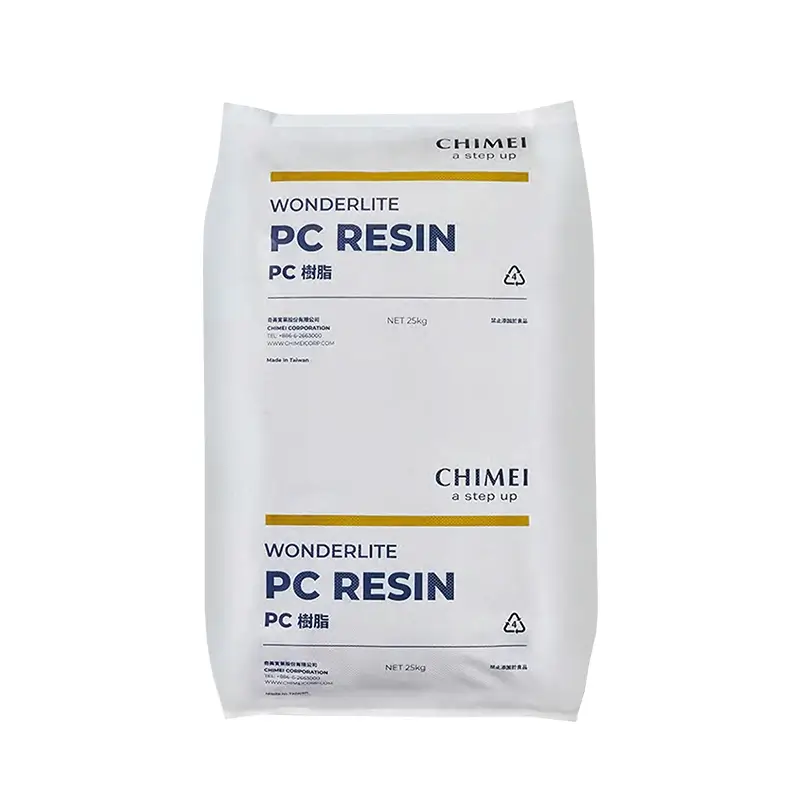

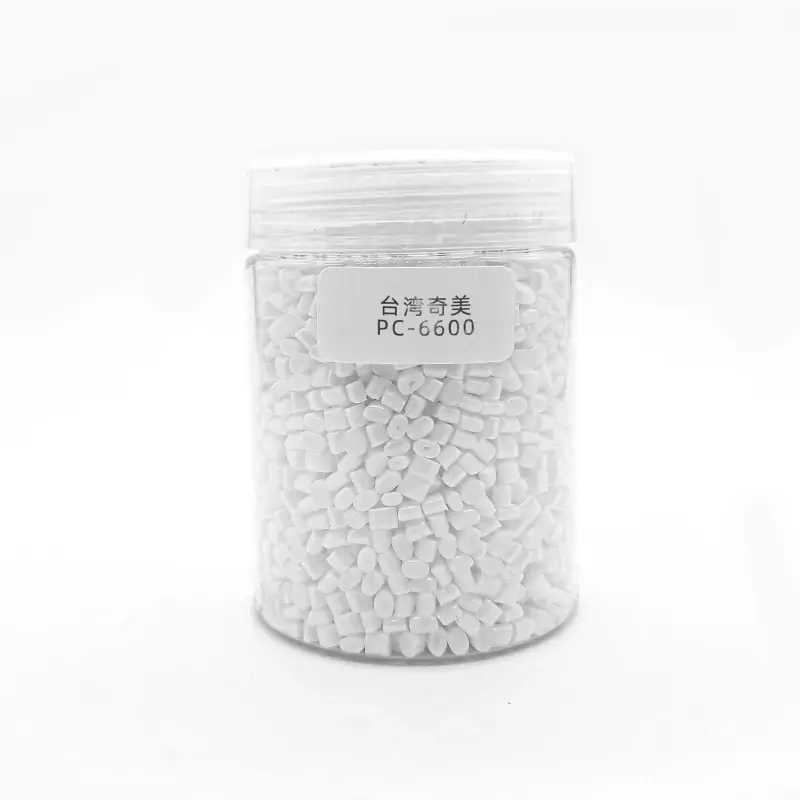

Chimei WONDERLITE® PC-6600

By /
Chimei-WONDERLITE-PC-6600

WONDERLITE® PC-6600 Plastic Resin Flame Retardant Material

Wonderlite PC-6600 is a top-notch flame retardant plastic resin made by CHIMEI. It’s perfect for electrical appliances, offering great fire safety without harmful chemicals. This tough material comes in easy-to-use granules and resists flames even at just 1.0mm thick. It’s strong, heat-resistant, and electrical-friendly, making it ideal for everything from kitchen gadgets to power tools.

  • Application: Electrical appliances
  • Character: Flame Retardant grade
Send inquiry
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.

Download

Access essential product documentation including technical data sheets, safety information, environmental certifications, and processing guides. All documents are sourced directly from manufacturers and updated regularly for accuracy.

contact us
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 10 files.
* We prioritize your privacy and ensure information security.
ISO TDSDownload
ASTM TDSDownload
MSDSDownload
ULDownload
RoHSDownload
REACH SVHCDownload
Process GuideDownload
Chimei WONDERLITE® PC-6600 Application

Flame Retardant Without Harmful Chemicals

Wonderlite PC-6600 offers top-notch fire safety without using bromine or chlorine. It achieves a V-0 rating at just 1.0mm thickness, ensuring superior protection.

Strong and Heat-Resistant Material

With high tensile and flexural strength, PC-6600 withstands daily wear and tear. It maintains shape well, with a Vicat softening temperature of 150°C under light load.

Versatile for Electrical Applications

1PC-6600’s dielectric strength of 31 kV/mm prevents electrical breakdowns. Its natural color and opaque finish suit various electrical products and design needs.

Chimei WONDERLITE PC-6600

WONDERLITE® PC-6600 Datasheet

Flame Retardant WONDERLITE® PC-6600
Product Description: 1.0mm V-0,Opaque
PropertiesISO Test MethodTest ConditionUnitPC-6600
Melt Flow Index1133300℃  × 1.2KGml/10 min10
Spiral flowCHIMEI260℃,2mm,cm–
V:50%,P:50%
Mass Density118323  ℃g/cm31.2
Tensile Strength52750 mm/min, yieldMPa60
50 mm/min, breakMPa70
Tensile Elongation52750 mm/min%115
Flexural Strength1782 mm/minMPa90
Flexural Modulus1782 mm/minGPa2.3
Izod Impact Strength180/1A23℃, NotchedKJ/m260
-30℃, NotchedKJ/m215
Charpy Impact Strength17923℃, NotchedKJ/m260
-30℃, NotchedKJ/m215
Vicat Softening Temp.30650℃/hr;1KG℃150
50℃/hr;5KG℃145
Heat Distortion Temp.75/A1.8MPa, unannealed℃125
1.8MPa, annealed℃140
Dielectric ConstantIEC 602501MHz—3
Volume ResistivityIEC 60093—Ohm X m3.6E+14
Surface ResistivityIEC 60093—Ohm9.3E+14
Coefficient of Linear Thermal Expansion11359––6.7*10-5
Flammability–UL-94–1.0mm V-0
2.0mm 5VB
3.0mm 5VA
Mold Shrinkage294-4–%0.4~0.6
Symbol1043––>PC<
January 12, 2024
Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test.

WONDERLITE® PC-6600 UL Product iQ

WONDERLITE® PC-6600(Y)(a) UL Product iQ
File Number: E56070Yellow Card™Polycarbonate (PC) “WONDERLITE”, furnished as pellets
(Y) – Optional suffix; may be suffixed with one or two alphabet but except H, unconcerned with formula or constituent changed.
(a) – Ball pressure temperature is in accordance with IEC 60695-10-2 Method B.
FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityANSI/UL 94
1.0 mm, Color: ALLV-0
1.5 mm, Color: ALLV-0
2.0 mm, Color: ALL5VB
V-0
2.5 mm, Color: ALL5VA
V-0
3.0 mm, Color: ALL5VA
V-0
ISO/IEC FLAMMABILITY PROPERTIESVALUETEST METHOD
FlammabilityIEC 60695-11-10
1.0 mm, Color: ALLV-0
1.5 mm, Color: ALLV-0
2.0 mm, Color: ALLV-0
2.5 mm, Color: ALLV-0
3.0 mm, Color: ALLV-0
FlammabilityIEC 60695-11-20
2.0 mm, Color: ALL5VB
2.5 mm, Color: ALL5VA
3.0 mm, Color: ALL5VA
Glow Wire Ignition Temperature (GWIT)IEC 60695-2-13
1.0 mm850   °C
1.5 mm875   °C
3.0 mm875   °C
Glow Wire Flammability Index (GWFI)IEC 60695-2-12
1.0 mm930   °C
1.5 mm960   °C
3.0 mm960   °C
ELECTRICAL PROPERTIESVALUETEST METHOD
Hot-wire Ignition (HWI)UL 746A
1.0 mmPLC 3
1.5 mmPLC 3
2.0 mmPLC 2
2.5 mmPLC 2
3.0 mmPLC 0
High Amp Arc Ignition (HAI)UL 746A
1.0 mmPLC 1
1.5 mmPLC 1
2.0 mmPLC 0
2.5 mmPLC 0
3.0 mmPLC 0
Comparative Tracking Index (CTI)PLC 2UL 746A
Dielectric Strength31   kV/mmASTM D149
Volume Resistivity1.0E+14   ohms·cmASTM D257/IEC 60093
THERMAL PROPERTIESVALUETEST METHOD
Relative Thermal Index – Electrical StrengthUL 746B
1.0 mm130   °C
1.5 mm130   °C
2.0 mm130   °C
2.5 mm130   °C
3.0 mm130   °C
Relative Thermal Index – Mechanical ImpactUL 746B
1.0 mm120   °C
1.5 mm120   °C
2.0 mm120   °C
2.5 mm120   °C
3.0 mm120   °C
Relative Thermal Index – Mechanical StrengthUL 746B
1.0 mm130   °C
1.5 mm130   °C
2.0 mm130   °C
2.5 mm130   °C
3.0 mm130   °C
Ball Pressure Temperature135   °C
PHYSICAL PROPERTIESVALUETEST METHOD
Dimensional Change0.0   %ASTM D1042/ISO 2796
Report Date: 2010-08
