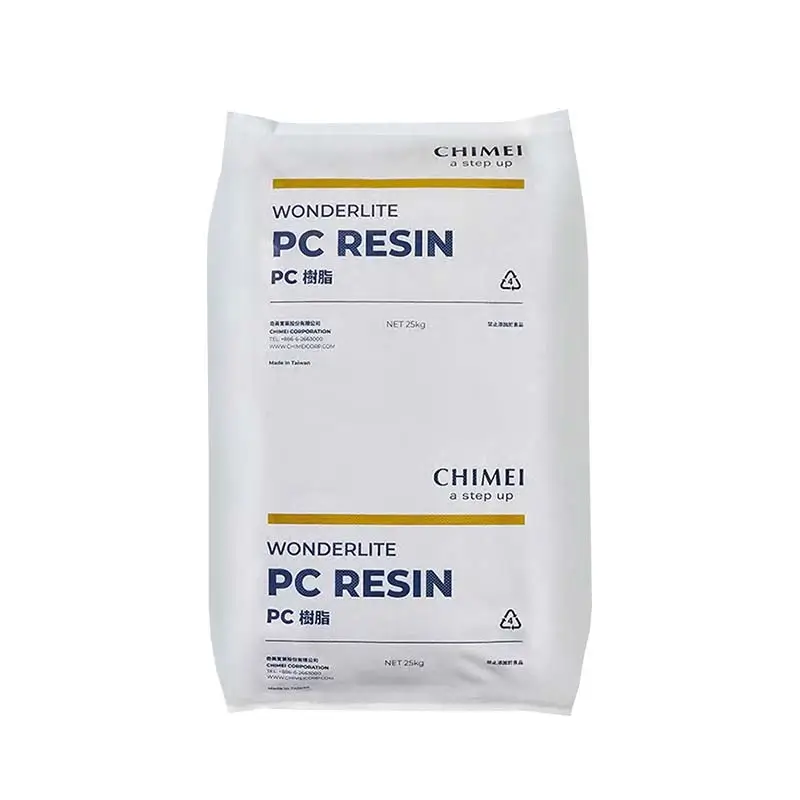

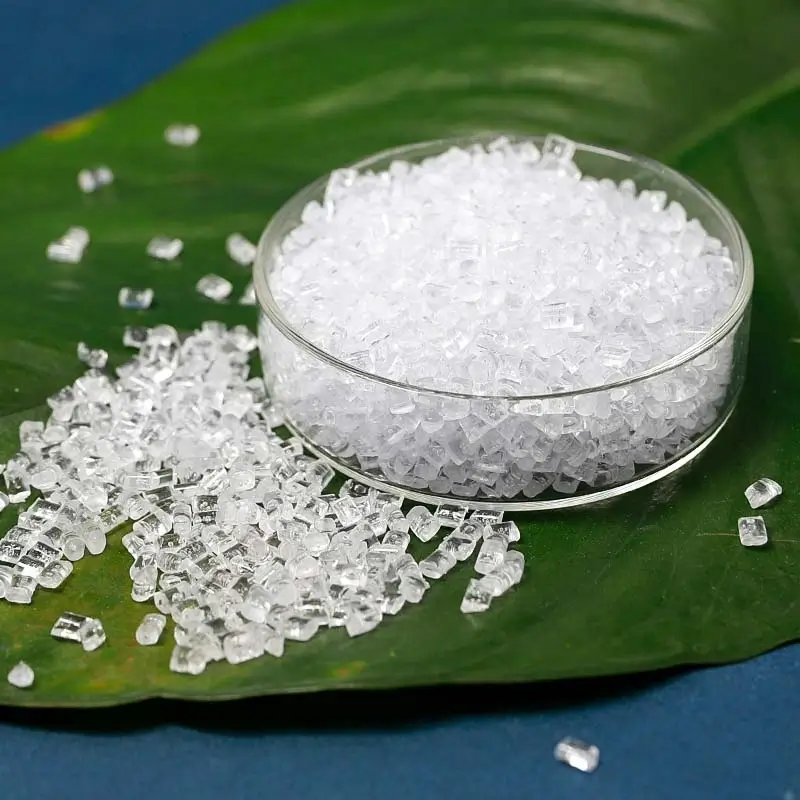

Chimei WONDERLITE® PC-6710NF

Chimei WONDERLITE PC-6710NF Flame Retardant Grade Transparent

WONDERLITE® PC-6710NF is a high-performance, PFAS-free flame-retardant polycarbonate resin offering UL 94 V-0 compliance at 3.0 mm thickness. With exceptional transparency, UV stability, and robust mechanical strength, it’s engineered for industries prioritizing safety, durability, and regulatory compliance.

Character: Transparent, Flame retardant (PFAS Free), 3.0 mm V0
Application: Electrical appliances, outdoor applications (UL 746C f1)

PC Resin

Chimei WONDERLITE® PC Resin

Key technical data (ISO)

Flame Retardancy: UL 94 V-0 (3.0 mm), IEC 60695-11-10 V-0, PFAS-free.
Mechanical Strength: Tensile Strength 65 MPa, Flexural Modulus 2.3 GPa.
Thermal Performance: HDT 125°C (unannealed), Vicat Softening 148°C.
Electrical Safety: Dielectric Strength 24 kV/mm, CTI PLC 4.
Impact Resistance: 65 KJ/m² (Charpy, 23°C).
Certifications: UL Recognized (E56070), RoHS compliant.

Download

ISO TDS Download

MSDS Download

Process Guide Download

UL Product iQ Download

Superior Flame Resistance, PFAS-Free

WONDERLITE® PC-6710NF meets UL 94 V-0 standards (3.0 mm) without harmful PFAS chemicals. Ideal for electrical enclosures or automotive interiors where safety and eco-compliance matter.

High Impact & Thermal Stability

It boasts 65 KJ/m² Charpy impact resistance (23°C) and a Vicat softening temperature of 148°C. Perfect for outdoor equipment or medical devices exposed to harsh conditions.

UL-Certified Outdoor Durability

UV-stabilized and UL 746C f1-rated for outdoor use. Protects components like LED housings or solar connectors from weathering and electrical stress.

Application

Electrical Appliances: Circuit breakers, switchgear, and connectors requiring flame resistance.
Outdoor Infrastructure: Solar panel junction boxes, LED streetlight housings (UL 746C f1 compliant).
Medical Devices: Sterilizable equipment housings needing clarity and durability.
Transportation: Automotive charging ports or battery covers demanding thermal stability.

WONDERLITE® PC-6710NF Datasheet

Flame Retardant PC WONDERLITE® PC-6710NF (Provisional) Product Description: 3.0mm V-0,PFAS free, UV Stabilized,Transparent
Properties	ISO Test Method	Test Condition	Unit	PC-6710NF
Melt Flow Index	1133	300℃ × 1.2KG	ml/10 min	10
Spiral flow	CHIMEI	260℃,2mm, V:50%,P:50%	cm	–
Mass Density	1183	23 ℃	g/cm3	1.2
Tensile Strength	527	50 mm/min, yield	MPa	65
Tensile Strength	527	50 mm/min, break	MPa	70
Tensile Elongation	527	50 mm/min	%	110
Flexural Strength	178	2 mm/min	MPa	95
Flexural Modulus	178	2 mm/min	GPa	2.3
Izod Impact Strength	180/1A	23℃, Notched	KJ/m2	60
Izod Impact Strength	180/1A	-30℃, Notched	KJ/m2	–
Charpy Impact Strength	179	23℃, Notched	KJ/m2	65
Charpy Impact Strength	179	-30℃, Notched	KJ/m2	–
Vicat Softening Temp.	306	50℃/hr;1KG	℃	148
Vicat Softening Temp.	306	50℃/hr;5KG	℃	142
Heat Distortion Temp.	75/A	1.8MPa, unannealed	℃	125
Heat Distortion Temp.	75/A	1.8MPa, annealed	℃	140
Dielectric Constant	IEC 60250	1MHz	—	3
Volume Resistivity	IEC 60093	—	Ohm X m	1E+16
Surface Resistivity	IEC 60093	—	Ohm	1E+16
Coefficient of Linear Thermal Expansion	11359	–	–	6.8*10-5
Flammability	–	UL-94	–	3.0mm V-0
Mold Shrinkage	294-4	–	%	0.4~0.6
Symbol	1043	–	–	>PC<
August 2, 2024 Notes: These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test.

WONDERLITE® PC-6710NF UL Product iQ

WONDERLITE® PC-6710NF \| UL Product iQ
File Number: E56070	Yellow Card™	Polycarbonate (PC) “WONDERLITE”, furnished as pellets
FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability	V-0	ANSI/UL 94
(3.0 to 3.3 mm, Color: NC)
ISO/IEC FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability	V-0	IEC 60695-11-10
(3.0 to 3.3 mm, Color: NC)
Glow Wire Ignition Temperature (GWIT)	825 °C	IEC 60695-2-13
(3.0 to 3.3 mm)
Glow Wire Flammability Index (GWFI)	960 °C	IEC 60695-2-12
(3.0 to 3.3 mm)
ELECTRICAL PROPERTIES	VALUE	TEST METHOD
Hot-wire Ignition (HWI)	PLC 3	UL 746A
(3.0 to 3.3 mm)
High Amp Arc Ignition (HAI)	PLC 2	UL 746A
(3.0 to 3.3 mm)
Comparative Tracking Index (CTI)	PLC 4	UL 746A
Dielectric Strength	24 kV/mm	ASTM D149
High Voltage Arc Tracking Rate (HVTR)	PLC 3
Volume Resistivity	1.0E+15 ohms·cm	ASTM D257/IEC 60093
High Voltage, Low Current Arc Resistance	PLC 7
THERMAL PROPERTIES	VALUE	TEST METHOD
Relative Thermal Index – Electrical Strength	80 °C	UL 746B
(3.0 to 3.3 mm)
Relative Thermal Index – Mechanical Impact	80 °C	UL 746B
(3.0 to 3.3 mm)
Relative Thermal Index – Mechanical Strength	80 °C	UL 746B
(3.0 to 3.3 mm)
Ball Pressure Temperature	135 °C
PHYSICAL PROPERTIES	VALUE	TEST METHOD
Dimensional Change	0.0 %	ASTM D1042/ISO 2796

Chimei WONDERLITE® PC-6710NF
