Chimei Polylac® PA-763H Flame Retardant Grade

Polylac® PA-763H Flame Retardant Grade Light Resistance

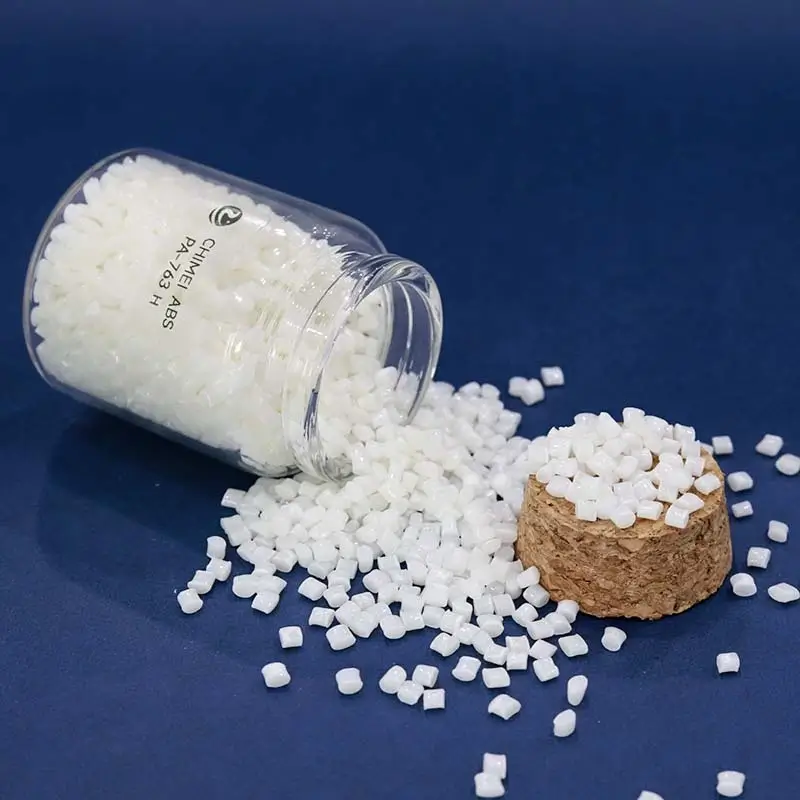

POLYLAC® PA-763H is a flame-retardant ABS resin engineered for high-flow molding, heat resistance (up to 102°C Vicat), and superior light stability. Certified for 1.5mm V-0, 5VB, and 2.5mm 5VA flammability (non-TBBA), it’s ideal for demanding applications in electronics, automotive, and appliances.

Character: F.R. Weather resistant, High-flowability, Light-resistance, heat-resistance,1.5mm V-0,1.5mm 5VB,2.5mm 5VA (Non-TBBA series)

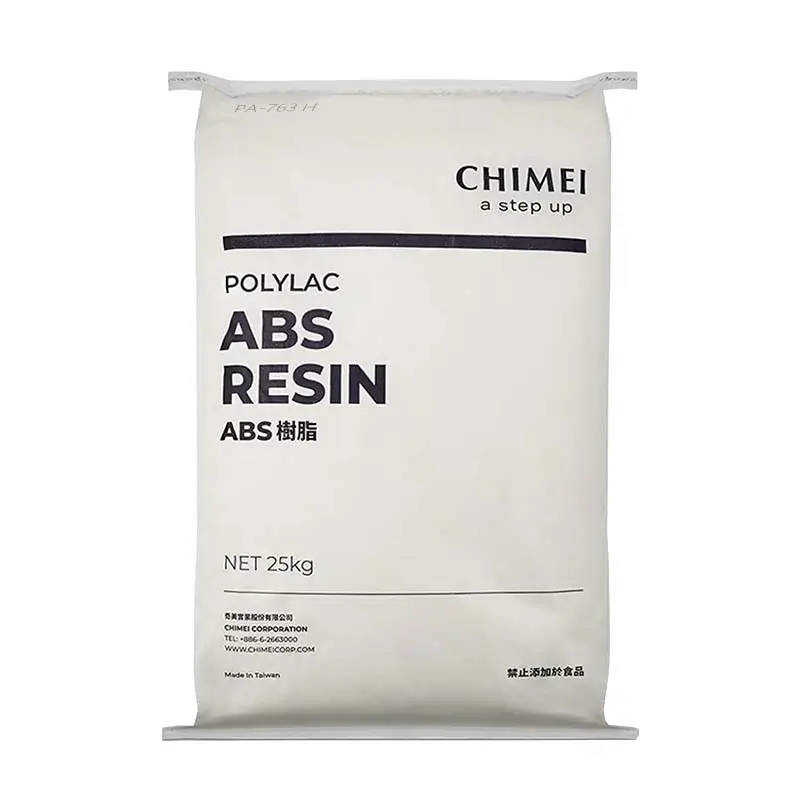

ABS Resin

Chimei POLYLAC® ABS Resin

Key technical data (ISO)

Flowability: Melt Flow Index = 47 ml/10 min (220°C/10kg)
Density: 1.19 g/cm³
Mechanical Strength: Tensile Strength = 40 MPa | Flexural Strength = 60 MPa
Impact Resistance: Izod Impact = 17 KJ/m² (23°C)
Heat Resistance: Vicat Softening Temp = 102°C | HDT = 92°C (annealed)
Flame Retardancy: UL 94 1.5mm V-0, 5VB; 2.5mm 5VA
Mold Shrinkage: 0.3–0.6%

Download

ISO TDS Download

MSDS Download

Process Guide Download

UL Product iQ Download

High-Flow Efficiency

With a melt flow index of 47 ml/10 min, PA-763H fills intricate molds rapidly, reducing cycle times and energy costs. Perfect for thin-walled components like printer casings or power outlets.

Reliable Flame Retardancy

It achieves UL 94 V-0/5VB/5VA ratings at minimal thicknesses, ensuring compliance with strict safety standards. Ideal for electrical panels, car audio consoles, and appliances where fire safety is critical.

Heat & Weather Resistance

It withstands temperatures up to 92°C (HDT) and resists UV degradation, making it durable for outdoor light boxes, TV frames, and automotive battery housings.

Applications

Electronics: Displays, modems, power panels, DVD players, remote controls.
Automotive: Car batteries, audio consoles, rearview mirror housings.
Office Equipment: Printer casings, fax machines, projectors, cash registers.
Appliances: Coffee machines, power outlets, front/rear TV frames.
Industrial: Machine boxes, large-scale multifunctional peripherals.

Polylac® PA-763H Datasheet

Flame Retardant ABS POLYLAC® PA-763H Product Description: F.R. High flow,High heat,Weather resistant
Properties	ISO Test Method	Test Condition	Unit	PA-763H
Melt Flow Index	1133	220℃×10KG	ml/10 min	47
Mass Density	1183	23 ℃	g/cm3	1.19
Tensile Strength	527	50 mm/min, yield	MPa	40
Tensile Strength	527	50 mm/min, break	MPa	29
Tensile Elongation	527	50 mm/min	%	13
Flexural Strength	178	2 mm/min	MPa	60
Flexural Modulus	178	2 mm/min	GPa	2.1
Izod Impact Strength	180/1A	23℃, Notched	KJ/m2	17
Izod Impact Strength	180/1A	-30℃, Notched	KJ/m2	8
Charpy Impact Strength	179	23℃, Notched	KJ/m2	17
Charpy Impact Strength	179	-30℃, Notched	KJ/m2	8
Vicat Softening Temp.	306	50℃/hr;1KG	℃	102
Vicat Softening Temp.	306	50℃/hr;5KG	℃	89
Heat Distortion Temp.	75/A	1.8MPa, unannealed	℃	75
Heat Distortion Temp.	75/A	1.8MPa, annealed	℃	92
Coefficient of Linear Thermal Expansion	11359	–	–	8.45 x 10-5
Flammability	–	UL-94	–	1.5mm V-0 1.5mm 5VB 2.5mm 5VA
Mold Shrinkage	294-4	–	%	0.3~0.6
Symbol	1043	–	–	>ABS-FR(17)<
March 12, 2025 Notes：These are typical properties only and are not to be construed as specifications. Users should confirm results by their own test

Polylac® PA-763H UL Product iQ

POLYLAC® PA-763H \| UL Product iQ
File Number: E56070	Yellow Card™	Acrylonitrile Butadiene Styrene (ABS) “POLYLAC”, furnished as pellets
FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability		ANSI/UL 94
1.5 mm, Color: ALL	5VB, V-0
2.5 mm, Color: ALL	5VA, V-0
3.0 mm, Color: ALL	5VA, V-0
ISO/IEC FLAMMABILITY PROPERTIES	VALUE	TEST METHOD
Flammability		IEC 60695-11-10
1.5 mm, Color: ALL	V-0
2.5 mm, Color: ALL	V-0
3.0 mm, Color: ALL	V-0
Flammability		IEC 60695-11-20
1.5 mm, Color: ALL	5VB
2.5 mm, Color: ALL	5VA
3.0 mm, Color: ALL	5VA
ELECTRICAL PROPERTIES	VALUE	TEST METHOD
Hot-wire Ignition (HWI)		UL 746A
1.5 mm	PLC 4
2.5 mm	PLC 2
3.0 mm	PLC 2
High Amp Arc Ignition (HAI)		UL 746A
1.5 mm	PLC 2
2.5 mm	PLC 2
3.0 mm	PLC 2
Comparative Tracking Index (CTI)	PLC 2	UL 746A
High Voltage Arc Tracking Rate (HVTR)	PLC 4
Volume Resistivity	1.0E+14 ohms·cm	ASTM D257/IEC 60093
High Voltage, Low Current Arc Resistance	PLC 5
THERMAL PROPERTIES	VALUE	TEST METHOD
Relative Thermal Index – Electrical Strength		UL 746B
1.5 mm	60 °C
2.5 mm	60 °C
3.0 mm	60 °C
Relative Thermal Index – Mechanical Impact		UL 746B
1.5 mm	60 °C
2.5 mm	60 °C
3.0 mm	60 °C
Relative Thermal Index – Mechanical Strength		UL 746B
1.5 mm	60 °C
2.5 mm	60 °C
3.0 mm	60 °C
